Product Specifications
| Prod Model: |
XKP-400 XKP-450 XKP-560 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Mixing Roll |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Rolls: |
Chilled Cast Iron Roll |
| Pedestal: |
Cast or Weld |
| Three Kind Bush: |
Nylon Bush /Copper Bush/ Ball Bearing |
| Water Cooling: |
Inner Water Cooling |
Product Description
Rubber cracker machine
1. Structure
This kind of machine consists of seat, Rack, two rollers, motor, cooling system, heating system etc.
2. Uses
This machine is mainly used to crush waste tire and rubber, the structure is gear transmission
3. Features

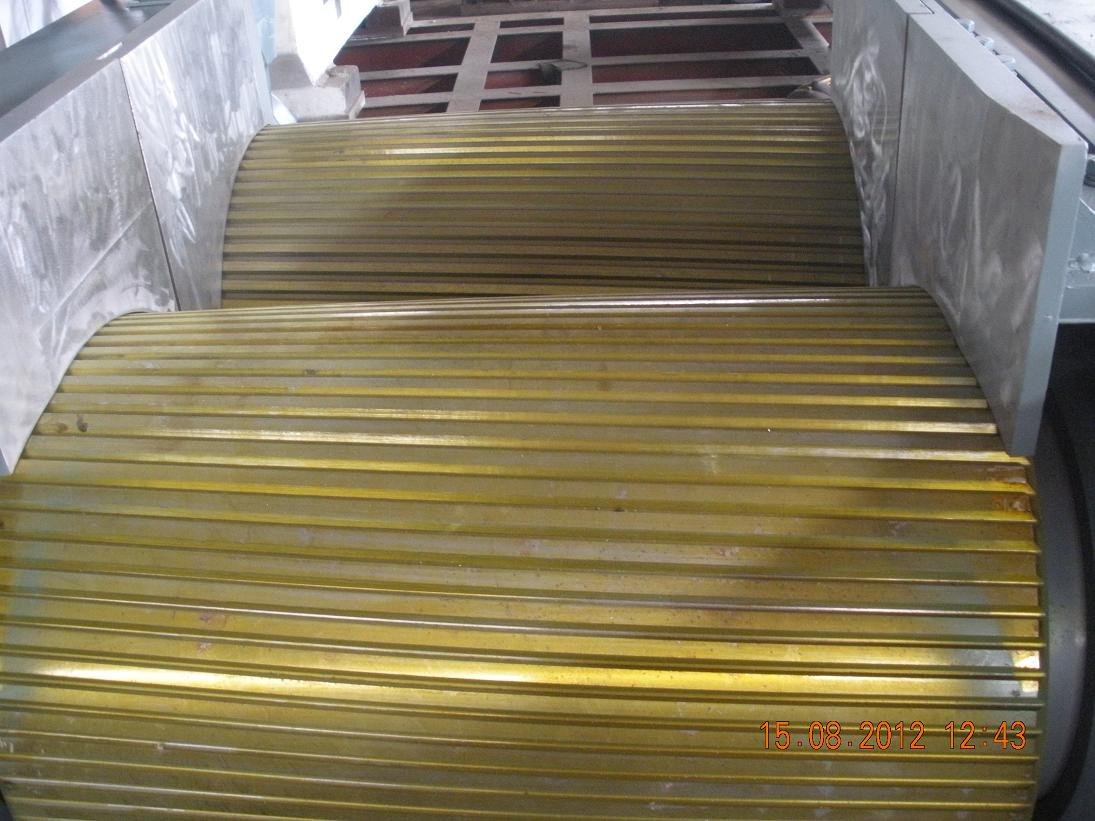

(1. )Rollers are made of chilled cast iron, which are abrasion resistant with long service life.
(2. )Rear roller is equipped with distance adjustment device, easy operation and convenience, turn the turbine to adjust the distance
(3. )Perfect emergency stop device can ensure the safety of personnel and equipment.
(4. )the seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
(5. )Human nature designed operating system reduces labor intensity
Mobile phone: 0086 15966802787
Type
Technical parameter |
XKP-400 |
XKP-450 |
XKP-560 |
Front roll diameter(mm) |
400 |
450 |
560 |
Rear roll diameter(mm) |
400(Groove roller) |
450(Groove roller) |
510(Groove roller) |
Working length of rolls(mm) |
600 |
650 |
800 |
Front roll surface speed(m/min) |
17.32 |
23.2 |
24.56 |
Friction ratio |
1: 1.38 |
1: 1.38 |
1: 1.30 |
Max. nip(mm0 |
8 |
8 |
15 |
Motor power |
45 |
55 |
75 |
Overall dimension: length× Width× Height(mm) |
3950× 1800× 1780 |
4770× 1846× 1835 |
5064× 2284× 1978 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
