Product Specifications
| Prod Model: |
XLB-500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
45# Material of Plate, Q235 Steel of Beam |
| Cylinder: |
Castb Steel Zg270-500 |
| Pistion: |
Chilled Cast Iron Material |
| Control: |
Automatic Type, Controlled by PLC Control |
| Function: |
Vulcanization of Rubber / Plastic Products |
| Internation Markets: |
More Than 30 Areas |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Certification: |
CE, ISO |
Product Description

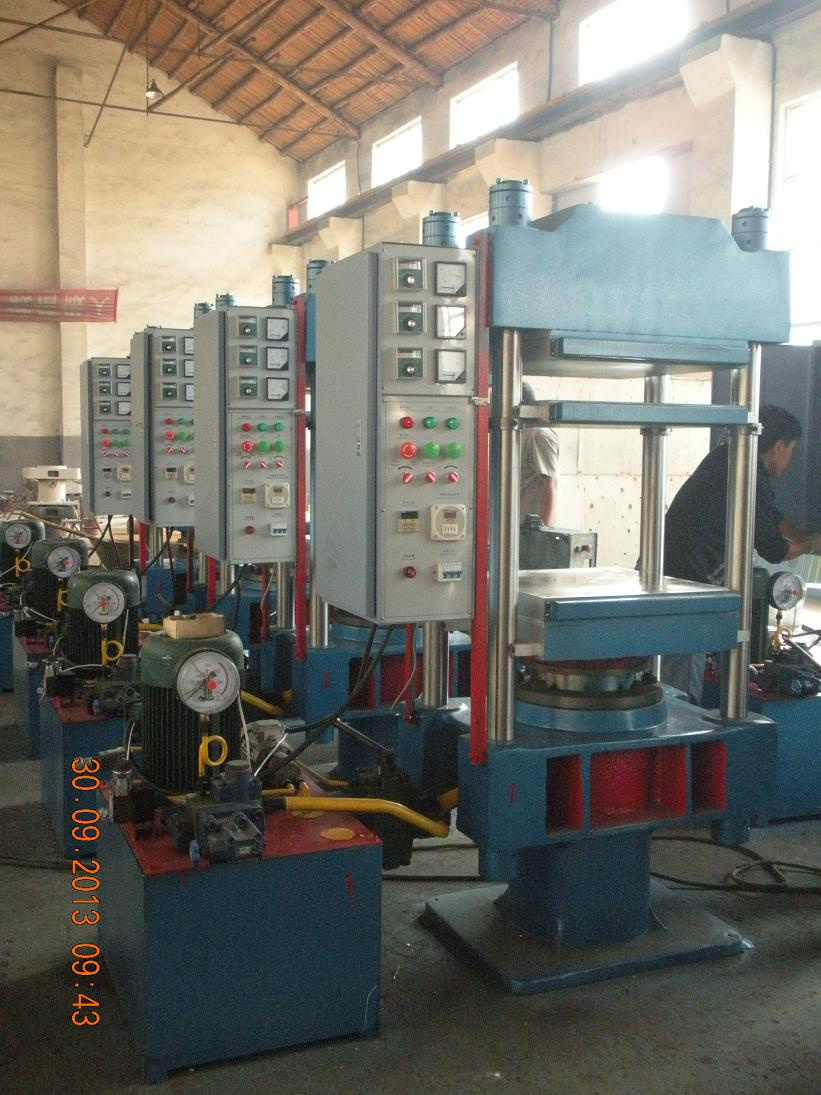

VULCANIZING PRESS MACHINE
Other name: Rubber vulcanizing press, hydraulic vucanizer, hydraulic vulcanizing press. Small curing press, large curing press. Rubber daylight press
Type: Lab vulcanizer, plate vulcanizer, frame vulcanizer, rubber tile press, vulcanizer for making rubber tire gasket, large vulcanizer, conveyor belt vulcanizer. Rubber tiles vulcanizing press. Rubber mat vulcanizer. We can offer main machine and xuailiary also.
Application: Lab use, rubber & plastic vulcanizing, rubber tiles making, rubber gasket making, conveyor belt and so on.
Features
1. Plate: 45# material, thickness 60mm, 80mm, 90mm, 100mm, 110mm.
Treatment: Heating, Shot blast cleaning, Polishing.
Smooth: 1.6um.
Pareller tolerance: 1.5mm
2. Frame: Q235 material
3. Beam and platefrom is made of 235 steel material
Welded as a wholepart
Treatment: Stewing fire to make is stronger
4. Insulation:
CaCO3 material or asbestos
5. Hydraulic cylinder
Material: ZG270-500, Keeping pressure for long.
6. Piston
Chilled cast iron, polishing treatment
Sealing system polyurethane rubber
7. Control
PLC Control system
Mobile phone: 0086 15966802787
parameters
|
XLB350*350*2 |
XLB400*400*2 |
XLB500*500*2 |
XLB600*600*2 |
XLB750*850*2 |
XLB1000*1000*2 |
|
Working layer |
2 |
2 |
2 |
2/4 |
2 |
2 |
|
Main motor power |
2.2 |
2.2
|
2.2 |
2.2 |
3 |
5.5 |
|
Heating way |
Electricity/steam |
Electricity/steam |
Electricity/steam |
Electricity/steam |
Electricity/steam |
Electricity/steam |
|
plunger stroke |
250 |
250 |
250 |
250/500 |
250 |
400 |
|
weight |
1200 |
1500 |
1700 |
2500/3100 |
3560/4300 |
8300 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
