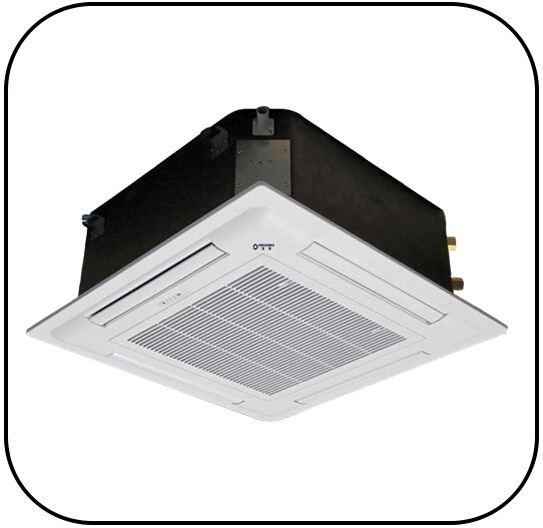

Persistence Hydronic 4 way Cassette type Fan Coil Unit(CE certified):Key Features:* Cooling capacity(kw): 1.8-13.6
* Air volume(m3/h): 340-2380
* Condensing drain pump with
lift 750mm* 2 pipes & 4 pipes is available for selection
* Auto swing
* "C"type heat exchanger,
hydrophilic blue aluminum fin is high quality for long-service life
* It is easy to maintain the fan and fan motor.
* Float switch inside to prevent from leaking
* Fresh air can be input from outdoor to better indoor air quality
* Thin design unit which can be installed in a limit ceiling(the Min. Thickness is 290mm)
* Square panels, which can be choose the direction of inlet/outlet water connection freely
* Auxiliary duct is available to send part of air to other place, in order to improve indoor temperature air equality
* Float switch inside to prevent from leaking
* The dimension of one way cassette(KM1)unit is only 570*570mm, which can be installed in a standard ceiling opening.
* The unit is easy to be installed, Low installation cost.
* CE certification and RoHS standard.
Optional:* 4 pipes system
* Four way cassette and circulation cassette for choice
* External drained part
* It is can be installed for the Electric heater
* Easily interfaced with most widely used Mod-Bus and proprieary supervisory system based on Mod-Bus protocol

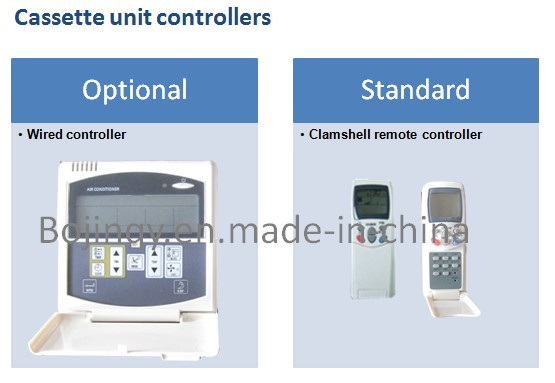

* Remote controller is standard and wire controller is optional
* Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
* Water valve can be installed already
* Grill is optional to prevent from hand injury
* 1way, 4way, 8 way air outlet for complete selection
* DC motor & EC motor

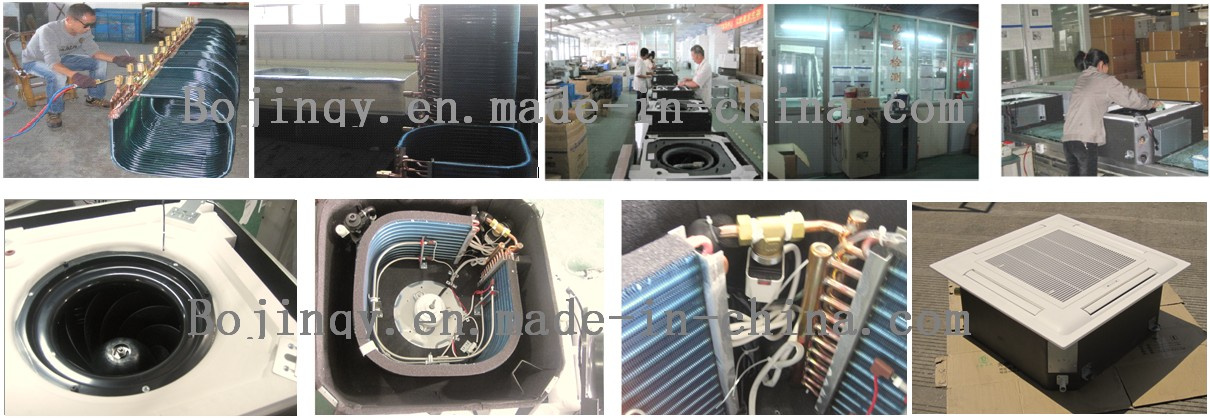

Cassette fan coil unit in details:
We're sure your any inquiry will get prompt reply!
| Model | BJFP-34KM4H | BJFP-51KM4H | BJFP-68KM4H | BJFP-85KM4H | BJFP-102KM4H | BJFP-136KM4H | BJFP-170KM4H | BJFP-204KM4H | BJFP-238KM4H |
| Air Volume | H | m3/h | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
| M | 280 | 380 | 515 | 660 | 765 | 1040 | 1280 | 1550 | 2000 |
| L | 180 | 260 | 340 | 430 | 530 | 710 | 860 | 1050 | 1600 |
| Cooling Capacity | H | w | 1800 | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | 13600 |
| M | 1500 | 2460 | 3000 | 3715 | 4423 | 6435 | 7848 | 9296 | 12780 |
| L | 1391 | 2057 | 2479 | 2921 | 3739 | 5604 | 7223 | 8534 | 11775 |
| Heating Capacity | H | w | 2700 | 4050 | 5400 | 6750 | 8100 | 10800 | 13500 | 16200 | 21615 |
| M | 1949 | 2770 | 3938 | 4902 | 5694 | 7924 | 10473 | 12997 | 19919 |
| L | 1297 | 1774 | 2779 | 3505 | 3876 | 5421 | 6992 | 8645 | 17656 |
| Noise Level | H | dB (A) | 37 | 39 | 41 | 43 | 45 | 46 | 48 | 50 | 51 |
| Power | H | w | 37 | 52 | 62 | 76 | 96 | 134 | 152 | 189 | 205 |
| Water flow | m3/h | 0.31 | 0.46 | 0.62 | 0.77 | 0.93 | 1.23 | 1.54 | 1.85 | 2.35 |
| Water resistance | kPa | 11.8 | 11.8 | 22.4 | 27 | 29.6 | 29.6 | 35.4 | 35.4 | 42.2 |
| water tube connection(inlet) | ZG3/4" |
|
| water tube connection(outlet) | ZG3/4" |
| Coil | Type | Efficient Copper tube wear hydrophilic aluminum fin |
| Condensing Drain pipe size | mm | 26 |
| Dimension |
| 590*590*270 | 752*752*293 | 822*822*263 | 822*822*293 |
| 590*590*420 | 752*752*443 | 822*822*403 | 822*822*443 |
| 650*650*45 | 850*850*45 | 950*950*45 |
| N.W(kg) |
| 19 | 20 | 23 | 23 | 25 | 28 |
| 19 | 20 | 26 | 26 | 28 | 31 |
| 2.2 | 4.5 | 6 |
Founded in 2000, Shanghai Bojin Business Development Company (Persistence) is a member of Hong Kong Armada international group, a professional Heating, Ventilation and Air Conditioning (HVAC) enterprise, owned high reputation in domestic and abroad markets. Our services are designed to help our worldwide customers with more reliable product and efficient cooperation.
BOJIN(Persistence ) headquarter office sets up in China financial center Shanghai and the factory is located at zhengjiang Provience. Factory area is around 30, 000m2, with 10 assembly lines, 8 accessory production lines. BOJIN (PERSISTENCE)possesses completed air conditioner industry chain with more than 200 employees. In addition to Bojin(Persistence) own brand products, we also accept large quantity of ODM and OEM order yearly.
Bojin(Persistence) product range is:
Fresh Air System(Heat Recovery Ventilator/ Recuperator):
A. Ceiling total heat exchanger unit
B. Vertical total heat exchanger unit
C. Energy saving ceiling type air handling unit
D. Energy saving horizontal type air handling unit
E. Energy saving vertical type air handling unit
F. Modular type total heat exchanger unit
G. Rotary type total heat exchanger unit
H. Integration Heat Pump Type Heat Recovery Unit(Horizontal)
I. Duct fresh air dehumidifier (Industrial use)
J. Ceiling concealed fresh air dehumidifier (Room use)
K. General ventilators
HVAC System(Water chilled / Hydronic / Terminal unit / Heat Pump):
A. Ceiling cassette fan coil unit with 3 kind of different air outlet: One way, four way, circulation way
B. Universal fan coil unit with 6 type for choice
C. Duct fan coil unit
D. High wall mounted fan coil unit
E. Standard air handling unit with ceiling type/vertical type/horizontal type
F. Modular air handling unit
G. Water loop heat pump
VRV/VRF Central Air Conditioning System
A. Daikin
B. Hitachi
C. LG
D. Fujitsu
E. Mitsubishi Electric
Accessory:
A. Thermostat
B. Valve
C. CO2 controller
D. Air diffuser
Welcome your inquiry at any time!
