Product Specifications
| Prod Model: |
NiceE 101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Processor Type: |
Intel |
| Type: |
Embedded Systems |
Product Description
Main Feature:
On-board Intel® Atom™ N270 Processor, 1.6GHz
Intel® 945GSE chipsets
Dual 10/100/1000 Mbps LAN ports
2 x USB2.0/VGA/DVI-D/1 x PS/2
1 x RS232/422/485 and 1 x RS232
On-board DC to DC Power Designed to Support +12V DC Power Input
Supports ATX Power Mode
Overview

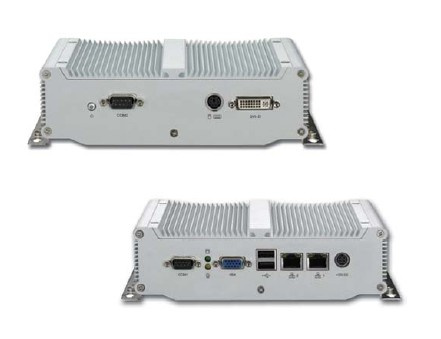

NiceE 101, a tiny industrial fanless computer housed in a size of 185mm/W x 131mm/D x 54mm/H, is a perfect match for space critical applications. Designed with Intel® Atom™ -based N270 1.6GHz processor and 945GSE embedded chipset, NICEE101 fanless PC is an energy-efficient solution in a lightweight system, featuring both performance and reliability in industrial grade non-stop system operating.
The NiceE 101 fanless computer supports one RS232, one RS232/422/485, two 10/100/1000 LAN port, two USB ports, one PS/2 for keyboard/mouse, one VGA and one DVI-D display in demand. With 12V DC input, NiceE 101 fanless PC is easy to link with DC power source or through AC/DC power adapter. Taking the low power consumption advantage, NiceE 101 is a fanless EZ Controller, nice device to work in harsh and quiet environment. With the dimension and performance features, NiceE 101 fanless computer is an idea for gate control, public information, self-service system, POS, Kiosk, low-power budget devices, LED signage and logistic system applications.
Specification:
|
CPU Support |
On-board Intel® Atom™ N270 processor, 1.6GHz, 667MHz FSB
Intel® 945GSE and ICH7M chipsets |
|
Main Memory |
1 x DDR2 SO-DIMM sockets, single channel, support up to 2GB DDR2 400/533 SDRAM, un-buffered, non-ECC |
|
I/O Interface-Front |
ATX Power on/off switch
1 x RS232/422/485
1 x PS/2 for keyboard and mouse
1 x DVI-D
1 x Speaker-out
1 x Mic-in |
|
I/O Interface-Rear |
1 x RS232
1 x DB15 VGA
2 x 10/100/1000 Intel® LAN port
2 x USB2.0 ports
+12V DC power input
HDD Access/Power status LEDs
1 x Antenna hole |
|
Device |
1 x 2.5" HDD drive bay
1 x internal CF card socket
1 x Mini-PCIe socket |
|
Power Requirements |
+12V DC input
Optional external 60W AC/DC lockable power adapter;
Power input: 100 to 240V AC 2A 50/60Hz;
Power output: 12V DC |
|
Dimensions |
185mm(W) x 131mm (D) x 54mm (H) (7.28" x 5.2" x 2.13" ) |
|
Construction |
Aluminum chassis with fanless design |
|
Environment |
Operating temperature:
Ambient with air flow: -5° C ~ 55° C
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage temperature: -20° C ~ 80° C
Relative humidity: 10% to 93% (Non-Condensing) |
|
Certifications |
CE approval
FCC Class A |
|
