| Supplier: | Huizhou Dayawan Fox Etech Limited |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,EXW,CIF |
|
|
| Prod Model: | IPC-NFN45 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling System: | Full Enclosed and Fanless, Cooling by Chassis |
| Memory Capacity: | 2GB |
| CPU: | AMD |
| GPU: | Intel |
| Memory Type: | DDR3 |
| Use: | Commercial |
| CPU Frequency: | 1.5-2.0GHz |
| HDD Capacity: | 8GB Msata SSD |
| Drive Type: | USB DVD-ROM |

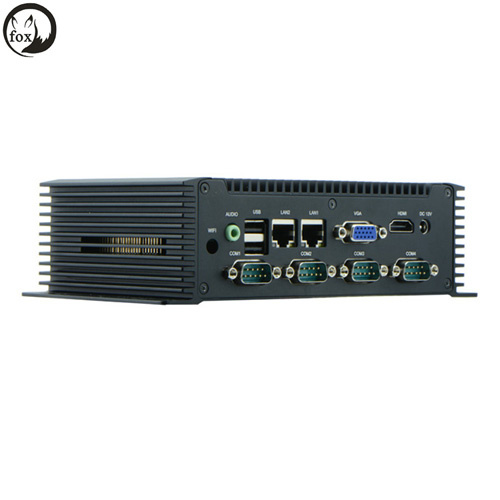

| Model No. | IPC-NFN45 |
| Motherboard | EPIC-N45 |
| CPU | AMD T56N Dual core 1.65GHz |
| Chipset | AMD Hudson M1 chipset |
| System Memory | 1* SO DDRIII Memory Slot,Support 1066/800 Memory, Max. up to 4GB |
| Graphics | Integrated Intel® GMA3600 Graphics ,Providing VAG/ HDMI display output |
| Storage | 1* 2.5'SATA |
| 1* MSATA , Supports SSD | |
| Network | Integrated 2*Realtek Gigabit LAN chip,Supports Wake-on-LAN /PXE |
| Wireless Network | 1* Mini-PCIE,supports WIFI |
| Front Panel Port | 2* USB 2.0 |
| 1* PWR and RST switch | |
| 1* PWRLED and HDDLED | |
| Rear Panel Port | 4* COM |
| 1* Line out(green) | |
| 2* USB 2.0 | |
| 2* LAN | |
| 1* VGA | |
| 1* HDMI | |
| 1* DC_12V IN | |
| 1* WIFI antenna port | |
| Cooling System | Full enclosed and fanless ,cooling by chassis |
| Operating Temperature | -0°C~50°C |
| Storage Temperature | -20°C~70°C |
| Operating Humidity | 5%-95%(relative humidity; non-condensing) |
| Anti-vibration | 5~400Hz/random operating |
| Form Factor | 172*107*54mm (L*W*H/mm) |
| Power Input | DC_12V single power input |
| Installation | Desktop or wall mounting |
| Material and craft | Sandblasting oxidation process (Black) |
