Product Specifications
| Prod Model: |
GW-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
Without Power Supply |
| Material: |
Aluminum |
| Color: |
Black |
| Compatible Mainboard: |
ITX |
| Type: |
Horizontal |
Product Description

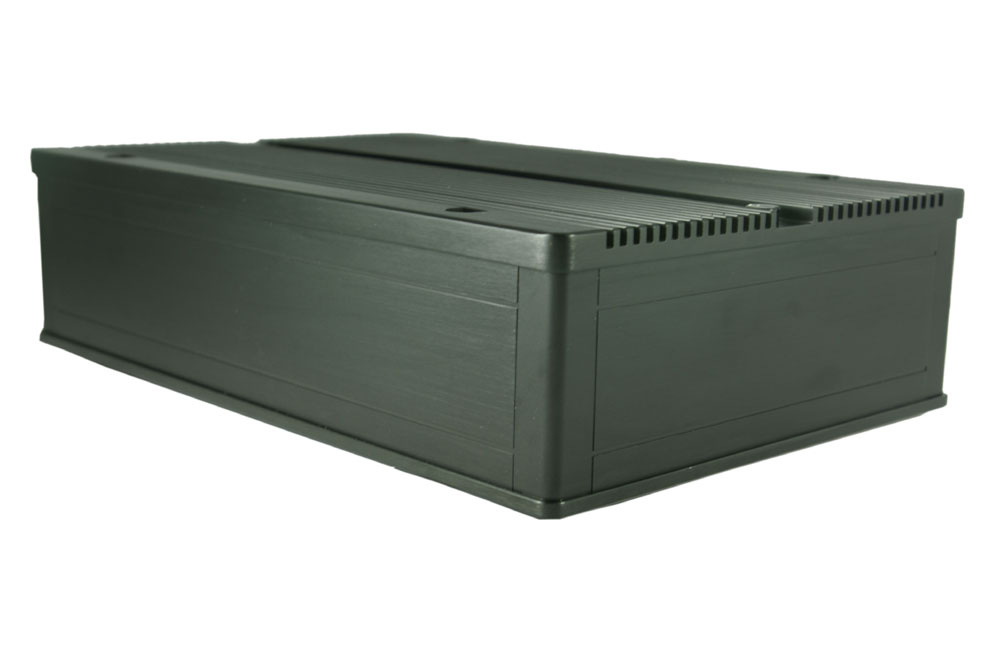

Fanless Waterproof Mini-ITX, Ruggedized Mini ITX Case, Car PC Case (IP67): GW-01
The GW-01 is an IP67-rated fanless Mini-ITX case that is completely ventless and securely sealed on all six faces. Totally submersible, the GW-01 is the solution for industrial or commercial settings that require a fully ruggedized, durable computer system able to withstand the harshest conditions. The case uses watertight headers that are attached to the case and house the I/O connectors (LAN, VGA, USB, RS-232 COM, and power). Watertight cables are screwed into the headers providing a secure seal. Compact, mountable, and solid state configurable, the GW-01 offers a wide range of opportunities for industrial computing.
-1) Features:
1. Complete aluminum housing, passive cooling. 2. Work with all Mini-ITX mainboards. 3. Capable of installing a network card for real-time wireless inter-connectivity. 4. With no fans, vent-less and sealed on all six faces, anti-vibration, the systems can operate in environments where dust, rain, dirt, harsh, and splash (IP67 rated). 5. The GW-01 chassis is perfect for navigation, multimedia, digital signage, automation, Car PC, gaming, medical and outdoor fields, etc.
-2) Specification
Material of Housing: Aluminum
Color: Black
Dimensions(WxDxH): 7.52" x 11.73" x 2.90", 191 x 298 x 73.5mm
Hard Drive Bay: 1x2.5" HDD
Mainboards: All Via EPIA mainboards, Intel D201GLY, Intel D945GCLF M/B,
Jetway J7F2WE, Jetway J7F5 M/B, etc...
Optical Drive Bay: N/A
Expansion Slot: N/A
Front Access: N/A
Back Access: USB2.0 port, RS232 COM port, VGA port, LAN port, DC in port.
(Watertight Plug x4PCS)
Cooling System:
- Heat sink/heat pipe combination on mainboard,
- Chassis fins, Maximum operating environment 40oC
Power Supply: Wide input(6V-30V) intelligent automotive DC-DC car PC power supply
-3) Case include:
Heat sink/heat pipe combination for mainboard
Heat paste
Screws
Wide input(6V-30V) intelligent automotive DC-DC car PC power supply
Watertight pug x4PCS and external cables x 4PCS(L=1.5M)
Wall-mounting bracket (optional)
