Farm Camera System with Waterproof IP69k (DF-5270213)
Product Specifications
| Prod Model: |
DF-5270213 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
400CD /M2 |
| Waterproof: |
IP69k |
| Load Dump: |
DC14+87V(Td400ms) |
| Free Viewing Angle: |
130 Degree |
| Type: |
Monitoring System |
| Application: |
Sound Monitoring |
| Feature: |
Vandal-proof |
| Video Capture System: |
Video Camera |
| Software Function: |
Monitoring |
| Software Usage: |
Vehicle Monitoring Software |
| Client Software: |
Without Client Software |
| Sensor: |
CCD |
| Kind: |
Autofocus Lens |
| Technology: |
Infrared |
| Horizontal Resolution: |
420tvl |
Product Description

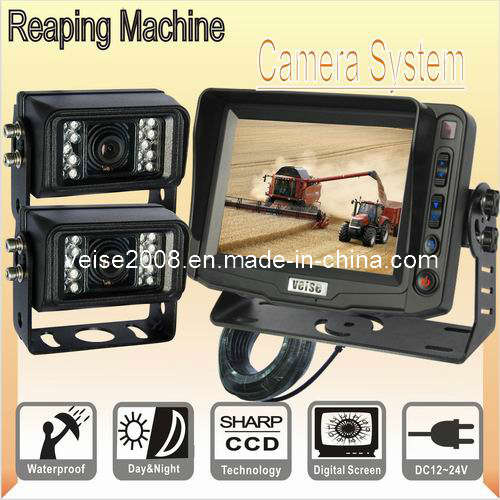

*5" Digital Screen TFT LCD Monitor for Farm CCTV Security Camera Systems, On-Screen Menu for All Settings: Normal/Mirror view, Reversing Image Delay, *Priority of Reverse Camera, Automatic switch ON (by reverse gear and or by direction lights)and Built-in CDS Sensor for Illumination of the Control Knobs
*Farm CCTV Cameras with 6PCS LEDs for night vision
*Free Operating Voltage DC11-32 Volts Farm CCTV Systems
Farm CCTV Security Camera Systems Specification
Farm CCTV Camera( MODEL: DF-8083*3 )
Image Type: 1/3 Color SHARP CCD
Horizontal Resolution: 420TV Lines
Effective pixel: NTSC: 510(H)X492(V); PAL: 500(H)X582(V)
Usable Illumination: 0Lux (6PCS LEDs for night vision 10M )
Free viewing angle: 130 °
Waterproof: IP68
Shockproof: 10G
Video Output: 1.0Vp-p75Ω
Power supply: DC12V from Reversing Monitor
Dimensions: 69(W) x 43(H) x 38(D) mm (without mounting)
5 Inches TFT LCD Farm CCTV System Monitor (Model: SP-527)
5" Digital Screen TFT LCD Monitor with Removable Sun Visor
Setting up the camera image normal or mirror
With three video input, set up the priority of reverse camera
Setting up the reversing image delay time: 0-30"
Responsing time less than 2" when reversing
Color System: PAL/NTSC
Display Resolution: 960(H) X 234(V) DOT
Wide view angle(CR>10): (up/ down): 45/65 (left/right): 65/65
Brightness (CD/m2): 300
Contrast ratio: 500: 1
Back-light: Single LED
Operating temperature: -20º C to +70º C
Storage temperature: -30º C to +80º C
Power suply: DC11~32V
External dimensions: L*W*T(150X118X23)mm
Weight Approx: 279g
Product Accessories
Monitor bracket, 15m cable, Electrical connecting cable, Auto cigarette lighter. |
Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.
Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.
Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.
Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.
Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.
Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
