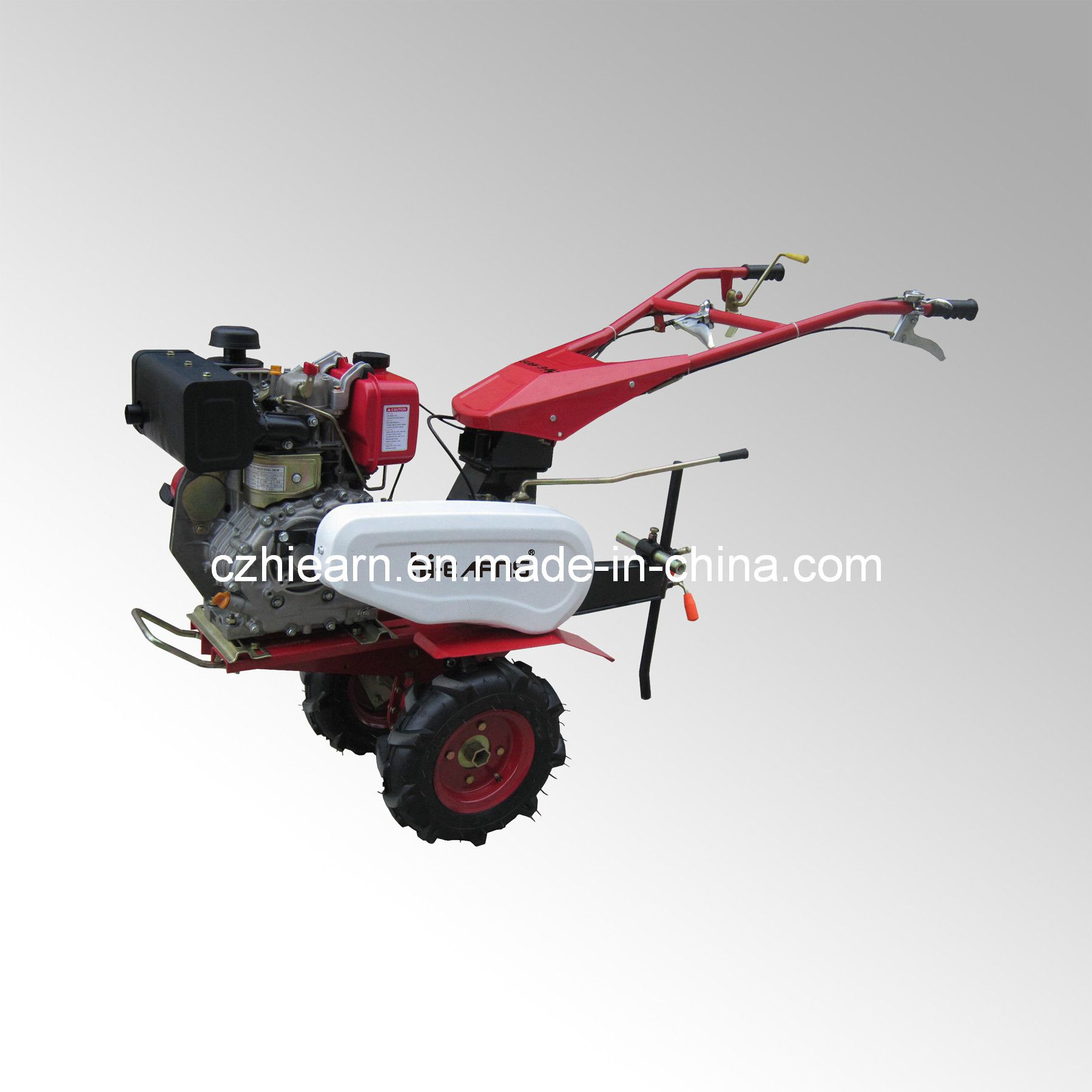

Farm Machinery Diesel Engine Cultivator (HR3WG-5)
Product Specifications
| Prod Model: |
HR3WG-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Model: |
186f |
| Engine Power: |
9HP |
| Designed Speed: |
Fast: 130; Slow: 190 |
| Blade Diameter: |
360mm |
| Type: |
Rotary Tiller |
| Power Source: |
Diesel |
| Application Field: |
Agriculture |
| Operation: |
Soil Preparation Machinery |
| Farming Policy: |
Dry Cultivating Machinery |
Product Description
Rotavator (Tiller)
1. The rotavator use belt pulley convey, the head can be rotated 360 degrees, walks in the field very convenient.
2. About the spare parts, we have resistance rod, rotary blade, iron tyre, weed wheel, seeding-machine, hoe, colter boot and swivel plough.
|
HR3WG-5 |
|
|
Item |
Unit |
Standard |
|
1 |
Engine |
Model |
/ |
186F |
|
Rated power |
KW |
6.3 |
|
Engine speed |
r/min |
3600 |
|
2 |
Power tiller |
M. T |
mm |
1780*1200*800 |
|
Weight |
kg |
140 |
|
Displacement |
ml |
406 |
|
Working width |
cm |
120 |
|
Working depth |
cm |
≥ 10 |
|
Working speed |
m/s |
0.1-0.3 |
|
Hour production |
hm² /h@ m |
≥ 0.04 |
|
Fuel consumption |
kg/hm² |
≤ 25.0 |
|
Drive way |
/ |
Gear |
|
Connection method |
/ |
Belt pulley |
|
3 |
Roll turning |
Designed speed |
r/min |
Fast: 130; Slow: 190 |
|
Blade diameter |
mm |
360 |
|
Total number |
Piece |
24 |
Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.
Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.
"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
