Product Specifications
| Prod Model: |
FEK-06M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Crimping Range: |
50mm2 |
| Air Pressure Range: |
0.5-0.7MPa |
| Output: |
2.0t |
| Overall Dimension: |
286*125*165mm |
| Weigt: |
4.8kg |
| Precision: |
High Precision |
| Demoulding: |
Pull Core |
| Mould Life: |
<300,000 shots |
| Warranty: |
12 Months |
| Customized: |
Customized |
| Condition: |
New |
| Automatic Grade: |
Semiautomatic |
| Heating System: |
Pneumatic |
Product Description

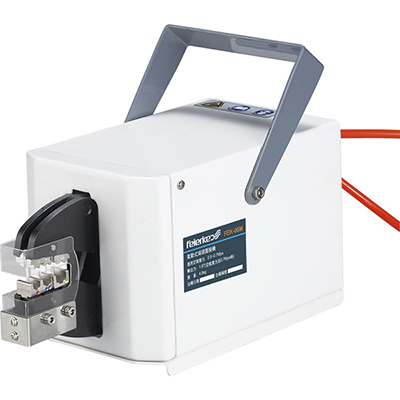

The machine is driven by dual-action normal cylinder, which has advantages of high efficiency and quality in crimping force and speed. The machine is fit for crimping many kinds of terminals. The die sets are interchangeable with our manual crimping tools. So we can provide you all kinds of die sets for crimping.
Accessories: One die sets, one foot air valve, two aire pipes.
The using methods of Pneumatic Type Terminal Crimping Tool and Equipment:
1. Put the terminal in relevant die sets firstly.
2. Then put the stropper insulated conductor into the terminal, push the foot aire valve, loose it after crimping well.
3. Cut off gas supply. Dismount the fit bolts on the clamp with the L spanner.
4. Replace a desire die sets and screw down the bolt again.
The performance of Pneumatic Type Terminal Crimping Tool and Equipment
Item NO. FEK-06M
Capacity 50sqmm
Air Pressure Range 0.5-0.7Mpa
Output 2.0T
Overall Dimension 286mm*125mm*165mm
Weight 4.8KG
FAQ
FAQ
Q 1. What's the terms of payment?
A. If the total amount is less than USD10, 000.00, the terms of payment should be 100% T. T in adivance. If the total amount is more than USD10, 000.00, it should be 30% deposit, balance before shipment.
Q 2. How's the delivery time?
A. Usually it will be about 20days after receiving the deposit. For the details, it should be based on the products and the quantities you ordered.
Q 3. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do OEM.
Q 4. Where is your market?
A. China, Europe, the USA, South America, Middle East, Southeast Aisa, all over the world.
Q 5. Do you have any requirement for the MOQ?
A. If there is no special requirement for the packing, there is no requirement for the minimum order quantity, but the minimum order amount per order should be US$3, 000.00. Otherwise, the customers are required to pay the additional bank fee and Customs fees US$100.00 per order.
|
Item NO. |
FEK-06M |
|
Capacity |
50sqmm |
|
Air Pressure Range |
0.5-0.7Mpa |
|
Output |
2.0T |
|
Overall Dimension |
286mm*125mm*165mm |
|
Weight |
4.8KG |
The company are devoted to developing, producing and selling high-class electrical tools. They strive to become the leading professional manfacturer for electrical tools with high effective responsiveness to provide professional service support and best solutions for global customers.
