Fast Delivery Large Automated Truck Baking Room

Name: Fast Delivery Large Automated Truck Baking Room
Brand: china-manufacturer-directory.com
SKU: 619798232
Availability: InStock
Rating: 4.5 (108 reviews)

Supplier:	Guangzhou Yoki Machinery Import & Export Co., Ltd.
Price:	US $ 14400-18720/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YS-09-45
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ventilation:	Downdraft Airflow Way
Air Intake:	2 X7.5kw Double-Intake Centrifugal Fans
Air Exhaust:	1X11kw Double-Intake Centrifugal Fan
Heating:	Riello Rg5s Diesel Burner
Voltage:	1X220V,3X380V,Your Special Voltages Are Accepted
Optional Colour:	White, Blue, Orange and Red
Port:	Huangpu Port or by Your Order
Main Products:	Spray Booth, Prep Station, Infrared Curing Lamps
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Certification:	CE
Condition:	New
Airflow Direction:	Downdraft Airflow Way

Product Description

Model:YS-09-45
Inside dimention:9200*4500*3500mm L*W*H
Any Size Requirements Can Be Met.
applied for large cars spraying

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

Inside dimension	9200 × 4500 × 3500 mm ( L × W × H )
Outside dimension	9344 × 6396 × 4100 mm ( L × W × H )

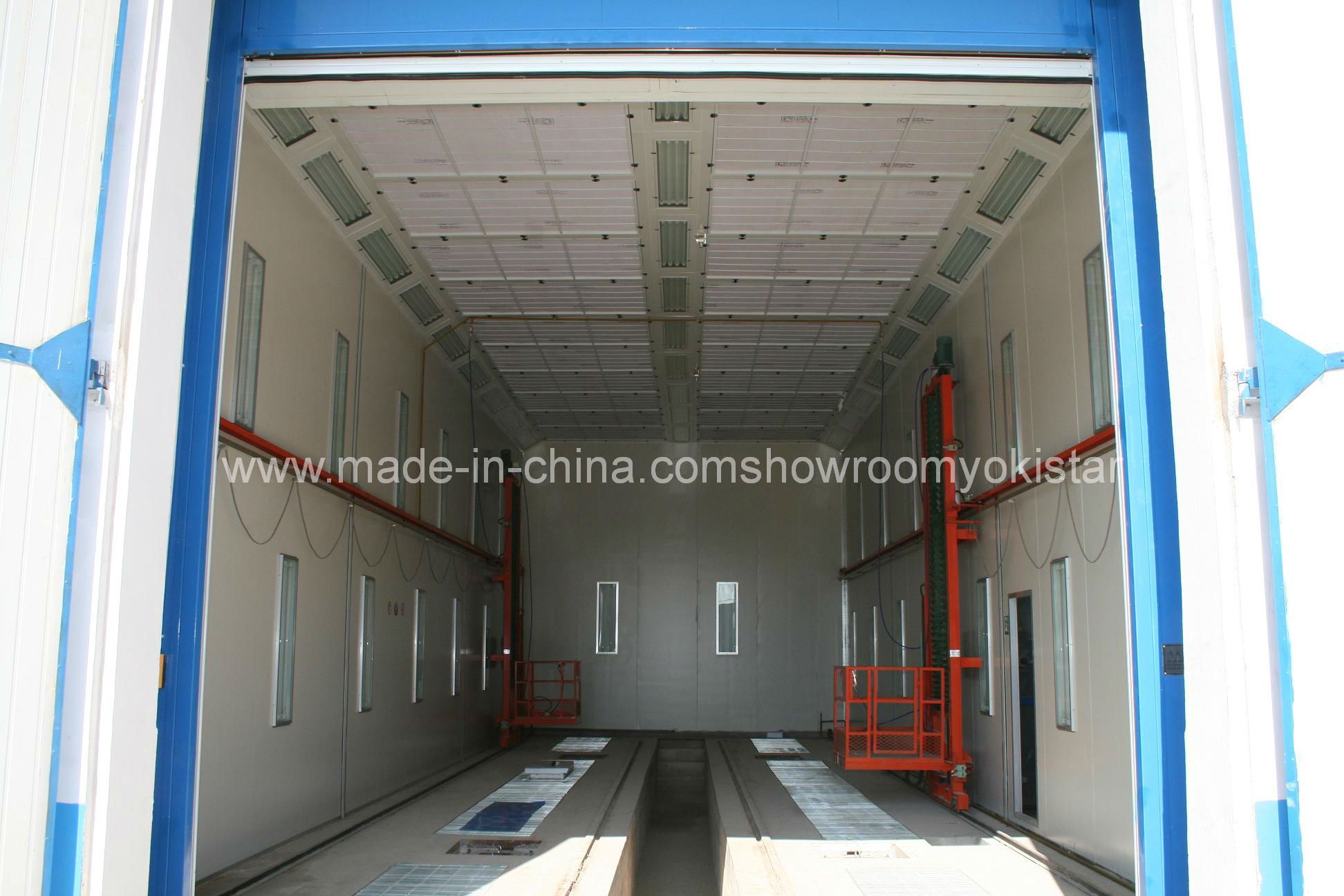

Pit	2 rows of pits in the ground for exhaust air. dimension of each pit is 6900 × 760mm (L × W), with galvanized grilles made by twisted steel and flat bar above.

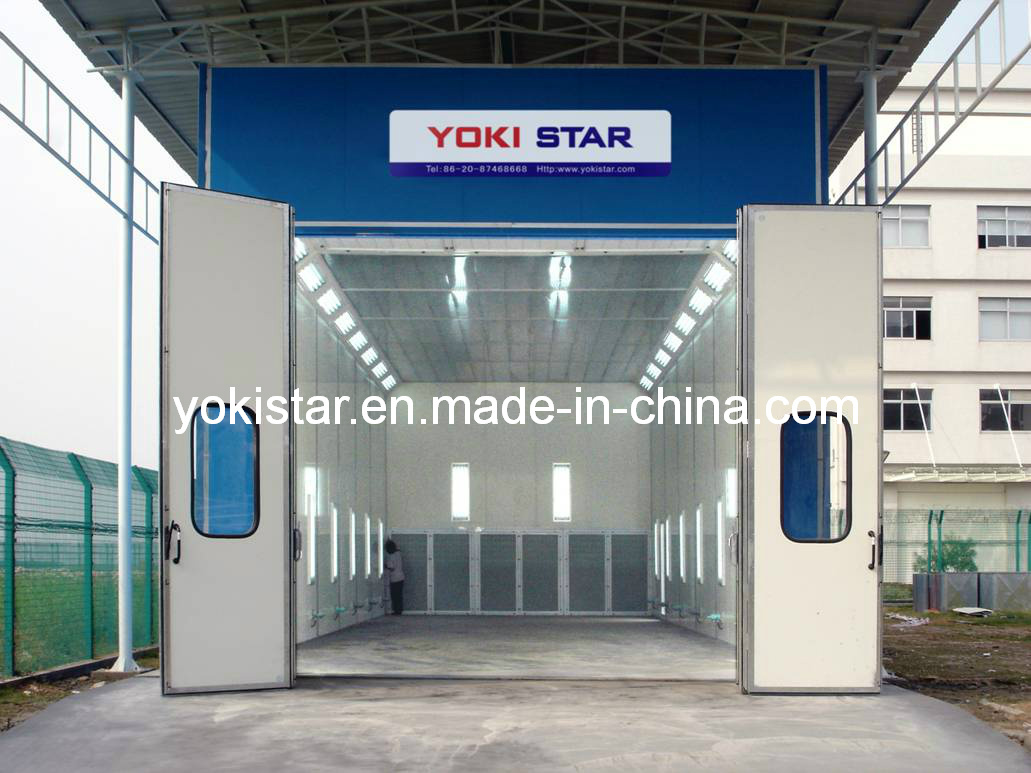

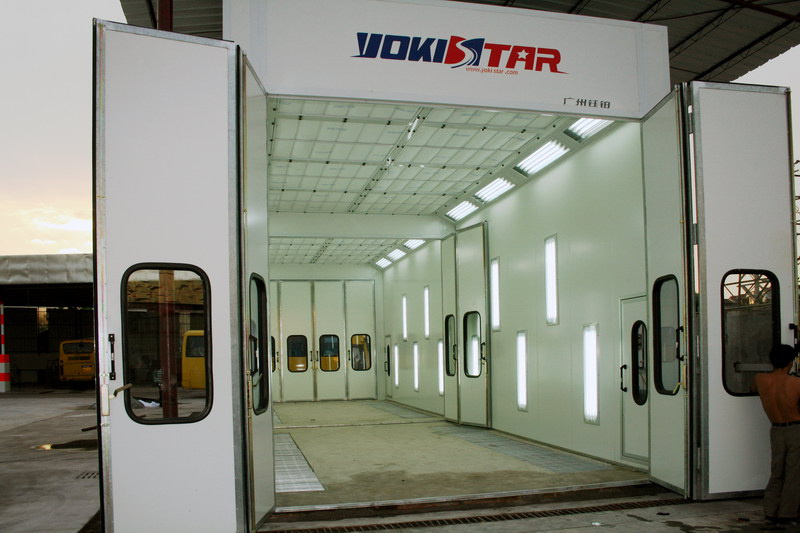

Main door	Folding door, 3-folds, 3500 × 3400mm (W × H), galvanized steel frame, with polystyrene(EPS) inside, colour: blue
Escape door	1 fold, 800 × 2000 mm (WXH), colour: white
Room body	Profiled bar beams in the roof to strengthen the room body; wall panel thickness: 70mm, width: 1150mm, tongue and groove structure, 0.426mm colour steel with polystyrene(EPS) insulation inside, colour: white
Lighting system	Ceiling Lights: 12Units× 4Pcs=48Pcs× 36W, with electronic ballasts. Side Lights: 12Units× 4Pcs=48Pcs× 36W, with electronic ballasts, vertically set
Generator setting	Intake air from side upper direction, exhaust air from back upper direction, quadrate steel frame, outside is white coated steel, inside is galvanized steel, filled with heat preservation material in the middle
Intake and exhaust air system(1 unit)	2 × 7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, air capacity is 21000m 3 /h for each fan;
Intake and exhaust air system(1 unit)	1× 11KW double-intake centrifugal fan for exhaust air, with motor outside, belt-drive, model TAE-710H, air capacity is 36000m3/h. Equip manual damper for exhaust air.
Heating system(1 unit)	RIELLO RG5S oil burner, heating productivity: 260000 Kcal/h, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle.
Filtering system	Pre-filter, high efficiency filter(ceiling filter), exhaust fiberglass fiter, activated carbon filter.
Roof Plates	50mm thick EPS heat preservation panels
Control bo x	Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. Exhaust star-delta motor start.

Guangzhou YOKI Machinery Import & Export Co., Ltd. (YOKI STAR for short) is specialized in spray booths, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.

Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).

As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.
