Product Specifications
| Prod Model: |
DW-SWG-T8 |
| Markets: |
North America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
| Item: |
8 Port Network Switch |
| Communication Mode: |
Full-Duplex & Half-Duplex |
| Kinds: |
Unmanaged |
| Function: |
Lacp, Qos, Snmp, Stackable |
| Chipset: |
Rtl8370n |
| Product Size: |
159*80*27mm |
| Color: |
White/ Black |
| Include: |
Power Adapter |
| Type: |
Wired |
| Transfer Rate: |
10/100/1000Mbps |
| Ports: |
8 |
| Application: |
SOHO |
Product Description

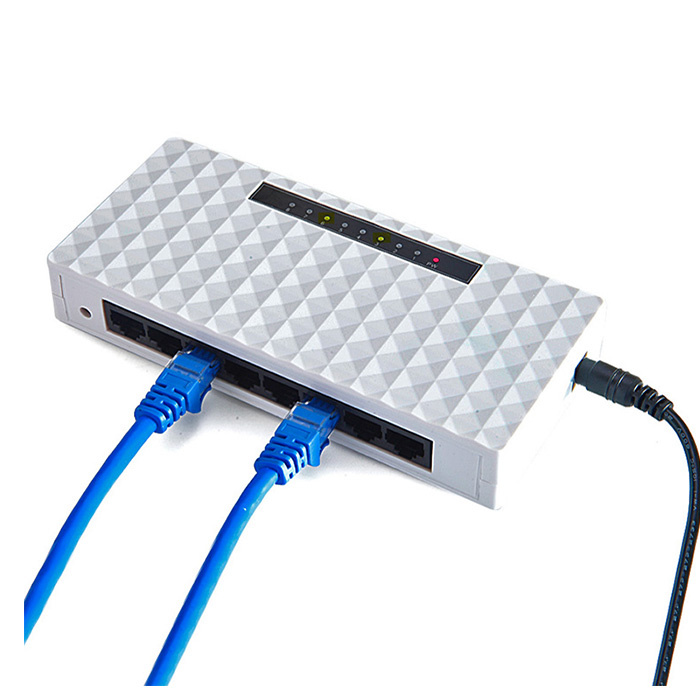

Fast ethetnet 10/100/1000mbps 8 port Network Switch
Features:
l Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
l Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
l Auto-MDI/MDIX eliminates the need for crossover cables
l Supports MAC address auto-learning and auto-aging
l Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
l Fanless design ensures quiet operation
l Desktop or wall-mounting design
l Plug and Play design simplifies installation
Specification:
Hardware Features |
INTERFACE |
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
EXTERNAL POWER SUPPLY |
100~240VAC, 50/60Hz |
DIMENTIONS(W×D×H) |
178*80*27mm |
Software Features |
TRANSFER METHOD |
Store and Forward |
ADVANCED FUNCTIONS |
Green Technology, saving power up to 70%
802.3X Flow Control, Back Pressure
Auto-Uplink Every Port |
Others |
CERTIFICATION |
CE, FCC |
PACKAGE CONTENTS |
8-Port 10/100/1000Mbps Network Switch
Power Adapter |
ENVIRONMENT |
Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing |
Packaging contains:
1* 8 Port 10/100/1000M Switch
1* 5V 1A Power supply
