Fast Reading Display Digital Flow Meter

Name: Fast Reading Display Digital Flow Meter
Brand: china-manufacturer-directory.com
SKU: 686112412
Availability: InStock
Rating: 4.8 (92 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

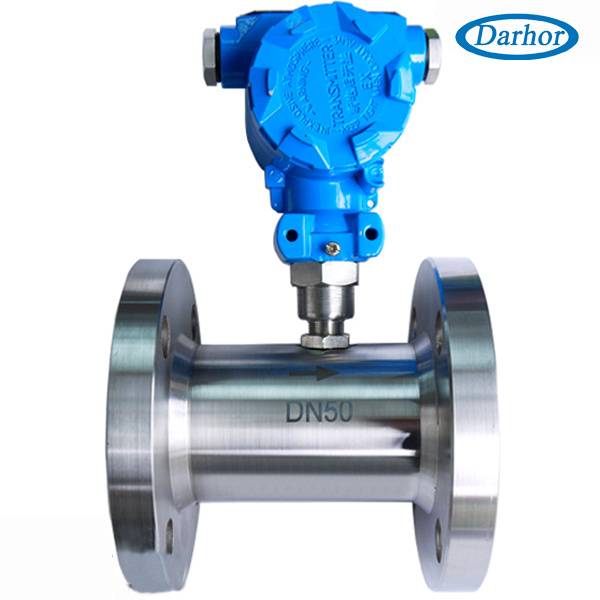

Model DH500 turbine flow
Adapts to measure the liquid rate and total flowrate of low viscosity. It can be widely used in the fields of Petrol, Chemical industry, Metallurgy, Scientific research for measuring or control. Several output and display methods can be selected.

Feature
Hi-Accuracy 0.2%, 0.5%, 1% optional
Wearable Tungsten carbonized shaft and bearing, be the same with the medium of sully
Erode-resistant Be the same with sea water, ammonia, acetometer, etc.
Bi-direction Measuring bi-direction flow (optional)
Multi-output Pulse, 420mA DC, total and rate display in the field
Power supply 524V DC
Explode-proof Ex dBT4
Spectrum 2*, 4*, 6, 10, 15, 25, 40, 50, 80, 100, 150, 200, 250, 300mm

Specifications:

DN (mm)	Flow range (m3/h)						Medium temp. ()	PN (MPa)	Env. Temp. ()	Ppressure loss (MPa)
	Error 0.2%*		Error 0.5%*		Error 1.0%*
	Min	Max	Min	Max	Min	Max
2A*					0.03	0.16	-20 +120 (150*)	6.3	-25 +55	0.12
4A*					0.04	0.25		6.3		0.12
6A					0.1	0.6		6.3 16* 25* 40*		0.08
10A					0.2	1.2				0.05
15A			0.6	4	0.6	6				0.035
25A			1.6	10	1	10				0.035
40A	3	20	3	20	2	20		2.5		0.025
50A	6	40	6	40	4	40
80A	16	100	16	100	10	100
100A	25	160	25	160	20	200		1.6 OR 2.5
150A	60	400	50	300	40	400
200A			100	600	80	800
250A			160	1000	120	1200		1.6
300A			260	1600	180	1800		1.6

Prod Model:	DH500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Liquid, Oil
Model:	Dh500
Brand:	Darhor
Output:	4-20mA, Pusle
Keywords:	Digital Flow Meter
Connection:	Flange, Thread
Material:	Ss304, Ss316
Power:	24VDC or Battery
Pressure:	1.6mpa, 2.5mpa
Display:	LCD
Sensor:	Tube/Flange
Type:	Turbine Flow Meter
Accuracy:	>?à1%
Measuring Media:	Liquid
Principle:	Variable Area Type
Measuring Principle:	Atomic Physics
Size:	Dn2-Dn200
