Product Specifications
| Prod Model: |
ZK200C ZK300C ZK400C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Rectifier Diode |
| Manufacturing Technology: |
Discrete Device |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
SMD |
Product Description
1. Total diffusion process
2. Ceramic disc type seal
3. Excellent dynamic characteristic
4. Double-sided cooling
5. CE, ISO, RoHS
Features
Total diffusion process
Central trigger
Ceramic disc type sealing
Double-sided cooling
|

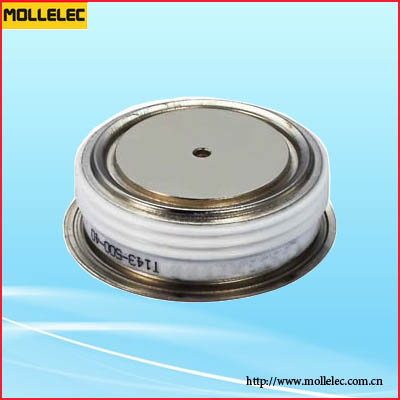

Fast Recovery Diode (Capsule Type) |
Features
Total diffuse process
Short recovery time
Low reverse recovery charge
Fast soft recovery features
Ceramic disc type seal
Double-sided cooling
|
Typical application
Motor control
Induced heating
UPS power
Chopper
Welders |
Explanation
I 2 t=I 2 FSM ×t W /2:t W =Half sine wave current when at 50HZ
I 2 t=0.005I 2 FSM (A 2 S) FSM
When at 60HZ I FSM (8.3ms)=I FSM (10ms)×1.066,T j =T jm
I 2 t(8.3ms)=I 2 t(10ms)×0.943,T j =T jm |
|
|
|
|
Type |
V RRM |
I F(AV) |
t rr |
Q rr |
I FSM |
I RRM |
V FM /I FM |
R th(j-hs) |
T jm |
M 2 |
Outline |
|
|
T HS 55°C |
100°C |
|
10ms |
|
25°C |
|
|
|
|
V |
A |
μs |
μc |
kA |
mA |
V/A |
°C/W |
°C |
kN |
|
ZK200C |
200-3000 |
200 |
2 |
70 |
2.7 |
16 |
2.1/600 |
0.090 |
150 |
3.3-5.5 |
E1/E2 |
|
ZK300C |
200-3000 |
300 |
3 |
100 |
4.1 |
30 |
2.3/900 |
0.065 |
150 |
5.3-10 |
E2 |
|
ZK400C |
200-3000 |
400 |
3 |
100 |
5.4 |
40 |
2.3/1200 |
0.040 |
150 |
10-20 |
E2/E3/E5 |
|
ZK500C |
200-3000 |
500 |
3 |
120 |
8 |
40 |
2.3/1800 |
0.033 |
150 |
10-20 |
E2/E3/E5 |
|
ZK800C |
200-3000 |
800 |
3 |
130 |
10 |
40 |
2.5/2400 |
0.033 |
150 |
10-20 |
E5/E6/E8 |
|
ZK1000C |
200-3000 |
1000 |
4 |
150 |
13 |
50 |
2.5/3000 |
0.030 |
150 |
15-20 |
E8 |
|
