| Supplier: | Hangzhou Tuozhi Electronic Co., Ltd |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB |
|
|

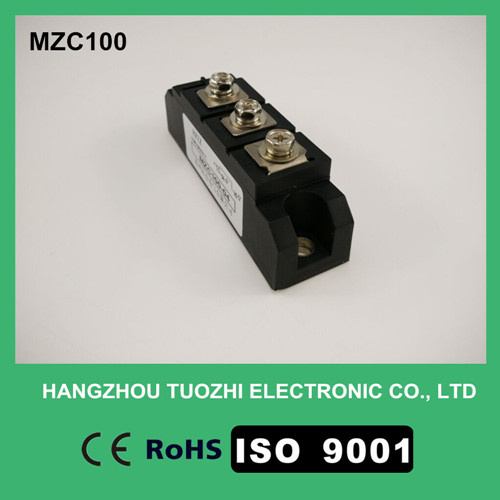

| Prod Model: | MZC100 |
|---|---|
| Enter Attribute Here (e.g.: Size): | Enter Value Here (e.g.: 12 Inches) |
| Symbol | Definition | Test condition | Junction temp. Tj (ºC) | Value | Unit | ||
| Min | Typical | Max | |||||
| IF(AV) | Average on-state current | 180°sine half-wave, 50hz single-sided heat dissipation, Tc=85ºC | 150 | 100 | A | ||
| IF(RMS) | RMS current | 150 | 173 | A | |||
| VDRM VRRM | Off-state repetitive peak voltage Reverse repetitive peak voltage | VDRM&VRRM tp=10ms VDSM&VRSM=VDRM&VRRM+200V | 150 | 600 | 1600 | 1800 | V |
| IDRM IRRM | Off-state repetitive peak current Reverse repetitive peak current | VDM=VDRM VRM=VRRM | 150 | 5 | mA | ||
| IFSM | On-state non-repetitive surge current | 10ms bottom width, sine half-wave | 150 | 2.6 | KA | ||
| I2t | surge current average time integration | VR=0.6VRRM | 150 | 34.4 | 103A2S | ||
| VFO | threshold voltage | 0.8 | V | ||||
| rF | slope resistance | 150 | 1.65 | mΩ | |||
| VFM | On-state peak voltage | ITM=100A | 25 | 1.1 | 1.2 | V | |
| trr | Reverse recovery time | 25 | 100 | ns | |||
| Rth(j-c) | thermal impedance junction to case | 180°sine half-wave, Single-sided heat dissipation | 0.35 | ºC/W | |||
| Rth(c-h) | thermal impedance case to heatsink | 180°sine half-wave, Single-sided heat dissipation | 0.2 | ºC/W | |||
| Viso | Insulation voltage | 50HZ, R.M.S, t=1min Iiso:1Ma(max) | 2500 | V | |||
| Fm | mounting torque(M5) mounting torque(M6) | 2.0 3.0 | N·m N·m | ||||
| Tsbg | Storage temperature | -40 | 125 | ºC | |||
| Wt | weight | 135 | g | ||||
