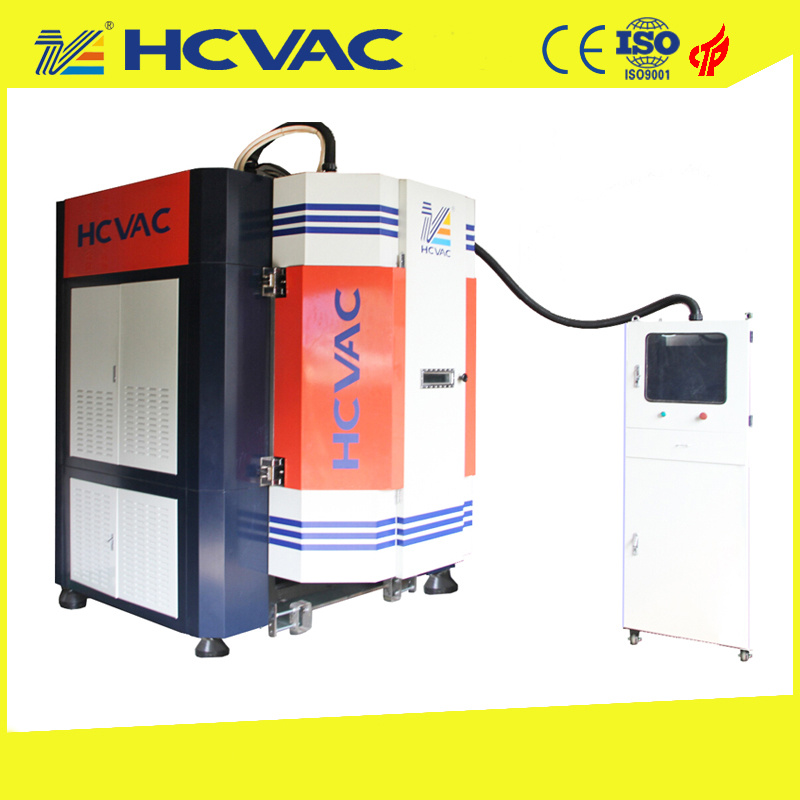

Faucet Titanium Coating Machine, Titanium Nitride PVD Coating Equipment for Bathroom Accessories

Product Specifications

Prod Model:	HC-
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type 1:	Sanitary PVD Coating System
Name:	Faucet Coating Machine
Structure:	Vertical, Single Door
Coating Film:	Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc.
Coating Color:	Gold, Rosegold, Silver, Black, Blue, Ect
Operating System:	PLC Touching Screen Automatic Control
Service:	Installment, Training, After Sale Service
Coating Material:	Stainless Steel, Metal Alloy, Ceramic, Glass etc.
Coating Technology:	Magnetron Sputtering+Arc Ion Coating
Brand:	Hcvac, Dongguan, China
Coating:	Vacuum Coating
Type:	Sanitary PVD Coating System
Substrate:	Sanitary PVD Coating System

Product Description

  faucet  titanium coating machine ,titanium nitride pvd coating equipment for bathroom accessories:

The machine use low temperature deposition coating technology to get all kinds of color coating on sanitaryware products,it is totally different with the traditional electroplating way. the coating which get by PVD can provide you excellent coating,strong adhesion and finess coating. the color series including Chrome,gold,shinning Zr,TiN,Rosegold,black and jet black and other color series. we service USA KOHLER.Moen,Delta and other famouse companies for the coating project.
if you need any information related with the project,pls feel free to
contact with Sophia:
Mobile:+8613600282018
This machine mainly integrates the technology of MF magnetron sputtering and electric arc ion evaporation, combining the ion source and the pulse bias voltage. It is full automation control when coating films.

Applied industry: It is widely used in the sanitary ware, watchband, watchcase, mobile shell, hardware, tableware, etc. It can coat TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films.

HCVAC decorative PVD films are routinely used as a replacement for electroplated chrome. They can be applied directly over almost any substrate material and can be deposited in a wide variety of colors. The process parameters to deposit each color are stored in software recipes with different process steps. Once the coating process has started, all of the relevant process parameters are continuously monitored and controlled by the on-board computer software.

We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.

ISO 9001 standard to ensure the quality can meet the customer's requirements.

Easy to implement

To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.

Technical parameters

Mode Dimension	JTL-900	JTL-1100	JTL-1250
	900*1000mm	1100*1000mm	1250*1100mm
Coating mode and main confirguration	Six multi-arc targets + one set of column targets + one set of plane rectangle magnetron sputtering targets	Six multi-arc targets + a pair of twin (MF)magnetron sputtering targets	Twelve multi-arc targets + two sets of  plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets
Power source	Electric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source.
Process gas control	Quality flowmeter + electromagnetism ceramic valve
Vacuum chamber structure	Vertical single(side) door, pump system postposition, double water-cooling
Vacuum system	Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa)
Workpiece baking temperature	Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
Control mode	Manual/Automatic/PC/PLC + HMI/PC  four choice of control mode
Remark	We can design the dimension of the equipment according to customer's special technique requirement.
