| Price: | US $ 75/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR |
| Min Order: | 10/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | okey01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Green, White |

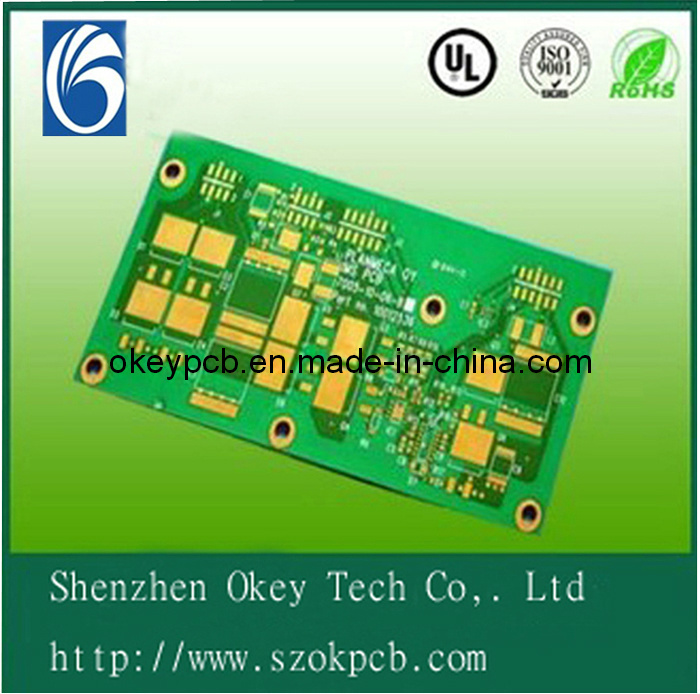

| Type: | Rigid Circuit Board |
| Dielectric: | FR-4 |
| Flame Retardant Properties: | HB |
| Material: | Fr4 |
|
NO |
I tem |
Technical capabilities |
|
1 |
Layers |
1-20 layers |
|
2 |
Max. Board size |
2000×610mm |
|
3 |
Min. board Thickness |
2-layer 0.15mm |
|
4-layer 0.4mm |
||
|
6-layer 0.6mm |
||
|
8-layer 1.5mm |
||
|
10-layer 1.6~2.0mm |
||
|
4 |
Min. line Width/Space |
0.1mm(4mil) |
|
5 |
Max. Copper thickness |
10OZ |
|
6 |
Min. S/M Pitch |
0.1mm(4mil) |
|
7 |
Min. hole size |
0.2mm(8mil) |
|
8 |
Hole dia. Tolerance (PTH) |
±0.05mm(2mil) |
|
9 |
Hole dia. Tolerance (NPTH) |
+0/-0.05mm(2mil) |
|
10 |
Hole position deviation |
±0.05mm(2mil) |
|
11 |
Outline tolerance |
±0.10mm(4mil) |
|
12 |
Twist & Bent |
0.75% |
|
13 |
Insulation Resistance |
>10 12 Ω Normal |
|
14 |
Electric strength |
>1.3kv/mm |
|
15 |
S/M abrasion |
>6H |
|
16 |
Thermal stress |
288°C 10Sec |
|
17 |
Test Voltage |
50-300V |
|
18 |
Min. blind/buried via |
0.15mm (6mil) |
|
19 |
Surface Finished |
HAL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold |
|
20 |
Materials |
FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base |
