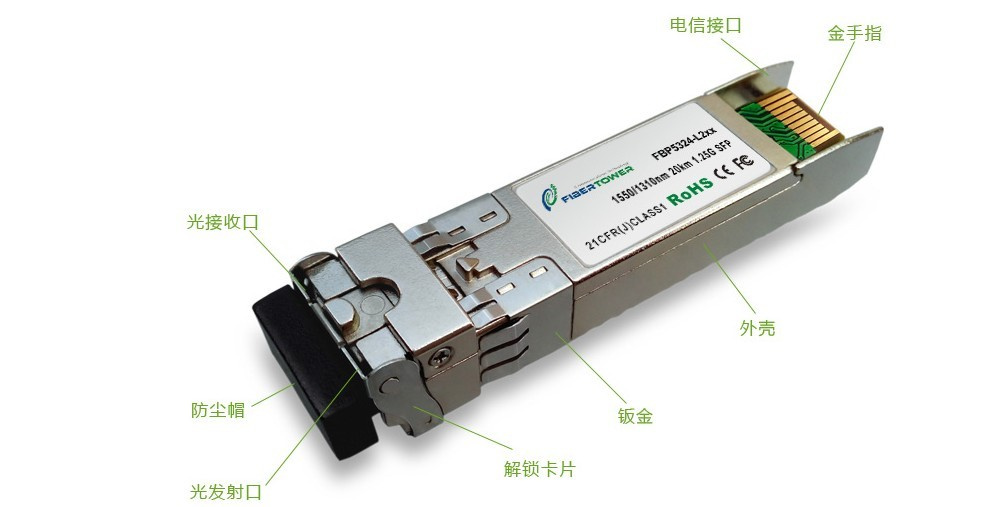

Fbp5324-L2dt Communication Module

Product Specifications

Prod Model:	FBP5324-L2DT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	GS
Condition:	New
Function:	Signal Transmitting Device
Type:	Transmitter

Product Description

Features
l  Dual data-rate of 1.25Gbps/1.063Gbps operation
l  1550nm DFB laser and PIN photo-detector for 20km transmission
l  Compliant with SFP MSA and SFF-8472 with single LC receptacle
l  Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
l  Compatible with SONET OC-24-LR-1
l  Compatible with RoHS
l  +3.3V single power supply
l  Operating case temperature:
Standard :  0 to +70°C
Industrial : -40 to +85°C


Applications
l  Gigabit Ethernet
l  Fiber Channel
l  Switch to Switch interface
l  Switched backplane applications
l  Router/Server interface
l  Other optical transmission systems

Ordering information

Part Number	Product Description
FBP5324-L2NC	1550nm/1310nm,  1.25Gbps,  LC,  20km,  0°C~+70°C,  without DDM
FBP5324-L2NT	1550nm/1310nm,  1.25Gbps,  LC,  20km,  -40°C~+85°C, without DDM
FBP5324-L2DC	1550nm/1310nm,  1.25Gbps,  LC,  20km,  0°C~+70°C,  with DDM
FBP5324-L2DT	1550nm/1310nm,  1.25Gbps,  LC,  20km,  -40°C~+85°C, with DDM
