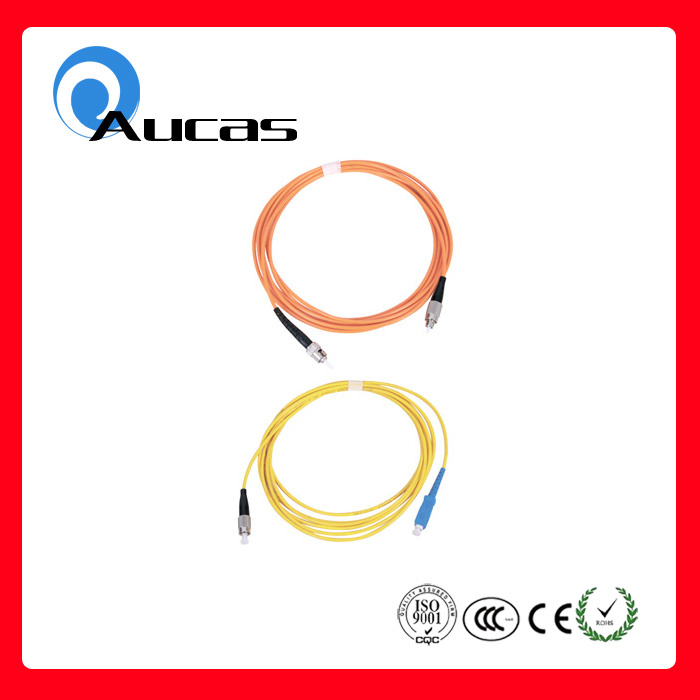

FC-FC FC-SC/APC Fiber Optic patch cord
Product Specifications
| Prod Model: |
FC-SC, FC-FC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
FC-SC |
| Certification: |
UL |
Product Description
Description of FC-SC/APC Fiber Optic patch cord
Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration and are made to conform to IEC, Telcordia GR-326-CORE Standard.
Environmental Reliability Test
The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others
Key Features
Low insertion loss
Low return loss
Various connector types available
Easy instalation
Environmentally stable
Applications
Fiber Optic Telecommunications
LAN (Local Area Network
FTTH (Fiber To The Home)
CATV&CCTV
High speed transmission systems
Fiber optic sensing
|
Type |
Standard,Master |
|
Style |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Duplex MTRJ/Female, MTRJ/Male |
|
Fiber Type |
9/125 SMF-28 or equivalent (Singlemade) OS1
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G (Multimode) OM3
|
|
Cable Type |
Simplex, Duplex (Zipcord)
Φ3.0mm, Φ2.0mm, Φ1.8mm
Φ1.6mm PVC or LSZH
Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750 |
Return Loss
(For Singlemode) |
UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750 |
|
Repeatability |
±0.1dB
|
|
Operating temperature |
-40 0 C to 85 0 C |
Geometry Requirement
(For Singlemode) |
Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1 |
