Product Specifications
| Prod Model: |
Various |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Iron Ore Beneficiation |
| Type: |
High Weir ,Submerged |
| Model: |
2FC-3000 |
| Screw Weight(T): |
1.5,22*2 |
| Design: |
by Professional Engineer |
| Experience: |
More Than 50 Years |
| Installation: |
Under Our Engineer's Guide |
| After Sale Service: |
We Offer |
| Spare Parts: |
We Offer |
| Capacity: |
Can Be Customized |
Product Description

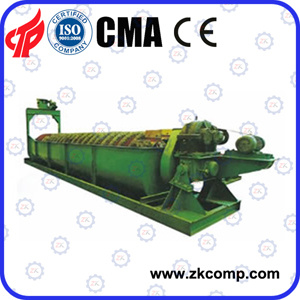

Spiral Classifier
Spiral Classifier introduction:
There are four types classifier: High-grading single-screw and double-screw, sinking type single-screw and double-screw classifier. The classifiers are suitable for dewatering, medium, drainage ad spraying in ore dressing for medium and fine material wet and dry classifying in mine.
Applicable scope:
Classifier widely used in mineral processing plant to match with the ball mill and form a closed-circuit circulation to process mining sand. Or used in gravity mine-selection plant for classifying sand and mine mud, and grading sand according to the particle size, disliming, dewatering in the mine washing process. This machine has simple structure, reliable operation, convenient operation, etc. The classifier is a kind of classifying machine that adopt the principle of settling speed difference according to different material sizes and specific gravity. Fine particles floating in the water overflow out; The coarse ore grain sinks to the bottom of the chase which will be pulled to the upper by the spiral and discharging out.
Structure features:
The classifier is mainly composed of the transmission device, the helicoid, tub, lifting mechanism and lower bearings (bearings) and mineral composition valve.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://www.zkcomp.com/calcining/558. Html
Rotary Kiln: http://www.inczk.com/Products/459. Html
Preheater: http://www.zkcomp.com/calcining/605. Html
Cement Mill: http://www.inczk.com/Products/460. Html
Rotary Dryer: http://www.zkcomp.com/calcining/564. Html
Raw Mill: http://www.inczk.com/Products/1373. Html
Ball Mill: http://www.zkcomp.com/grinding/582. Html
|
submerged single spiral classifier |
|
C-12 |
φ1200 |
2.5 \ 4 \ 6 |
1170-1630 |
120 |
2.2 |
7.5 |
|
FC-15 |
φ1500 |
2.5 \ 4 \ 6 |
1140-2740 |
185 |
2.2 |
7.5 |
|
FC-20 |
φ2000 |
3.6 \ 5.5 |
3890-5940 |
320 |
3 |
11 \ 15 |
|
FC-24 |
φ2400 |
3.64 |
6800 |
455 |
4 |
18.5 |
|
FC-30 |
φ3000 |
3.2 |
11650 |
705 |
4 |
22 |
|
submerged double spiral classifier |
|
2FC-12 |
φ1200 |
3.8 \ 6 |
1770-2800 |
240 |
2.2x2 |
7.5x2 |
|
2FC-15 |
φ1500 |
2.5 \ 4 \ 6 |
2280-5480 |
370 |
2.2x2 |
7.5x2 |
|
2FC-20 |
φ2000 |
3.6 \ 5.5 |
7780-11880 |
640 |
3x2 |
22 \ 30 |
|
2FC-24 |
φ2400 |
3.67 |
13700 |
910 |
3x2 |
30 |
|
2FC-24 |
φ2400 |
3.67 |
13700 |
910 |
4x2 |
37 |
|
2FC-30 |
φ3000 |
3.2 |
23300 |
1410 |
4x2 |
44 |
Henan Zhengzhou Mining Machinery Co., Ltd, was established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 55000m2 and various building area of 28000 m2. It has the annual income of more than RMB180million in 2008 and now the fixed assets of over RMB80 million. In the plant, there are branches and workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.
Main products include: Jaw style, hammer style, impact style and roll style crusher; Ball mill, direct fired drier, rotary kiln, preheater, coker, magnetic separator, flotation machine, classifier, feeder, hoisting machine and conveyor etc. These complete sets of machinery for cement building material, metallurgy, coking and chemical smelting etc are sold well in the world. Our company also has professional installation and construction teams and perfect after-sales service guaranty system.
With the development of the People's Republic of China, Henan Zhengzhou Mining Machinery Co., Ltd undergoes frequent difficulties and has accomplished over 50 years' brilliant history. Initially from the manufacturing of original single machine till today's series of and complete sets of mining metallurgical machinery, it has made great contribution to the development and utilization of mineral resources of our country. For many years, each spot check and annual examination carried by National Mining Machinery Quality Supervision and Inspection Center for our products is acceptable and our company is always appointed as Credible and Reputed Enterprise by Henan Provincial Administration of Industry and Commerce.
Henan Zhengzhou Mining Machinery Co., Ltd will continue providing excellent products and service for our society, with the guideline of "survival by quality, development by good faith, users supreme". Our company would make sincere cooperation with all circles for mutual benefit and common development.
