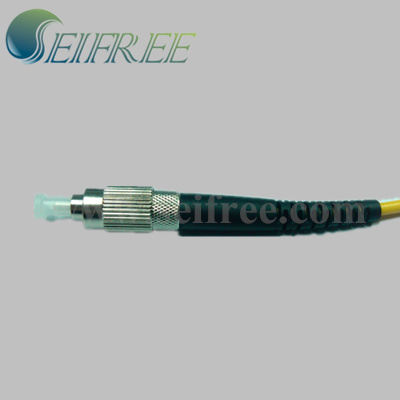

FC Splicing Field-Assembly Optical Fiber Connector

Name: FC Splicing Field-Assembly Optical Fiber Connector
Brand: china-manufacturer-directory.com
SKU: 698175792
Availability: InStock
Rating: 4.9 (33 reviews)

Supplier:	Wuhan Seifree Technology Co., Ltd.
Price:	US $ 0.7-1.5/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	FC Splicing Field-Assembly Connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	Mm(Om1/Om2/Om3)
Transmission Medium:	Single-Mode
Structure:	SC
Ferrule Endface:	APC
Number Of Cores:	Single-Core

Product Description

Features
Splicing increases the mechanic strength and decreases insertion loss. Return loss is greater than 55 dB (APC).
Model: SC, FC
Insertion Loss: < 0.3 dB
Return Loss: ≥ 45 dB (PC) ≥ 55 dB(APC)
Tensile Strength: ≥ 6 kg

Optical Performance	Insertion Loss	1310nm	≤ 0.3 dB	NA
Optical Performance	Return Loss	1310nm	NA	≥45dB(PC), ≥55dB(APC)
Mechanical Performance	Interchangeability	Random Connection	<0.2 dB	<5 dB
	Vibration	5-50Hz, 1.5mm, Vibration Amplitude	<0.2 dB	<5 dB
	Tensile Strength	6kg	<0.2 dB	<5 dB
Environmental Performance	High Temperature	+85ºC, 96H	<0.2 dB	<5 dB
	Low Temperature	-40ºC, 96H	<0.2 dB	<5 dB
	Temperature Cycling	-40ºC~ +85ºC 5Cycles	<0.2 dB	<5 dB
	Humidity	+40ºC, 90%~95%, 96H	<0.2 dB	<5 dB

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
