Product Specifications
| Prod Model: |
FC/UPC(APC/PC)--SM/MM--SX/DX--0.9/2.0/3.0mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optical Cable Mode: |
Single-Mode or Multimode |
| Fiber Type: |
Simplex or Duplex or Other |
| Fiber Diameter: |
0.9mm, 2.0mm, 3.0mm |
| Fiber Length: |
1m, 2m, 3m or Other Length |
| Connector Type: |
Sc, LC, FC, St, or Others |
| Polish Type: |
APC, Upc, PC |
| Application: |
Communication |
| Type: |
Single-Mode or Multi-Mode |
| Certification: |
Telcordia Gr-326-Core, Ice Standard |
| Connection Structure: |
Sc/APC Sc/Upc LC/APC LC/Upc FC/APC FC/Upc St/Upc S |
Product Description
1. Product Introduction

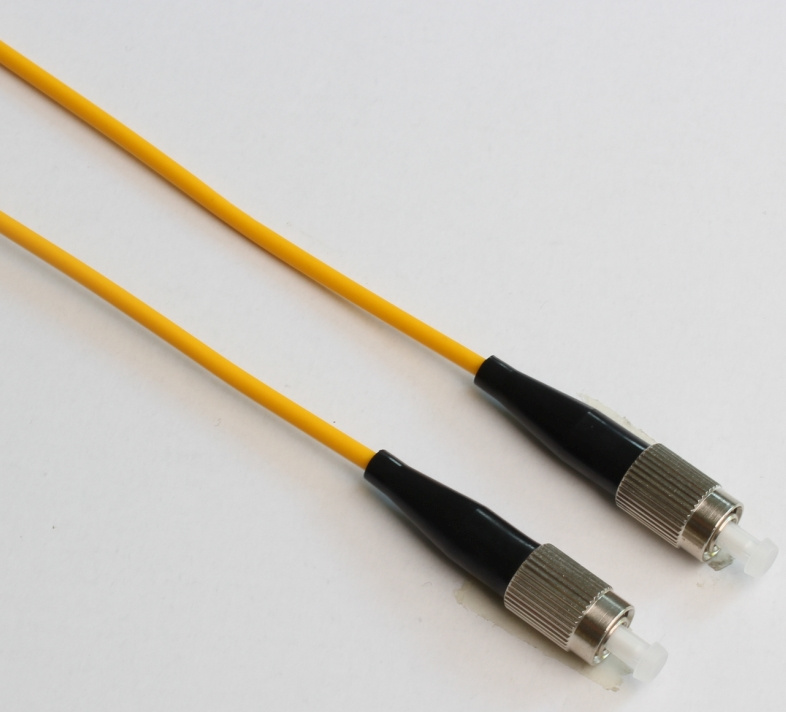

FC fiber optic patchcord are made by high precision lapping machines surface lapping. The patchcord has the lowest insertion loss and high return loss. The Singlemode, Multimode, simplex, duplex, UPC, PC, APC types are all available and any cable length are available, too.
2. Application
*Telecommunication
*Test equipment
*Fiber to the home
*LANS WANS
*CATV
*Fiber optic sensors
3. Features
*Low insert loss
*High return loss
*Compact andante-pull design, corrosion resistant body
*High reliability
*Simplex and duplex for standard
*Easy installation
*Comply with Telcordia GR-326-CORE, IEC Standard
4. Specifictions
The detail info are in the forms below.
5. Order Information
FC---Polish Type---Optical Cable Modle---Fiber Type---Fiber Diameter----Fiber Length
6. Other Info
Package: 1 PC/ bags (with test results), 20(50 or others) / box, 10Boxes/ Carton Or as clients' requirements.
| FC Fiber Optic Patch cord Technical Parameter |
| Type | SM | MM |
| PC | UPC | APC | / |
| Insert Loss | ≤ 0.30dB | ≤ 0.30dB | ≤ 0.30dB | ≤ 0.20dB |
| Return Loss | ≥ 45dB | ≥ 50dB | ≥ 60dB | / |
| Repeatability | ≤ 0.2dB |
| Exchangeability | ≤ 0.2dB |
| Resistance(≥ 1000 times) | ≤ 0.2dB |
| Industry Standard | ROHS, IEC, GR-326 |
| Operating Temperature | -40~+85 degree Celsius |
| Storage Temperature | -40~+85 degree Celsius |
