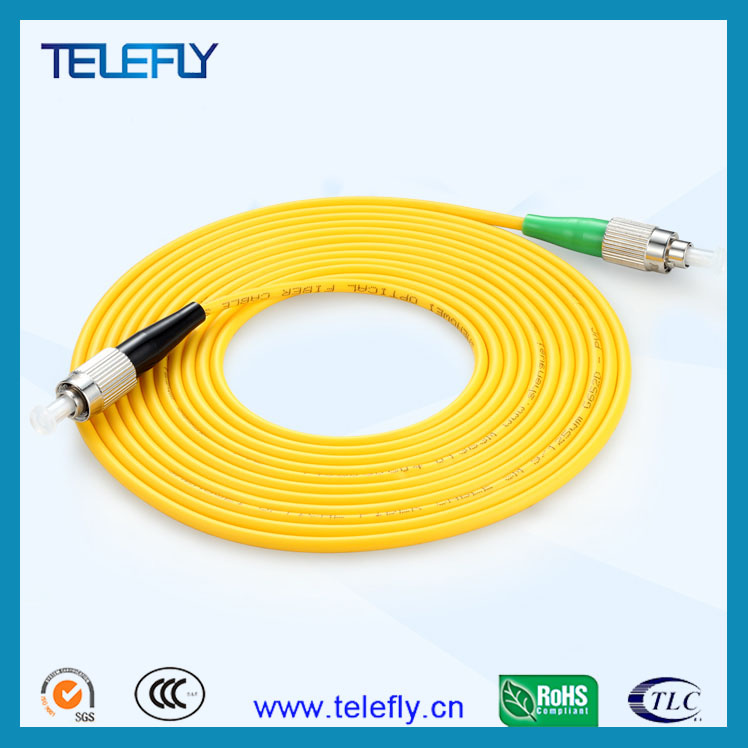

FC/Upc-FC/APC Optical Fiber Cables
Product Specifications
| Prod Model: |
FC/UPC-FC/APC-SM-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Full Types Of Optical Patch Cords: |
Sc, LC, FC, E2000, Mu, MPO...... |
| Type: |
Single-mode Fiber |
| Application: |
Communication |
| Certification: |
CCC |
| Connection Structure: |
Sc, LC, FC, E2000, Mu...... |
Product Description
Applications
1. High bit rate data transmission
2. Telecommunications
3. Testing instruments
4. Active device terminations
5. LAN/WAN
6. FTTX.
Features
1. All kinds of fiber optic patch cords, SM & MM available
2. Standard & custom configurations
3. Meets Telecordia-GR-326-CORE specifications
4. Low insertion loss
5. Ultra low back reflection
6. For 3.0mm, 2.4mm, 2.0mm jacket or 900μ M buffer.
| Performance & Specifications |
| Fiber Type | SM | MM |
| Normal Fiber OD | 125±0.2um | 125±0.2um |
| Connector Type | SC,FC,ST, E-2000, LC, MU | MTRJ | SC,FC,ST, E-2000, LC, MU | MTRJ |
| Insertion loss(Typical) | 0.2dB | 0.4dB | 0.2dB | 0.4dB |
| Insertion loss(Max) | 0.3dB | 0.5dB | 0.3dB | 0.5dB |
| Return Loss(Typical) | PC | 50dB | 35 | - |
| UPC | 55dB | - | - |
| APC | 65dB | - | - |
| Mating Durability(500 C) | 0.2dB |
| Temperature Stability | 0.3dB |
| Operation Temperature | -40°C~+85°C |
| Storage Temperature | -40°C~+85°C |
TELEFLY Telecommunications Equipment Co., Ltd. is a leading Chinese manufacturer founded in 2004, certified by SGS. We provide high quality and price competitive fiber optic patch cables, fibre optic patch panels, FTTH equipments, fibre optique patch panels, optical splitters, WDM, optical attenuators, fast connectors and so on. Up till now, our products and solutions have been deployed in over 60 countries and regions, TELEFLY is looking forward to strengthening friendly cooperative relationships with all clients, creating benefits together and sharing the joy of success!
TELEFLY Telecommunications Equipment Co., Ltd. is a leading Chinese manufacturer founded in 2004, located in SHENZHEN China, specialized in research and development (R&D), manufacturing, marketing and engineering service of fiber network infrastructure.
TELEFLY provides first-rate products and comprehensive solutions, with 4 professional manufacture plants:

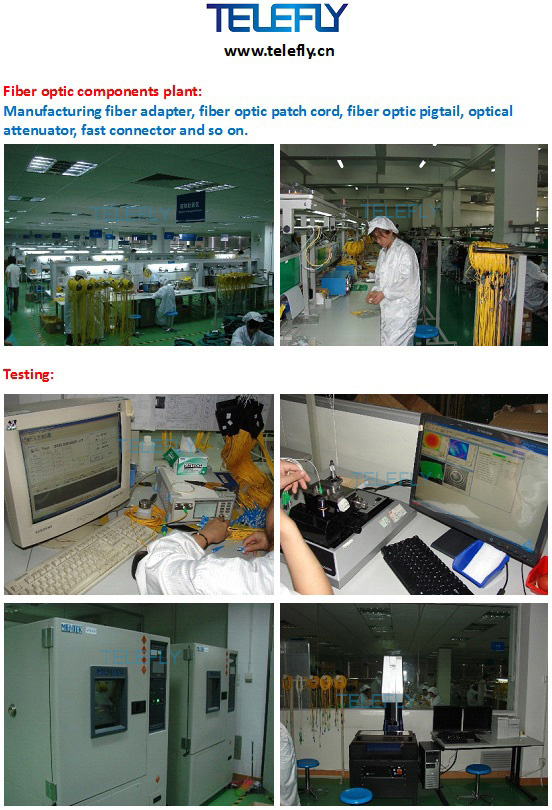

1. Fiber optic components plant:
Manufacturing fiber optic communication products, including fiber adapter, fiber optic patch cord, fiber optic pigtail, optical attenuator, fast connector, fiber optic cable and so on.

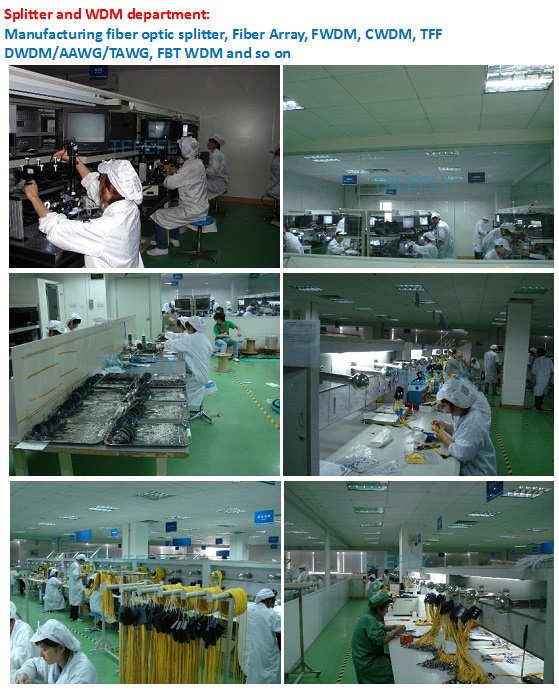

2. Splitter and WDM plant:
Manufacturing fiber optic splitter, Fiber Array, FWDM, CWDM, TFF DWDM/AAWG/TAWG, FBT WDM and so on.
3. FTTH equipment plant:
Manufacturing terminal closures, patch panels, indoor and outdoor fiber distribution closure, cross connection cabinet, splice closure and so on.

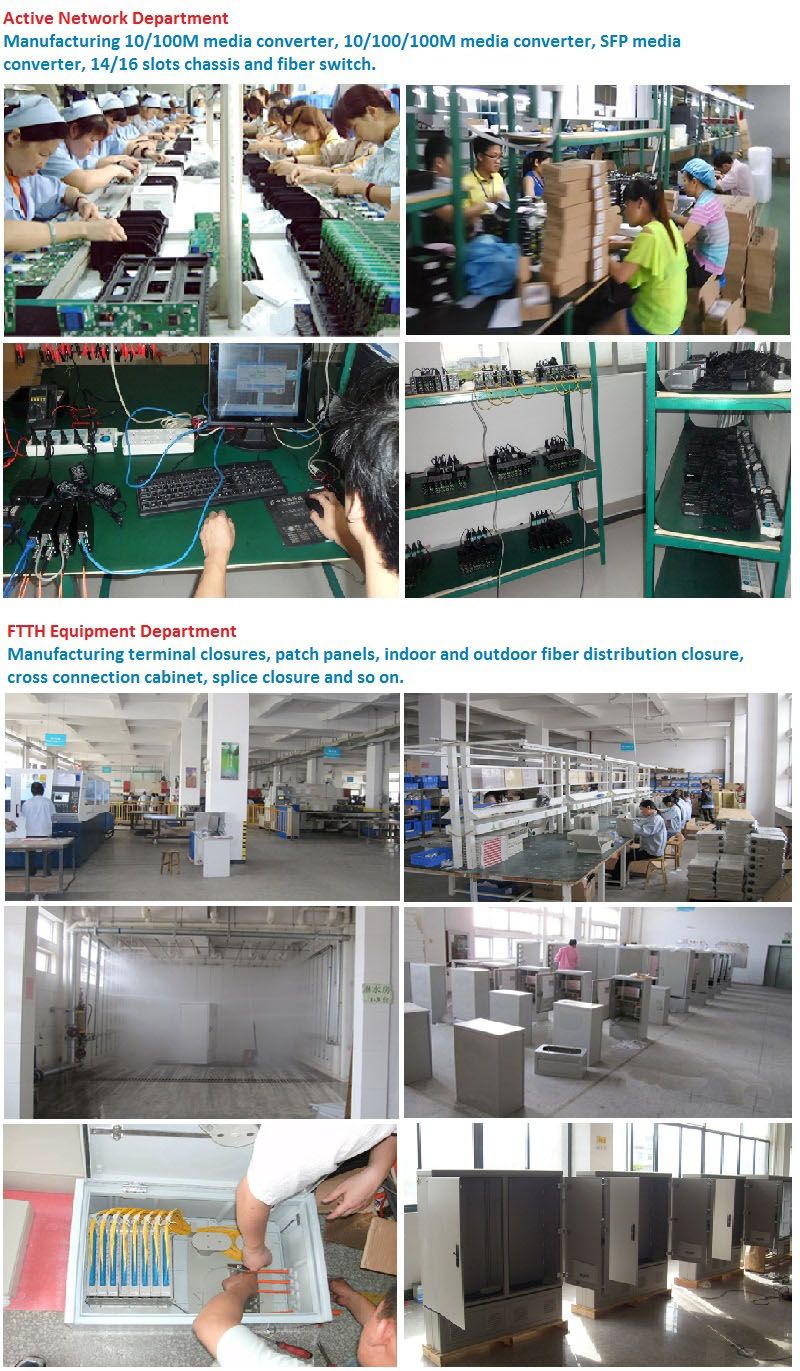

4. Active network equipment plant
Manufacturing media Converters, Video Transceiver, Protocol Converter, PDH Multiplexer, Fiber Modem and so on.
We provide professional services to China Telecom, China Mobile, and China Unicom, and become the major partner of world leading telecom solution providers such as Huawei, Alcatel-Lucent, ZTE, etc. Up till now, our products and solutions have been deployed in over 60 countries and regions.
We have one professional R&D team with rich experiences in network construction. Through close cooperation with telecom operators, our new or customizable product portfolio can satisfy customer's different requirements. We have been granted 56 patents at the end of 2014. As a member of China Communications Standards Association (CCSA), we participated in the drafting of 19 communication industry standards.
TELEFLY insists on the enterprise idea of "Faithful, amiable, innovative and achievable". This is an era for cooperation and win-win situation. TELEFLY is looking forward to strengthening friendly cooperative relationships with all clients, creating benefits together and sharing the joy of success!
