Product Specifications
| Prod Model: |
FCM2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

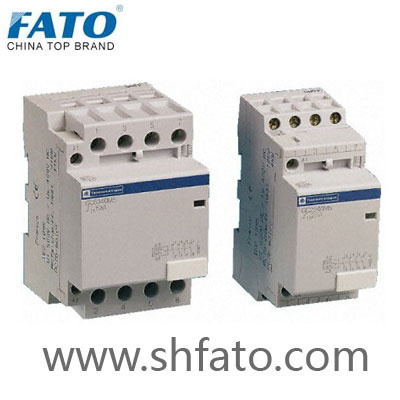

FCM2 modular contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V rated operating voltage, In AC-7A usage, rated operating voltage up to 230V, rated operating current up to 25A, it functions as long distance breaking and circuit controlling. This product is mainly applied to household appliances of low inductance loading and household motor loading control used for the similar purpose.
ModelFCM2-20(25) FCM2-25 FCM2-63 FCM2-63
Poles1P 2P3P 4P1P 2P3P 4P
Current10 16 20 (25)A10 16 20 25A25 32 40 63A25 32 40 63A
Contact1NO, 2NO3NO, 4NO, 4NC 2NO+2NC1NO, 2NO, 2NC3NO, 4NO, 4NC 2NO+2NC
CoilAC 50Hz/60Hz 220V/230V 127V 110V 36V 24V
Founded in 1987, Shanghai FATO Group Co., Ltd. is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China.
The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 3, 000 employees. During the past 18 years, the Group has invested heavily in both research and development and employee training programs, resulting in a wide range of products that meet the most rigorous requirements of international organizations such as CCC, CE, CB, KEMA, SEMKO, PICC, UL, BS, ISO14001 etc. In 2001 we were recognized by Vouching Technical Inspection Ltd. As an ISO9001: 2000 certified enterprise. In 2004 we were recognized as ISO14001 certified enterprise.
Currently, SHFATO manufacture and export more than 80 varieties of products, with over 1000 types of low voltage electrical apparatus including all kinds of Cable Lugs, Cable Clamps, Line Fittings, Cut Out Fuses, Arresters, Meters, Contactors, Circuit breakers, Relays, Stabilizers, Starters, Inverters, Fuses, Terminals, Connectors, Switches, Timers, Counters, Lightings, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology" can help us survive and succeed in today's highly competitive market. Hence, we guarantee high quality of all our products, because they all have undergone strict quality control and meet high standards.
