Product Specifications
Prod Model: |
HC-IOD005 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
CAS No: |
1332-37-2 |
Item: |
Iron Oxide Desulfurizer |
Size: |
D=4.0mm 5.0mm 8.0mm 10.0mm 12.0mm |
Lenght: |
L=8-20mm, or Customized |
Chemical Formula: |
Fe2o3@H2O |
Application: |
H2s Removal |
Min.Order Quantity: |
1 Ton |
Port: |
Tianji |
Status: |
Solid Catalyst |
Effect Size: |
Promoter Catalysts |
Manufacturing Method: |
Mechanical Mixing |
Usage: |
Negative Catalyst |
Response Type: |
Oxidation |
Application Industry: |
Industry |
Classification: |
Homogeneous Catalysts |
Product Description
Packaging & Delivery
1.Packaging Detail: 25kg/bag,40kg/bag,pp bag with PE inner.or customized
2.Delivery time: within 15days after receive the payment.
Specifications
1.High effective gas purification
2.Used for natural gas, water gas, coke oven gas.
3.Professional manufacturer
Introduction of Ferric Oxide Desulfurizer:

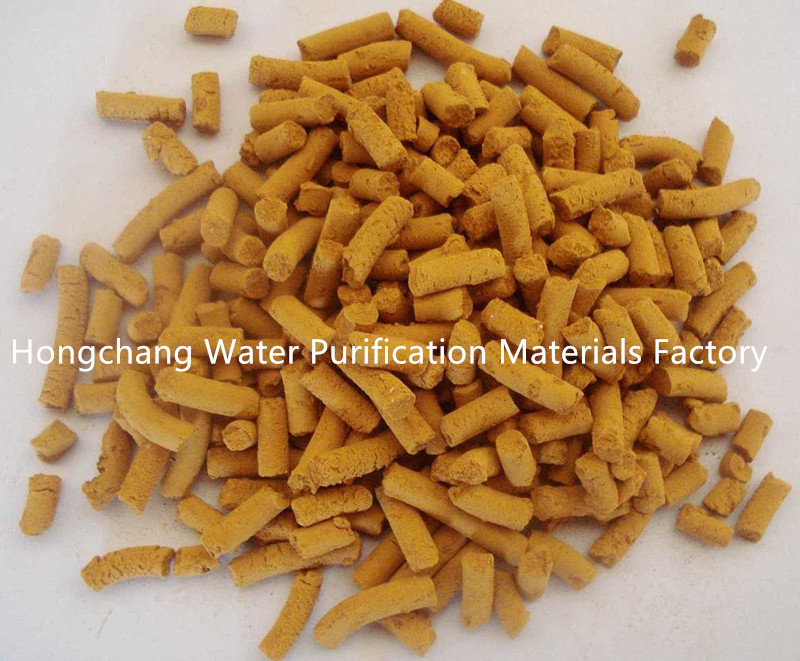

Iron Oxide Desulfurizer is made of iron,manganese salt and their oxide as raw material,pass through the process chemosynthesis to be active oxide, then add the assistant and binder to make it columnar solid .It has features of larger sulfur capacity ,small resistance,high purification capacity and good water resistance
Our product usages:
this product can be used for natural gas, coke oven gas, water gas, oil field gas, methane, H2, CO2,
chemical synthesis gas (such as methanol, acetic acid, DMF, ammonia, polypropylene) gas removal
from the sulfide.
Advantages:
1. H2S of removal through dry method in room temperature, renewable material
2. Quick reaction: Space velocity: 1000~3000h-1, penetration space velocity: 6000h-1, twice to four-time of normal iron oxide
3. Large sulfur degree, high purification degree, reaching 25% in the condition of space velocity 1000h-1, normal pressure, water saturation, import H2S 1%, export H2S≤5×10-8 particle
4. High strength, good water tolerance, no pulverization under the condition of boiling by 2 hours or soaking by 30 days, and the strength remain the same as before, even in the condition of sudden pressurizing or relief with 12MPa, and undergoing blow test 100 times
5. Large applicable scope, 10~100°C without obvious change of sulfur content 6. In the condition of no O2 or large CO2 content conditions, the sulfur content won't alter
Type |
MT-1 |
MT-2 |
Granularity(mm) |
φ(5-6)×(5-15) |
φ(5-6)×(5-15) |
Edgewise compressive strength(N/cm) |
≥40 |
≥50 |
Bulk density(kg/L) |
0.65-0.75 |
0.75-0.85 |
Saturation sulfur capacity (%) |
≥50 |
≥70 |
