Price: | US $ 999-200000/Set |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Paypal,Western Union |
Vermiculite grinding machine/Vermiculite powder making machine:
—— five models: HGM80, HGM90, HGM100, HGM100A, and HGM125
——finished production fineness: 300meshes~3000meshes, 5-47 micron
——the capacity (ton/hour) ranges from 0.4T/H to 12T/H
Application of Vermiculite grinding machine/Vermiculite powder making machine:
HGM Series Vermiculite grinding machine/Vermiculite powder making machine is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.
Work Principle of Vermiculite grinding machine/Vermiculite powder making machine:

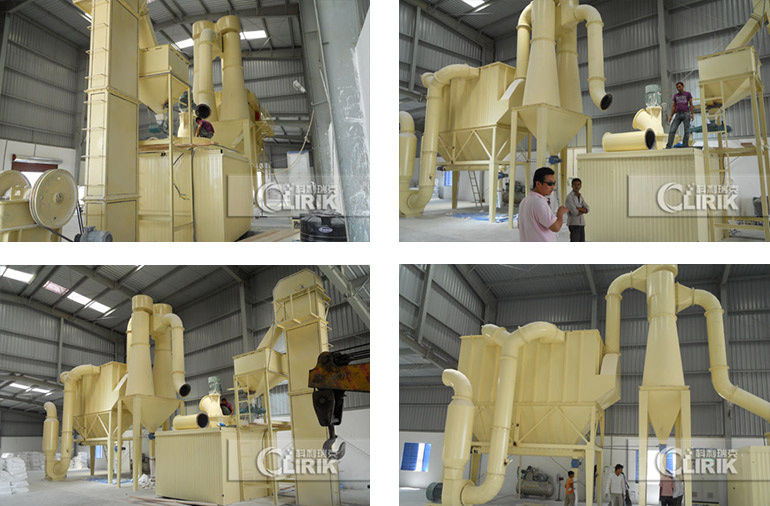

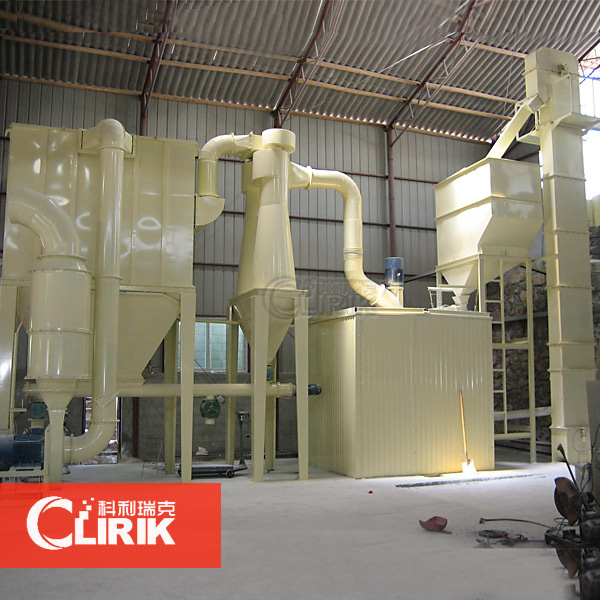

HGM series Vermiculite grinding machine/Vermiculite powder making machine mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
Features of Vermiculite grinding machine/Vermiculite powder making machine:
High Efficiency
Under the same finished final size and the same motor power, the capacity of Vermiculite grinding machine/Vermiculite powder making machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization, the lifetime can reach 2-5 years for grinding calcite carbonate.
High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
Advanced intelligent speed control device
Convenient adjusting, more uniform particle size.
Main specification of Vermiculite grinding machine/Vermiculite powder making machine:
Model | HGM80 | HGM90 | HGM100 | HGM125 | HGM168L |
Ring Diameter(mm) | 800 | 900 | 1000 | 1250 | 1680 |
Ring Number (PCS) | 3 | 34 | 4 | 4 | 4 |
Roller Number(PCS) | 18-21 | 24-29 | 28-36 | 30-44 | 30-40 |
Main Shaft Speed (r. P. Min) | 230-240 | 200-220 | 180-200 | 135-155 | 120-130 |
Input Size (mm) | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 |
Finished Size (um/mesh) | May-74 | May-74 | May-74 | 100-6 | 100-9 |
(200-2500) | (200-2500) | (200-2500) | (150-2000) | (150-1500) | |
Capacity (t/h) | 0.4-4.5 | 0.6-6.5 | 19 | 216 | 3.8-30 |
Outlet Size L*W*H (m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 14*9*10.25 | 26.3*7.5*11.9 |
Unit: KW | HGM80 | HGM90 | HGM100 | HGM125 | HGM168L |
Main Unit | 55-75 | 2*45 | 132 | 185-200 | 315 |
Classifier | 18.5 | 18.5 | 30 | 37-4*15 | 5*18.5 |
Blower | 45 | 55 | 75 | 2*45-2*55 | 2*75-2*90 |
Crusher | 18.5 | 18.5 | 18.5 | 45 | 75 |
Bucket Elevator | 3 | 3 | 4 | 4 | 7.5 |
BeltConveyor Feeder | 2.2 | 2.2 | 2.2 | 3 | 3 |
Spiral Conveyor | 3 | 3 | 34 | 2*3 | 2*5.5 |
Discharging Valve | 2*0.75 | 1*0.75 1*1.1 | 2*1.1 | 2*1.1 | 2*0.75-2*1.5 |
Air compressor | 11 | 15 | 22 | 2*15-37 | 55 |
Note: This specification is just referencing, any changes are subject to the products.
Prod Model: | HGM |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Vermiculite Grinding Machine Fineness: | 30-2500 Mesh |
Vermiculite Grinding Machine Color: | as Request |
Vermiculite Grinding Machine Capacity: | 1-30 T/H |
Vermiculite Grinding Machine Warranty: | 1 Year |
Vermiculite Grinding Machine After Sales: | Engineers Abroad Available |
Vermiculite Grinding Machine Roller No.: | 21-44 PCS |
Vermiculite Powder Machine Ring Diameter: | 800-1680mm |
Vermiculite Grinding Machine Ring No.: | 3-4 |
Vermiculite Grinding Machine Power: | 146.05-527kw |
Vermiculite Grinding Machine Input Size: | 20mm |
Motor Type: | AC Motor |
Condition: | New |
Type: | Vermiculite Grinding Machine |
Materials: | Ore, Mining, Construction |
