Changzhou Jingkong Motor&Electric Appliance Co., Ltd. >> Featured Products1.8deg NEMA17 Stepper Motor for 3D Printer

Featured Products1.8deg NEMA17 Stepper Motor for 3D Printer

Name: Featured Products1.8deg NEMA17 Stepper Motor for 3D Printer
Brand: china-manufacturer-directory.com
SKU: 767633205
Availability: InStock
Rating: 4.6 (57 reviews)

Supplier:	Changzhou Jingkong Motor&Electric Appliance Co., Ltd.
Price:	US $ 4.57-6.00/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,DAT

Product Specifications

Prod Model:	JK42HS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stepper Motor Angle:	1.8 Degree
Stepper Motor Wires:	4/6
Stepper Motor Holding Torque:	1.6-5.6kg.Cm
Stepper Motor Weight:	0.22-0.5kg
Number Of Stator:	Two-Phase
Type:	Electromechanical
Application:	Other
Excitation Mode:	Hybrid
Number Of Poles:	Other
Operate Mode:	Other
Certification:	CE and RoHS
Brand:	Jk Stepper Motor

Product Description

Delicate NEMA17 Stepper Motor/Stepper Motor for 3D Printer/Stepper Motor for CNC Router /Stepper Motor with ROHS CE ISO Certification

General Specification:

Step Angle:1.8°
Temperature Rise:80°Cmax

Ambient Temperature:-20°C~+50°C

Insulation Resistance:100MΩ Min.,500VDC

Dielectric Strength:500VAC for 1 minute

Shaft Radial Play:0.02Max.(450g-load)

Shaft Axial Play:0.08Max.(450g-load)

Max.radial force:28N(20mm from the flange)

Max.axial force:10N

Description:

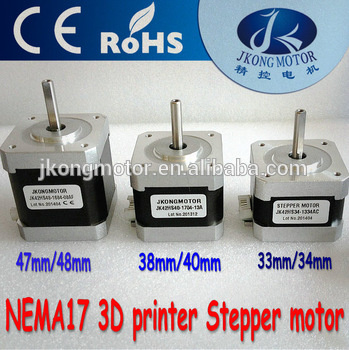

1.8 degree Size 42mm Hybrid stepper motor, 3D Printer stepper motor

42mm size stepper motor , NEMA17 stepping motor,

Small stepping motors, 2 phase 42mm stepper motor, Stepper motor 42mm size

Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version

Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,

advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.

Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	Lead wires	Detent Torque	Rotor Inertia	Motor Weight
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HS34-0956	1.8	34	0.95	4.2	2.5	1.6	6	120	34	0.22
JK42HS34-0406	1.8	34	0.4	24	15	1.6	6	120	34	0.22
JK42HS34-0316	1.8	34	0.31	38.5	21	1.6	6	120	34	0.22
JK42HS34-1334	1.8	34	1.33	2.1	2.5	2.2	4	120	34	0.22
JK42HS40-1206	1.8	40	1.2	3.3	3.2	2.6	6	150	54	0.28
JK42HS40-0806	1.8	40	0.8	7.5	6.7	2.6	6	150	54	0.28
JK42HS40-0406	1.8	40	0.4	30	30	2.6	6	150	54	0.28
JK42HS40-1684	1.8	40	1.68	1.65	3.2	3.6	4	150	54	0.28
JK42HS48-1206	1.8	48	1.2	3.3	2.8	3.17	6	260	68	0.35
JK42HS48-0806	1.8	48	0.8	7.5	6.3	3.17	6	260	68	0.35
JK42HS48-0406	1.8	48	0.4	30	25	3.17	6	260	68	0.35
JK42HS48-1684	1.8	48	1.68	1.65	2.8	4.4	4	260	68	0.35
JK42HS60-1206	1.8	60	1.2	6	7	6.5	6	280	102	0.5

Matching Stepper motor Driver: JK0220 , JK0230

About our manufacturer and our products:

WHY YOU CHOOSE US:

We are a professional manufacturer for Stepper motor , Stepper driver, BLDC motor and DC motor. we can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co.,Ltd

Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.

High quality .
Competitive price ,
Good Packing ,
Fast Delivery .
Knight service

Advanced technology

Believe that we will do our best!

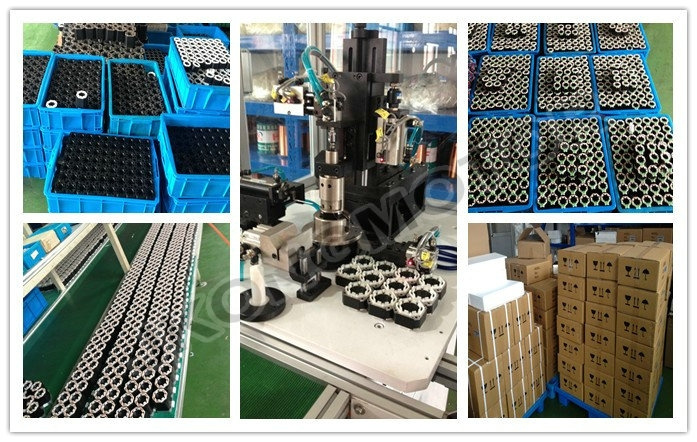

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 1, 500 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor.

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
