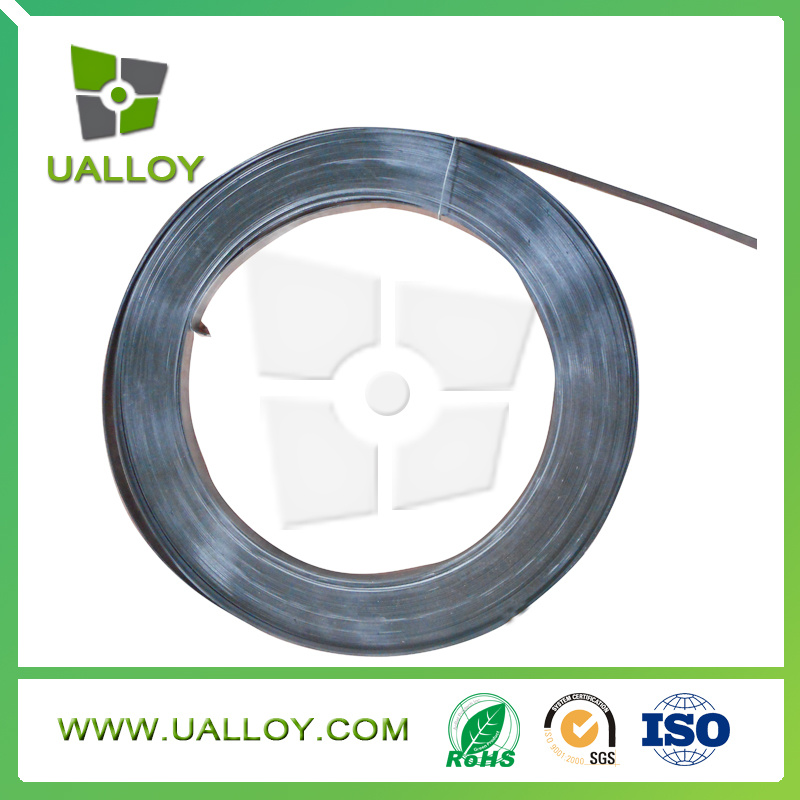

Fecral 0cr27al7mo2 Resistance Heating Wire and Strip Fecral Alloys
1. Description
With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature, It is widely used in the single crystal furnace, sintering furnace, ceramic calcining Furnace and heat treatment furnace.
2. Specification
Wire:
Diameter: 0.15mm-8.0mm
Strip:
Thickness: 0.6mm-3.0mm
Width: 5mm-250mm
3. Usage
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.
4. Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
5. Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet
6. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;
The allowable tolerance of alloy strip GB/T1234-2012 |
|
Category | Thickness ( mm ) | Tolerance ( mm) |
|
Common precision | High precision |
|
Cold-rolled strip | 0.05 ~ 0.1 | ±0.01 | ±0.005 |
|
0.1 ~ 0.2 | ±0.015 | ±0.01 |
|
0.2 ~ 0.5 | ±0.02 | ±0.015 |
|
0.5 ~ 1.0 | ±0.03 | ±0.025 |
|
1.0 ~ 1.8 | ±0.04 | ±0.03 |
|
1.8 ~ 2.5 | ±0.05 | ±0.04 |
|
2.5 ~ 4.0 | ±0.06 | ±0.05 |
|
Hot-rolled Strip | 2.5 ~ 5.0 | ±0.25 | ±0.2 |
|
5.0 ~ 7.0 | ±0.3 | ±0.25 |
|
7.0 ~ 10.0 | ±0.4 | ±0.35 |
|
10.0 ~ 20.0 | ±0.5 | ±0.45 |
|
The allowable tolerance of alloy strip GB/T1234-2012 |
Category | Width ( mm ) | Tolerance ( mm ) |
side cut | Nonside cut |
Common precision | High precision |
Cold-rolled Strip | 5.0 ~ 10.0 | ±0.2 | ±0.1 | -0.6 |
10.0 ~ 20.0 | -0.8 |
20.0 ~ 30.0 | -1 |
30.0 ~ 50.0 | ±0.3 | ±0.15 | -1.2 |
50.0 ~ 100.0 | ±1.0 |
100.0 ~ 200.0 | ±0.5 | ±0.25 | ±1.5 |
200.0 ~ 300.0 | ±1.8 |
Hot-rolled Strip | 15.0 ~ 60.0 | / | ±1.5 |
60.0 ~ 200.0 | ±2.5 |
200.0 ~ 300.0 | ±3.0 |
