Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Rotary Type Drier |
| Heating Mode: |
Convective |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Combined |
Product Description

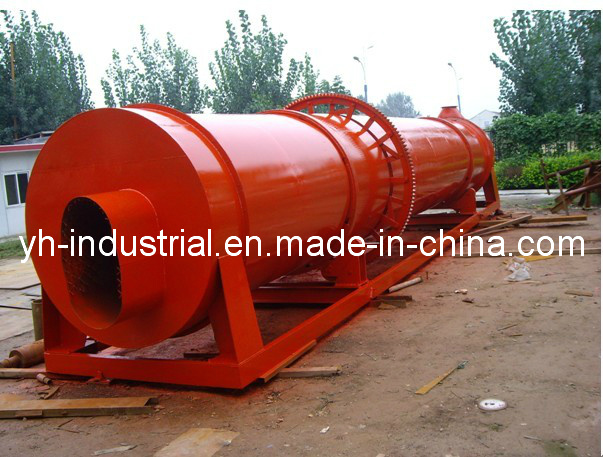

Feed Roller Drying Machine
Working principle:
The wet materials are sent to the hopper by belt conveyor or bucket elevator. The main body of the rotary drum dryer is a slightly tilted rotary cylinder body. The materials are into the internal cylinder, and contact with the hot air through the cylinder in co-current or counter-current way, or contact with heated inner wall effectively, while being dried products are out from the other end of the lower outlet. During the drying process, the materials move from the higher part to the lower part under the gravity action when the cylinder rotating. The plates straight-forward installed in the internal wall of cylinder, keep rising up the materials and throwing them down, and make the materials of thermal contact surface increase greatly, improve the drying rate and make the materials move forward. After drying process, the heat carrier (hot air, flue gas) with the dust is evacuated by cyclone dust collector.
Characteristics of the equipment:
Large production capacity, continuous operation, simple structure, low malfunction, convenient operation, low maintenance cost, stable operation; Wide applicable range for drying materials in the shape of powder, granular, strip and block, large operating flexibility, the production of large variation allowed without any influence on the quality of the products, easy cleaning, difficult installation and disassembly because of huge equipment, low heat capacity coefficient, thermal efficiency is relatively high.
Scope of application:
The chemical industry: Ammonium sulfate, sodium sulfide, AnFu powder, ammonium nitrate, urea, oxalic acid, potassium dichromate, polyvinyl chloride, nitro phosphate fertilizer, magnesium phosphate fertilizer, compound fertilizer.
The food industry: Glucose, salt, sugar, vitamins, malted milk, strong sugar granule.
Minerals: Bentonite, titanium concentrates, coal, manganese ore, pyrite, limestone, peat.
