Product Specifications
| Prod Model: |
FJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO |
Product Description
Detailed Product Description

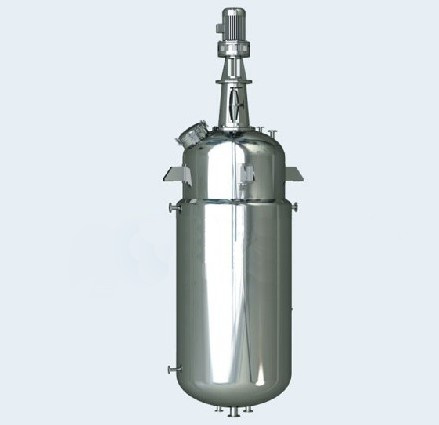

Fermentation vessel
Usage: This equipment is useful for fermentation in such fields as pharmacy etc...
Fermentation vessel
Usage: This equipment is useful for fermentation in such fields as pharmacy, biology, food, chemical industry etc.
Characteristics:
A. Its cooled by clamp ferrule and coil. In tank body, there are mixing and foam-breaker. Its polished in both internal and external side in accordance with GMP requirements.
B. Its mainly made up of inner liner, clamp ferrule, external thermal insulation, mixing, inlet and outlet liquid device etc.
C. The newest fermentation vessel, with external temperature controller, make sterilization more complete and easier.
|
Parameters/Model |
FXG-1000L |
FXG-3000L |
FXG-5000L |
FXG-10m3 |
FXG-20m3 |
|
Volume in jarL |
1000 |
3000 |
5000 |
10000 |
20000 |
|
Area of heat exchangingm2 |
4 |
7 |
13 |
22 |
36 |
|
Rotating speed of mixing rpm |
20-200 |
20-200 |
20-200 |
20-200 |
20-200 |
|
Motor Power (kw) |
1.5 |
3 |
7.5 |
11 |
18.5 |
|
Overall Dimension m |
1.2x1.2x2 |
1.5x15.x3.5 |
1.8x1.8x4.5 |
2.5x2.5x5 |
2.8x2.8x6 |
Since established, TIANBO company has been mainly specializing in the development and design of light Industry machinery of various fields. e. g. Pharmacy, biology, healthcare products, fine chemical, dairy food, food beverage and fermentation engineering, etc. The company offers an overall service including manufacturing,
distribution, design and consolation service for technical collocation, engineerying related budget of the manufacturing items' renewal and expand.
The company possesses abundant technical forec, advanced equipment and a high quality group of talents. To strengthen the internal management of the enterprise, ISO9000 system is adopted and appplied to production, Tesfing, and new products development.
With the technical accumulation of many years manufacturing of international standard sanitary-class equipment, rich experience of cooperation with many domestic well-know enterprises and multinational companies a perfect after sale service system and advanced managerial concept. TIANBO company welcomes
cooperation from all customes on the basis of double-win for the goal of TIANBO development.
