Product Specifications
| Prod Model: |
MPS-F-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Communication Electronic Products |
Product Description

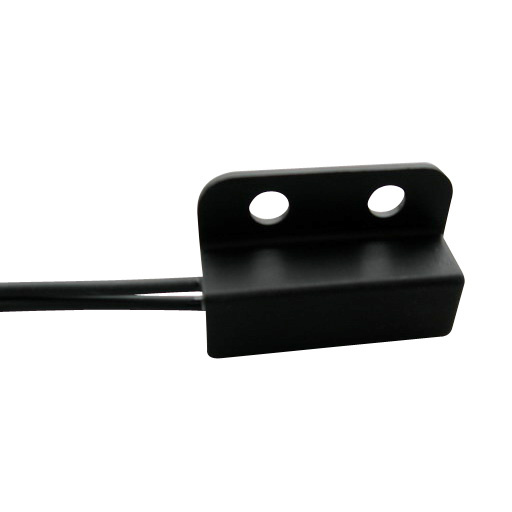

Ferro-actuate type proximity switch
Ferro-actuate type proximity switch is that has a built-in system of permanent magnets, unlike magnetically actuated switches that require the approach of an external permanent magnet actuator before they will operate. Ferro-actuate switches operate upon the approach of a simple piece of ferrous material i. E. Mild steel.
The switches and its actuator must be brought with in specific proximity to each other (operating distance) the actual distance in any particular case will depend on their relative attitude.
Application: Limit switch, door interlocks, alarm system, batching and timing mechanisms.
Operating Characteristics:
Airgap@"make"/"operate" 1/4" typical
Airgap@"break"/"operate" 9/32"typical
Hysterisis 1/32"typical
Electrical Characteristics:
Contact Resistance 100mOhm(max)
Breakdown Voltage 200Vdc (min)
Insulation Resistance 1000MOhm(min)
Contact Switching rating 10VA
Switches Voltage 100Vac/Vdc(max)
Switches Current 300mA(max)
Bounce Time 0.4ms(max)
Operating Life 100M operations
Operating Temperature -40 ~125 degree C
