Product Specifications
| Prod Model: |
Honghua |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Spare Parts: |
Supply for Whole Year |
| Application: |
Ferroalloy, Femn, Fecr, Fesi |
| Maintenance: |
Esay Maintenance, Long Life |
| Certificate: |
ISO9001: 2000 |
| Type: |
Machines Before Furnace |
Product Description
Applications:

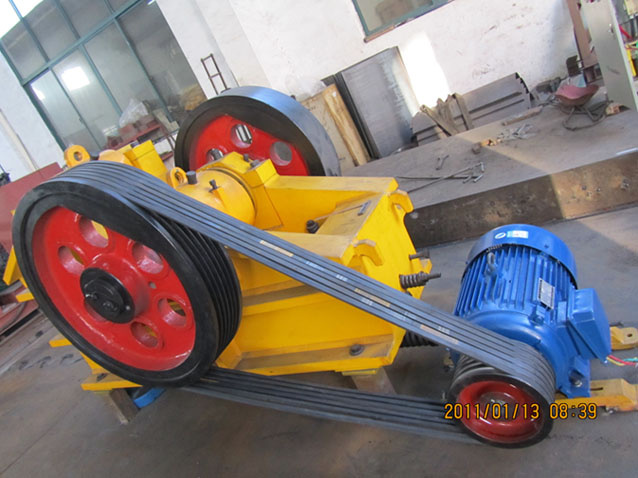

It is specially designed that is very powful and it suitable for crushing very hard ferroalloy, such as ferro chrome, ferro tungsten, ferro vanadium, ferro molybdenum, and other ferro alloys.
Our company is the leading one in manufacturing field of ferro alloy crusher in China. Our crusher has a simple structure with strong resistance to shock and it is stable and uniform operation.
Features:
1. High strength, rugged construction
The racks are made up of high quality alloy steel.
The maximum compressive strength of the ferro alloy it can bear: 1500Mpa
2. Curve shape crushing cavities
Easy dischargr materials, it can prevent materials from sticking The grain size of production is more uniform
3. Toothed plate is made of ZGMn13Cr
Circular-arc design which can prevent materials from sticking
Use life: 2000T/set, lower price then others
4. Toggle plate and toggle plate seat are made up of hige quality alloy steel After heat treatment, the contact surface has a higher hardness
5. Connecting rods and moving jaw:
Adopt new designed construction and speciall materials which make them more strengther And the structure is more reasonable
|
Model |
PEC5023 |
PEC3015 |
PEC2009 |
|
Material inlet |
500*230mm |
300*150mm |
200*90mm |
|
Feeding grain size |
≤ 250*250*70mm |
≤ 150*150*60mm |
≤ 35*35*35mm |
|
Discharge outlet size |
40-100mm |
10-60mm |
≤ 10mm |
|
Adjustable output |
2-15T/h |
1-5T/h |
0.5T/h |
|
Adjustable grain size |
25-70mm |
10-50mm |
1-5mm |
|
Motor model |
Y-315S-6 |
Y-225M-6 |
Y-180L-6 |
|
Rpm/kw |
980rpm/75KW |
960rpm/30KW |
975rpm/15KW |
|
Gross weight |
About 21T |
About 7T |
About 2.6T |
|
Size |
3440*1906*2190mm |
2400*1550*1500mm |
1580*560*900mm |
Honghua Chemical Metallurgy Machine Manufacture., Ltd, a ISO9001: 2000 certified company, was founded in 1997. Our company located in Zhangjiagang city, integrating R&D and sale. Since its inception, it has been awarded Integrity Enterprises and Trustworthy Enterprises from Zhangjiagang Govt.
We specializes in designing and producing forged material, wellhead equipment( API 6A valves), API 6D pipe line valves, valve parts, X-mas tree, manifold, BOP, tubing head, casing head, tee, spool, hanger, flange and OEM service too. We have the certifications such as ISO9001, CE, API6A, API6D, API16A, API16C.
We welcome all friends' sincere cooperation and sincerely hope to be your business parter.
