Product Specifications
| Prod Model: |
EJH-14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Main Material: |
Stainless Steel 304 |
| Detection Window Size: |
Regular or Custom Made |
| Type 1: |
Metal Detector Head |
| Type 2: |
Ferrous Non Fe Metal Detector |
| Installation: |
Install The Conveyor Through Detector |
| Certification: |
FDA |
| Application: |
Foods,Plastics |
Product Description

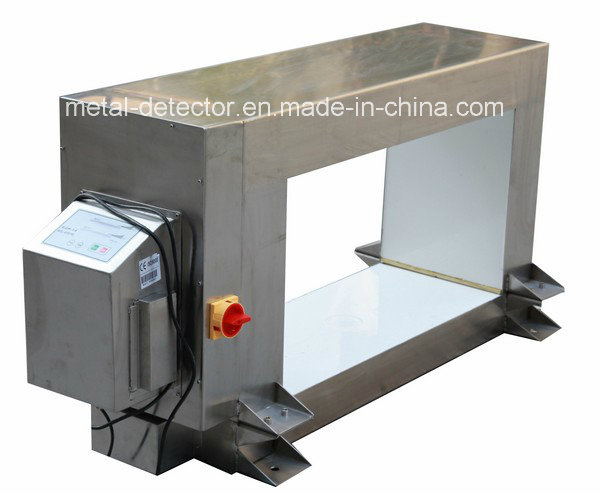

Ferrous Non-ferrous and Stainless steel all metalllic objects Conveyor belt type
industrial Metal Detector Head
Application
Mainly used to detect foods,pharmaceuticals,rubber,plastics, recycling and other industry testing of raw materials or products falling inclusion or omission of iron, lead and various metals impurities.
Features
Rack stainless steel structure, durable corrosion.
Dual-channel detection, the two signals detected Ferrous, non-ferrous,stainless steel metals.
Good stability, strong anti-interference, can be placed in a larger place vibrations.
Can support production lines or automatic control devices.
Have a strong ability to inhibit the effect of the product on the waste material, high temperature materials etc,such great material also has high sensitivity
The detector head can be split,easy to install into conveyor
Technical Parameters
Detection size:
Detection tunnel height:80mm to 600 mm etc,.
Detection tunnel width:300mmto1000mm etc,.
Sensitivity
| Tunnel size (WxH) | 30x10cm | 40x15cm | 50x20cm | 60x30cm | 70*40cm |
| Ferrous | ≥0.8mm | ≥1.0mm | ≥1.2mm | ≥2.0mm | ≥3.0mm |
| SUS 304 | ≥1.8mm | ≥2.0mm | ≥2.5mm | ≥4.0mm | ≥5.0mm |
above sensitivity based on thestandard metal bead detection not carry products,and the tunnel sizes are customized per each customer's requirements.
Main material:stainless steel 304.
Power supply:220/380V 50Hz/60Hz,power 120W.
Conveyor transmiting speed:10 to 40 m/min(adjustable).
Alarm system:sould and light alarm.
