Product Specifications
| Prod Model: |
(CF-V4) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Any Color Is Ok |
| Material: |
as You Required |
| Certificate: |
ISO:9001:2008 |
| Warranty: |
One Year |
| Installation: |
Engineer Guide and Train Workers |
| After Sale Service: |
for Whole Using Life |
| Shipment: |
by Sea or Land |
| Export Markets: |
Global |
| Operational Method: |
Continuous |
| Structure: |
Rotary Type Drier |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Agitation |
| Heating Mode: |
Transmission |
Product Description

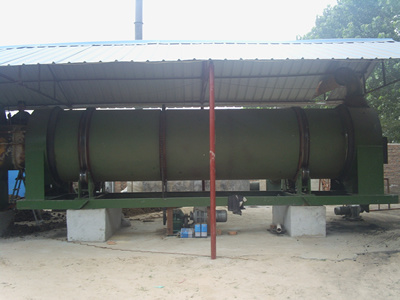

Bio-Fertilizer Dryer Machine
1. HDP series Bio-Fertilizer Dryer Machine, dryer equipment
HDP Series non smelly chicken, pig, cow dung dryer machine (dryers) are suitable for large and medium-sized cultivation farms and the area where aquaculture industry are concentrated. It is used for treating livestock and poultry excreta.
2. Bio-Fertilizer Dryer Machine, dryer equipment uses chicken, pig manure as raw material which does not contain any chemical composition, due to the chickens, pigs digestion is poor, only 25% of consumed nutrients, 75% nutrients of the chicken feed were discharged together with the dung. So that the dry finished products contain nitrogen, phosphorus, potassium, organic matter, amino acids, proteins and other ingredients. Pig manure dryer not only has created economic benefits for companies, but also has made a great contribution to human being's environmental engineering. Our deodorant equipment is patented products, the deodorant effect can reach the second level standard of national.
3. Technical Parameters of Bio-Fertilizer Dryer Machine:
Indicate: This technical parameters takes pure chicken manure for example, raw material containing 65% moisture, the product contains 14% moisture. Our factory can order all kinds of low temperature drying machines and dryers as the request of the clients.
|
Type |
diameter (mm) |
length (mm) |
Gradient (º C) |
Rotational (r/min) |
Prod-capacity (kg/h) |
Coal consumption Kg/h |
power kw |
overall dimention (L× W× H) (mm) |
|
HDP10 6 |
1000 |
6000 |
5 |
8 |
280 |
40 |
10.2 |
6300× 1360× 1700 |
|
HDP10 9 |
1000 |
9000 |
5 |
8 |
400 |
50 |
11.7 |
9300× 1360× 1700 |
|
HDP14 6 |
1400 |
6000 |
5 |
8 |
500 |
75 |
15.2 |
9300× 1760× 2140 |
|
HDP14 9 |
1400 |
9000 |
4 |
6 |
680 |
85 |
16.7 |
12000× 1760× 2140 |
|
HDP18 9 |
1800 |
9000 |
5 |
6 |
850 |
105 |
20.7 |
12000× 2160× 2540 |
|
HDP18 12 |
1800 |
12000 |
3.5 |
5 |
1100 |
83 |
22.9 |
12000× 2160× 2540 |
|
HDP20 12 |
2000 |
12000 |
3.5 |
4.5 |
1500 |
125 |
31.2 |
12000× 2360× 2740 |
|
HDP25 12 |
2500 |
12000 |
3.5 |
4.5 |
2000 |
146 |
34.2 |
25000× 2860× 3240 |
Zhengzhou Taida Mining and Metallurgy Equipment Co., Ltd is an import&export joint-stock enterprise, producing mainly drying, mining, metallurgy and construction materials equipment and forming R&D, production and sales into an integral system. The headquater of the company is located in Hi-tech Development Zone, Zhengzhou, covering an area of 20, 000 square meters. It has three branch companies and a R&D department, owning RMB 50 million in fixed assets, more than 500 employees, and an annual output of over 500 sets of complete machines and the production capacity of more than 10, 000 tons accessories. With the introduction of technology, craftsmanship and testing base which are advanced both at home and abroad.
We provide five kinds of products: Energy-saving dryers, Heating Equipments, Mineral dressing products, Sand making products, Normal atmosphere gasifiers. Main products include: Rotary dryer, Rotary Drum Agglomerator / Granulator, Chicken manure dryer, Muddy Material dryer, Coal Slime dryer, mesh-belt dryer, Cereal tower dryer, Rotary kiln, Vertical mechanized kiln, Sand dryer, and other industry dryers, drying machine, gasifier, furnace and every kind of crusher or mill and so on.
Taida company advances with the time, brings forth and innovates new thoughts, makes good advantage of technology and personnels, and focuses on technology development as well as products renovation. Since we adopt the internal control standard which is superior to national machinery industry standard and carry out the three-level self-inspection quality managing accountability system strictly, all of our products have got acceptance for several consecutive years in the annual national inspectation of mining machinery. Each year we are granted by the province government"star enterprise" and "advanced unit"as well as the honour of "faith-keeping and law-following enterprise".
