Product Specifications
Product Description

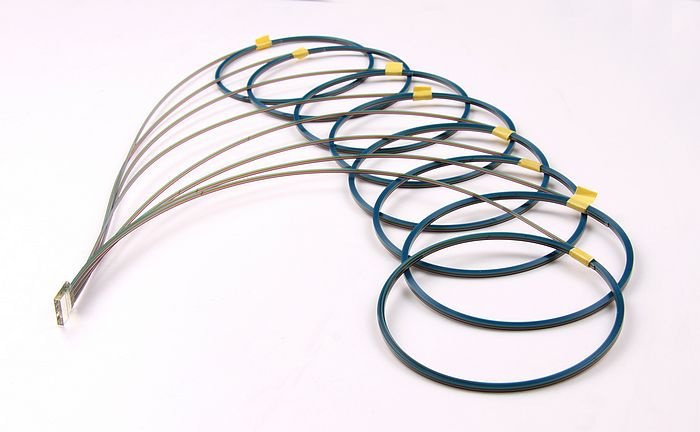

TYCOFIBER supply fiber array series products with high perfermance...Quartz, Pyrex and silicon is the main materials we use. Polishing angel as clients wish. Such as 0 degree, 8 degree, 12 degree. OEM is also acceptable.
Feature:
1: Excellent fiber core position accuracy
2: Telcordia GR-1221-CORE compliant, tested to 5000 hours
3: Glass V-groove substrate and lid for effective UV curing
4: Custom design flexibility, V-groove created in-house
5: Hermetically sealed package with metalized fiber available
6: AR coating available.
Specification:
Materials: Quatz, Pyrex, Silicon
Channel Count: 1, 4, 8, 16, 32, 40, 48, 64
Core Spacing: 250, 127 / 0.7
Fiber Arry Lenght(m): 1.5± 0.1
Polishing Angel(°): 0, 8, -8(± 0.3)
Polishing flatness: 5 fringes@633nm
Working Temperature(Degree): -40 to 85
| TFA- | XX- | X- | XX- | X- | X- | X- |
| T=TYCO | CHANEL COUNT | Material | Output Fiber Type | Fiber Type | Fiber Color | Polishing Angle |
| F=FIBER | 01=1 CHANNEL | Q=quartz | 12-1.2m | B=250um Nude Fiber | C=colorless | A=+8 DEGREE |
| A=ARRAY | | P=Pryex | 15=1.5m | L=900um Loose Tube | W=white | B=-8 DEGREE |
| | | | XX=according to clients | T=900um Tight Tube | B=blue | C=0 DEGREE
|
| | | | | | X=according to clients | X=according to Clients |
SHENZHEN TYCOFIBER Co., Ltd is a high technology corporation which specializes in developing, producing and promoting basis materials of Optical components including quartz substratum, fiber capillary, glass tube, fiber pigtail, V-Groove, fiber array etc. We are devoted to supplying the most reliable and the most precise optical basis materials for optical components industries.
TYCOFIBER developing team is made of professional persons who own ample experiences in optical, mechanical, material and computer software fields. Among them, the core engineers have plenty experience in top end optical communication fields with many years, which make our company hold great superiority in fiber basis material field. We have the most advanced producing, testing and sealing facilities compared to our competitors, all the products are in processing, testing and sealing according to international quality standard system.
Now SHENZHEN TYCOFIBER Co., Ltd have good cooperations with many famous international companies. Our products have built good reputations in most clients from Europe, American, South East Asia. We stick to "TECHINIC FIRST, QUALITY FIRST" as TYCOFIBER'S mission and core idea.
