GN-TP3015 700W Extensional dual-use metal laser cutting machine
Equipment Feature1. Multi-functional: Not only used for plate cutting, but also for round tube and square tube and all shapes of tube cutting.
2. Can cut crossed lines hole in the main tube in different direction and different diameter, meet the condition that the branch tube line and main tube line intersect vertically eccentric and the eccentric vertical. (main tube and branch tube are round).
3. Can cut crossed lines hole on the end part of tube, meet the branch tube line and competent axis eccentric and the eccentric vertical intersection or Inclined intersection condition.
4. Can cut all kinds of graphics in the round tube wall; Can cut oblique cut surface in the end of round tube.
5. Can cut crossed lines hole end which is intersectant with the circinate main branch tube; Can cut any graphic in the square tube surface.

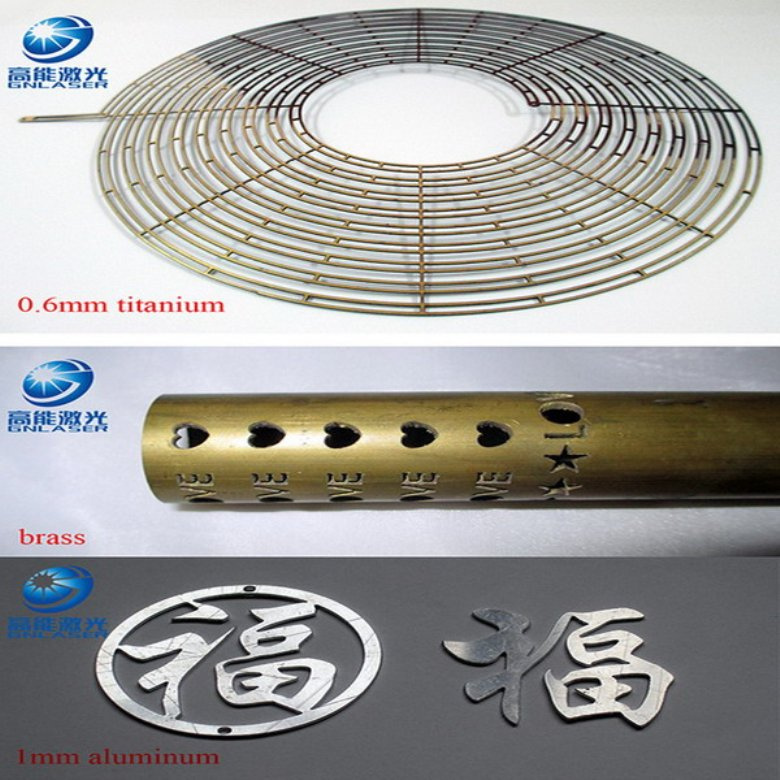

Applicable MaterialsIt is suitable for cutting of plate or pipe of Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, galvanized sheet, pickle sheet, copper, silver, gold, monocrystal line silicon, poly silicon, etc.
Applicable IndustryIt is widely applied in fabrication industries of advertising trademark, metal structure, cabinets, metal processing, electrical cubicle switchboard, textile machinery, cereal processing machinery, kitchenware, lamps and lanterns, automobile, metal handicraft article, saw blade, electrical component, medical apparatus and instruments, aero-space, ironware, cutting and measuring tool, etc.
After-Sale ServiceWe can supply engineer go to your country to help you install machine and do training after-service together.
Vedio show:
YAG 850W
CY3015-850W with protective cover 3mm stainless steel cutting.wmv :
goo.gl/poaxl
CY3015-850W 5mm aluminum sheet cutting .wmv
goo.gl/WF36s
CY3015-850W 10mm carbon steel cutting.WMV
goo.gl/NQSE7
Double use YAG laser cutting machine
GN-TP3015 tube cutting .wmv
goo.gl/fAFDp
Irregulous(square, oblate) pipe cutting machine
GN-CT3000
CT3000 cutting stainless steel.wmv
goo.gl/DMS3o
CT3000 oblate tube cutting.wmv
http://goo.gl/yU4Ao
Fiber 1.5mm carbon steel cutting.wmv :
goo.gl/8XZVt
Before send us inquiry, please consider about below questions:
1,Which material do you need to cut ?
2,What is working size and thickness ?
3,What is your business industry ?
GN laser will try our best to help you!
Model Type |
GN-TP3015-F2000 |
Laser Working Medium |
fiber laser |
Laser Wavelength |
1064 nm |
Maximum Output Power |
2000W |
Tube Wall cutting thickness |
Under 12mm |
Tube Max cutting length |
Under 3000/9000/12000mm |
Tube cutting diameter |
10-320mm |
Maximum cutting speed |
21000mm/min(1mm steel plate) |
Maximum cutting thickness |
≤ 16mm(depend on material) |
Plate cutting area |
3000× 1500mm |
Axial location accuracy |
≤ ± 0.08 mm/m |
Repeating location accuracy |
≤ ± 0.04 mm/m |
Power supply |
380V/50Hz/100A |
Cutting gas |
Oxygen, Nitrogen or Air |
Gas pressure |
> 5kg |
