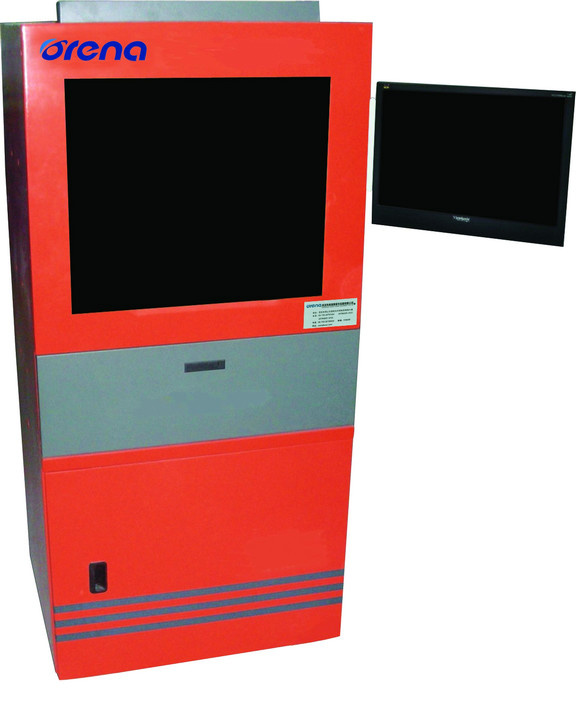

Fiber laser machine Features:
1. Excellent beam quality;
2. Low use-cost;
3. Long working life and maintenance-free operation;
4. High processing speed
Fiber laser marking machine parameters
Laser Power: 15W
Laser Wavelength 1064nm
Laser Pulse Frequency ≤ 50kHz
Marking Depth 0.3mm
Marking Speed ≤ 12000mm/s
Min Character 0.02mm
Repeat Accuracy ± 0.01mm
Marking Scope 110mmX110mm
Optional Marking Scope 75mmX75mm/150mmX150mm
Power Supply 220V//50Hz/15A
Gross Power 1.8KW.
Supports: All windows TTF fonts, and a laser marking special fonts, supports a variety of graphics, such as: PLT, BMP and so on. The date of production, automatic serial numbers, bar code (scanning guns), etc.
Applications: Widely applied in electronics separation components, integrated circuit, electrical engineering circuit, mobile communication, hardware, tools, kitchen wares, tool fittings, precise apparatus, eyeglasses and clock, computer keyboard, jewellery accessories, plastic buttons, water heating fittings, sanitary ware, PVC pipelines, medical apparatus and packing container, etc.
|
Output power of laser |
10%~100% continuously to be adjusted |
10%~100% continuously to be adjusted |
|
Output frequency of laser |
20KHz~100KHz continuously to be adjusted |
20KHz~100KHz continuously to be adjusted |
|
Carving scope |
150mm× 150mm |
150mm× 150mm |
|
Matching scope |
50mm× 50mm 100mm× 100mm |
200mm× 200mm 300mm× 300mm |
|
Minimum line width |
0.012mm
|
0.012mm
|
|
Minimum character |
0.15mm
|
0.15mm
|
|
Repeated precision |
± 0.003mm
|
± 0.003mm
|
|
Laser |
Imported with original packaging |
Imported with original packaging |
|
System operation environment |
WindowsXP/2000/98 |
WindowsXP/2000/98
|
Shenzhen Orena Laser Equipment Co., Ltd., the joint venture company of USA ORENA in China, is a high-tech enterprise professionally devoted to research, production and distribution of the laser processing equipments. As the world famous laser mark control system integrator and laser manufacturer, it is one of the pioneers for China industrial laser equipment manufacturing.
The company was founded in 1995, always persists in the guidelines regarding market as the orientation, technology as the core and service as the tenant, to research and produce all kinds of laser equipment fulfilling the customers' requirements positively. Currently, it has formed series laser processing equipment production line, both offering single and a batch of laser processing equipments for customers, as well as being qualified for providing the customers with a full set of laser processing solutions. Therefore, it is your ideal partner. With many years' research and development, ORENA Laser Equipment Co., Ltd., has become one of the domestic leading and international synchronous laser equipment manufacturer. Supported by the strong scientific research strength, it has the laser equipments distribution and maintenance network featured with the most swift response speed in domestic market. In recent years, the annual production and distribution quantity has been increased by 45% compared to the last year, and its products have been widely used in the electronics, integrated circuit, instruments and meters, printed circuit, computer manufacturing, mobile communication, auto fittings, precise building materials, costume and jewellery, etc
