Product Specifications
| Prod Model: |
KFD-S10/20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable For: |
Any Material |
| Carving Material: |
Metal Alloy |
Product Description
Brief introduction

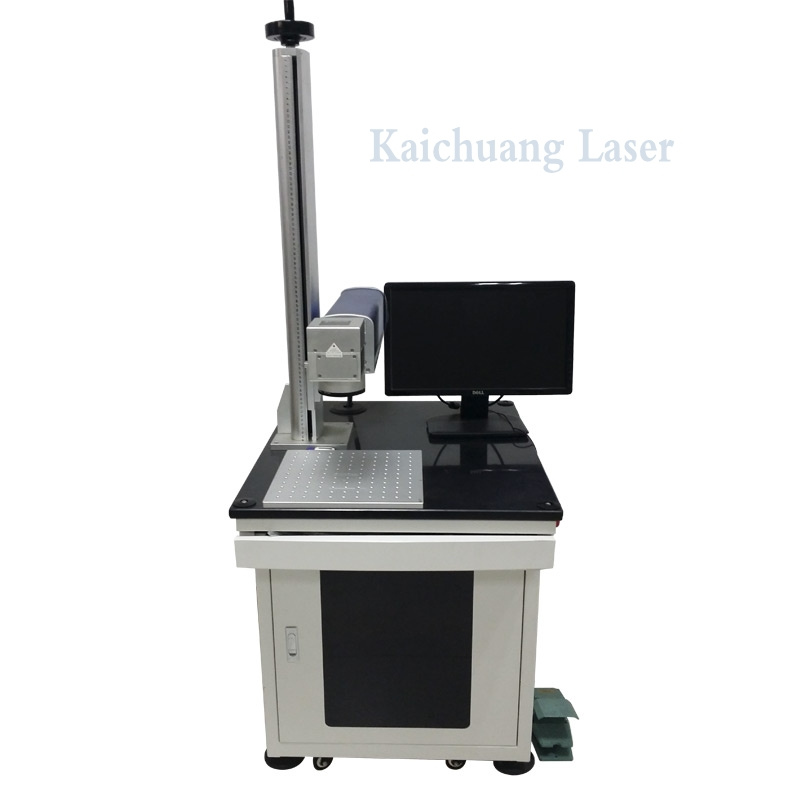

The fiber laser marking machine adopts original imported laser and galvanometer scanning system.The output power is stable,optical mode is good,beam
qualityis brilliant,marking speed is fast,effect is nice and efficiency is high.
All these advantages make the machine meet customer's demand for large scale
production.
The appearance is beautiful,structure is firm,operation is simple,depreciation cost
is low.It can run for a long time without any trouble,and the maintenance is
free.So it can fully meet the demand of industrialization continuous working.
Equipment features
1.It adopts integrated design of whole structure,equipped with accurate focusing
and adjusting tools.The operation is much more humanized.
2.Adopting the imported IPG fiber laser from Germany and taking use of origin
isolator to protect the fiber laser window,have enhance the stability and laser life.
3.The beam quality is good,the minimum diameter of focusing spot can be 20um.
It is especially suitable for precise marking.
4.Equipped with imported high speed galvanometer scanning system
makes the marking speed extremely fast with high precision.
5.Small in size makes the machine suitable for working in a narrow environment.
6.Long using life,further more,there is no need to replace expensive parts.
7.The processing efficiency is high,it is about 3-5 times faster than the
traditional marker.
8.KFD series fiber laser machine adopts the high speed USB communication
interface,which makes the operation easier.For this advantage,the machine
meets the customer's demand for easy carry.
Sample
Material:any metal,engineering plastics,plating,coating materials,spray material,
plastic,rubber,epoxy resin,ceramic,ect.
Industry:the phone keypad,translucent plastic key,electronic components,
integrated circuits,electrical appliances,communication products,sanitary ware,
tools accessories,knives,glasses,watches,jewelry,automobile accessories,
bag decorated clasps,cookers,stainless steel products and other industries.
The story written on paper there is always an ending,the story written in my heart that no one knows the outcome.---Carys Li
What is your story?
Parameter
Model |
KFD-S10/20 |
|
Laser power |
10w/20w |
|
Laser wavelength |
1064nm |
|
Beam quality |
m²≤1.6 |
|
Laser repeating rate |
20KHz~100KHz |
|
Marking speed |
≤8000mm/s |
|
Min line width |
0.01mm |
|
Work area |
70*70mm,100*100mm,160*160mm |
|
Min character |
0.15mm |
|
Repeating orientation precision |
±0.002mm |
|
Average power consumption |
<500w |
|
Power |
220V 50Hz 5A |
|
Cooling style |
air cooling |
|
Dimensions |
660*760*1450mm |
|
Machine weights |
120kg |
