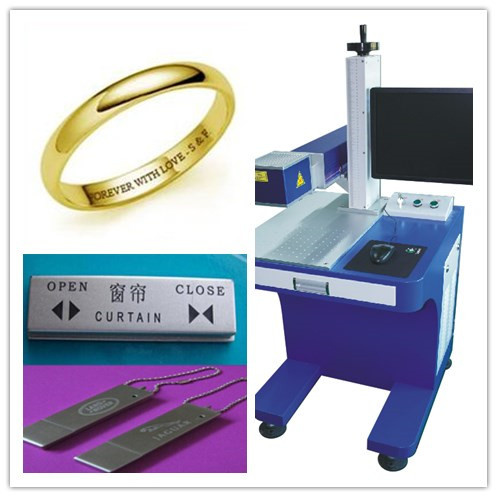

Fiber Laser Marking Machine
Product Specifications
| Prod Model: |
ZY-20W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
L950*W800*H980mm |
| Laser Power: |
10W/20W/30W/50W |
| Certification: |
CE/FDA |
| Input Power: |
220V/50~60Hz |
| Marking Material: |
Metal and Nonmetal |
| Language: |
English |
| Laser Marking Software: |
Ezcad Software |
| Laser Source: |
Max |
| Laser Marking System: |
Windowsxp/2000/98/7system |
| Marking Type: |
Fiber Laser Marking Machine |
Product Description
Application Industries:
It is widely be used in plastic buttons, charger, light-penetrating mobile phone keys and other light marking workpieces. It is especially suitable for field with higher requirements in depth, smoothness, finesse and so on, such as watches, bitmap marking, communications industry, etc
Technical parameters:
| MODEL | ZY-F10W | ZY-F20W | ZY-F30W | ZY-F50W |
| Laser power | 10W | 20W | 30W | 50W |
| Length of laser weave | 1064nm | 1064nm | 1064nm | 1064nm |
| Marking scope | 110x110~ 250x250 | 110x110~ 250x250 | 110x110~ 250x250 | 110x110~ 250x250 |
| Mark depth | 0.3mm | 0.4mm | 0.6mm | 1.0mm |
| Marker speed | ≤15000mm/s | ≤15000mm/s | ≤15000mm/s | ≤15000mm/s |
| Min line width | 0.05mm | 0.05mm | 0.05mm | 0.05mm |
| min character | 0.15 mm | 0.15 mm | 0.15 mm | 0.15 mm |
| Repeat precision | ±0.002mm | ±0.002mm | ±0.002mm | ±0.002mm |
| Gross power | 0.4KW | 0.5KW | 0.6KW | 1KW |
| Power supply | 220V(±10%)/50Hz/ 3A | 220V(±10%)/50Hz/ 3A | 220V(±10%)/50Hz/ 3A | 220V(±10%)/50Hz/ 3A |
| Operating temperature | 10-35°C | 10-35°C | 10-35°C | 10-35°C |
Standard: CE/ FDA
Material:
| 17-4 PH stainless steel | Magnesium |
| 303 stainless | Metal-plated ceramics |
| 4043 steel | Molybdenum |
| 6061 Aluminum | Nickel plated 1215 mild steel |
| ABS (white/black) | Nickel plated brass |
| Aluminum, 6061 | Nickel plated gold |
| Aluminum, yellow chromate | Nickel plated Kovar |
| Bayer 2807 Makrolon polycarbonate | Nickel plated steel |
| Bayers bayblend FR110 | Nylon |
| Black/white ABS | PEEK, white |
| Brass | Polybutylene Terephthalate |
| Black/white polycarbonate | Polycarbonate (black/white) |
| Brushed aluminum | Polycarbonate resin 121-R, GE Plastics |
| Carbon fiber | Polycarbonate, Bayer 2807 Makrolon |
| Carbon nanotube | Polysulphone |
| Ceramics, metal-plated | Rynite PET |
| Clear coat anodized aluminum | Santoprene |
| Cobalt chrome steel | Silicon carbide |
| Colored delrin (black/brown) | Silicon steel |
| Compacted powder iron with phosphate coating | Silicon wafers |
| Copper | Stainless steel 303 |
| DAP - Diallyl Phthalate | Stainless steel 17-4 PH |
| Delrin, colored (black/brown) | Steel 4043 |
| GE Plastics polycarbonate resin 121-R | Steel, machine tool |
| Glass filled PEEK | Various inconel metals (nickel-chromium super alloys) |
| Glass filed Teflon | White PEEK |
| Hard coat anodized aluminum | Yellow chromate aluminum |
| Inconel metals (various) | Zinc plated mild steel |
| Machine tool steel | And Many More! |
Operator system: Window 7 or Window XP
The warranty: The machine is guaranteed for one year.
Delivery: 15 days
Samples:
Guarantee and after sale service (0:p)
1) Guarantee for one year excluding comsumable parts. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) Your order will be shipped within 3-5 business day after payment received.
3) 24-hour technical support on internet or by telephone, free instructions and problem solving.
4) Free installation and fully test before send and free training for operators.
Please advise us the following information, then we can recommend you the most suitable model.
1. The exact material you want to process
2. The maxi. Output power you demand.
We are look forward for agency abroad.
Please feel free to contact me if you are interested in.
Shenzhen Zhengya Laser Technology Co., Ltd., located in Longgang District in Shenzhen China. Our company is a professional engaged in laser equipment, and regards production and sales as one.
Our company mainly produces industrial laser marking machine, laser cutting machine, laser welder machine, laser engrave machine. They are widely used in electronics, machinery, instrumentation, automotive, button aerospace and other field. Products are exported to Taiwan, Vietnan, Chinese, Malaysia, India, Iran, Japan, Singapore and other countries and regions, deeply well received by the patriotic and overseas customers.
Our company has equipments varying from high to low. Goods are available in all varieties. Users can choose goods according to their own need. At the same time. Our company lays stress on the humanized design and can offer all kinds of automatic and swoop equipped custom-tailor, according to the actual situation and specific requirements of customers.
Shenzhen Zhengya Laser Technology Co., Ltd., located in Longgang District in Shenzhen China. Our company is a professional engaged in laser equipment, and regards production and sales as one.
Our company mainly produces industrial laser marking machine, laser cutting machine, laser welder machine, laser engrave machine. They are widely used in electronics, machinery, instrumentation, automotive, button aerospace and other field. Products are exported to Taiwan, Vietnan, Chinese, Malaysia, India, Iran, Japan, Singapore and other countries and regions, deeply well received by the patriotic and overseas customers.
Our company has equipments varying from high to low. Goods are available in all varieties. Users can choose goods according to their own need. At the same time. Our company lays stress on the humanized design and can offer all kinds of automatic and swoop equipped custom-tailor, according to the actual situation and specific requirements of customers.
Shenzhen Zhengya Laser Technology Co., Ltd., located in Longgang District in Shenzhen China. Our company is a professional engaged in laser equipment, and regards production and sales as one.
Our company mainly produces industrial laser marking machine, laser cutting machine, laser welder machine, laser engrave machine. They are widely used in electronics, machinery, instrumentation, automotive, button aerospace and other field. Products are exported to Taiwan, Vietnan, Chinese, Malaysia, India, Iran, Japan, Singapore and other countries and regions, deeply well received by the patriotic and overseas customers.
Our company has equipments varying from high to low. Goods are available in all varieties. Users can choose goods according to their own need. At the same time. Our company lays stress on the humanized design and can offer all kinds of automatic and swoop equipped custom-tailor, according to the actual situation and specific requirements of customers.
