Product Specifications
| Prod Model: |
CTGD-F-20BW(S) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Usage: |
Plastic |
| Power: |
Small Power |
| Drive Type: |
Hybrid Servo Drive |
| Certification: |
CE, ISO 9001 |
| Laser Type: |
Fiber Laser |
| Control: |
Automatic |
| Current: |
AC |
| Condition: |
New |
Product Description

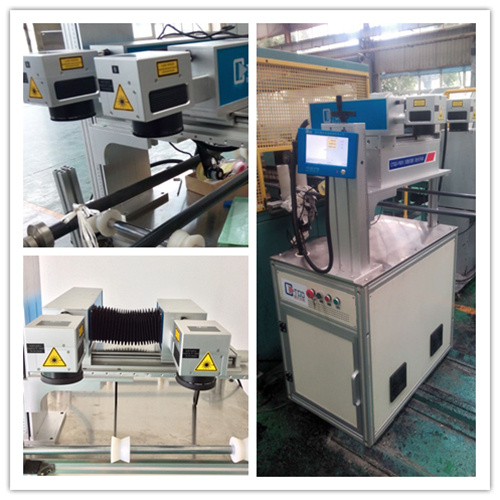

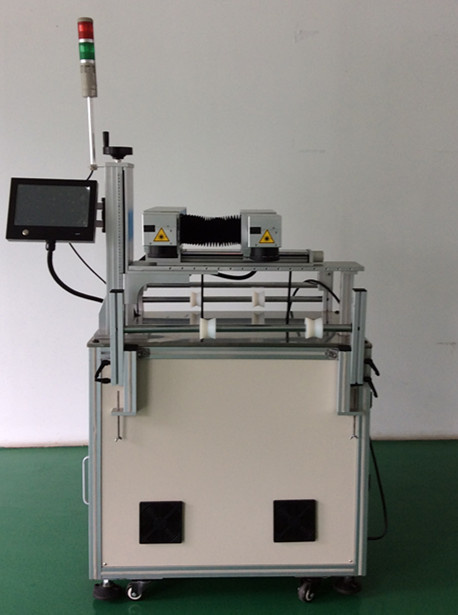

20W/30W Fiber Laser Marking Machine with Two Heads
CTGD-F-20W/30W adopts international advanced 20W/30W pulsed lasers, with imported high precision, highspeed optical scanner system and the focusing system. Machine fully enclosed design, the natural air-cooled, red indicates positioning, completely maintenance-free. The machine power and control part of the highly integrated, it has one-click touch panel, no red tape on / off button sequence, the use of line type air plug plug, installation and operation is very simple and free, completely done, "fool"mode of operation.
products indicators:manufacturing, testing, product implementation and acceptance of national standards with reference to:| GB10320 laser equipment and facilities, electrical safety |
| GB7247 radiation safety of laser products, equipment classification, requirements and user's guide |
| GB2421 basic environmental testing procedures for electronic products |
| GB/TB360 energy laser power test instruments standard test |
| GB/T13740 laser radiation divergence angle of the test method |
| GB/T13741 laser beam diameter of radiation test methods |
| GB/T15490 total standard solid-state lasers |
| GB/T15175 main parameters of solid-state laser test method |
| GB/T13862-92 laser radiation power measurement method |
| GB2828-2829-87 batch cycle inspection Sampling procedures and sample forms |
Relevant national standards should refer to the following:| GB / T 5226.1 Industrial machinery electrical equipment Part 1: General requirements |
| GB / T 10435 workplace health standards of laser radiation |
| GB / T 13384 General technical conditions for packaging machinery and electronic products |
Our honor:
Significant advantages:1) single-mode laser output, high beam quality
2) the gain medium surface area / volume ratio, without the need for special heat treatment and natural ventilation
3) the inherent flexibility of the closed optical path, the laser processing equipment has been designed with greater flexibility
4) no internal optical laser lens, no need to adjust the optical path, truly maintenance-free
5) the use of low environmental requirements, the average time between failures 100,000 hours
6) small size, particularly suitable for integration into production lines, online operation
7) very low power consumption, full-load power consumption of only 105 W
After-sale service:a) The supplier is responsible for the user on-site installation and testing. Supplier's technical clerks arrive at user's pointed address on time.User assist supplier's technical clerk on installation and testing,
b) The product warranty is 12 month, dated from the goods approved date by the buyer. During the warranty period, equipment failure and mechanical damage (except human factors and force majeure), the supplier is responsible for free replacement,Within a year, in addition to materials of relevant expenses (such as travel, etc.) shall be borne by the buyer.
c) Supplier responsible for supplying spare parts of the equipment for long-term to the buyer. After the warranty period ,user shall afford the cost of the replacement. And supplier should provide long-term technical advisory services to use.
d) The supplier is responsible for user's personnel professional training. Supplier appoint 2-3 person for training operation, training content includes maintenance, personnel training, training time not less than 5 working days.
e) Supplier is responsible for providing free technology, process and other comprehensive solution, according to the user's request while the device software, free upgrades, equipment modification, replacement and other upgrades will be supplied.
f) The supplier is responsible for timely sending professionals to provide equipment maintenance personnel service and maintenance. (For at home, trouble will be removed within 24 hours.)
g) Note: if you need our engineers to the place of the buyer, installation and debugging, the occurrence of related travel expenses shall be borne by the buyer.
