Product Specifications
| Prod Model: |
FC-APC-S1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connector: |
Sc |
Product Description

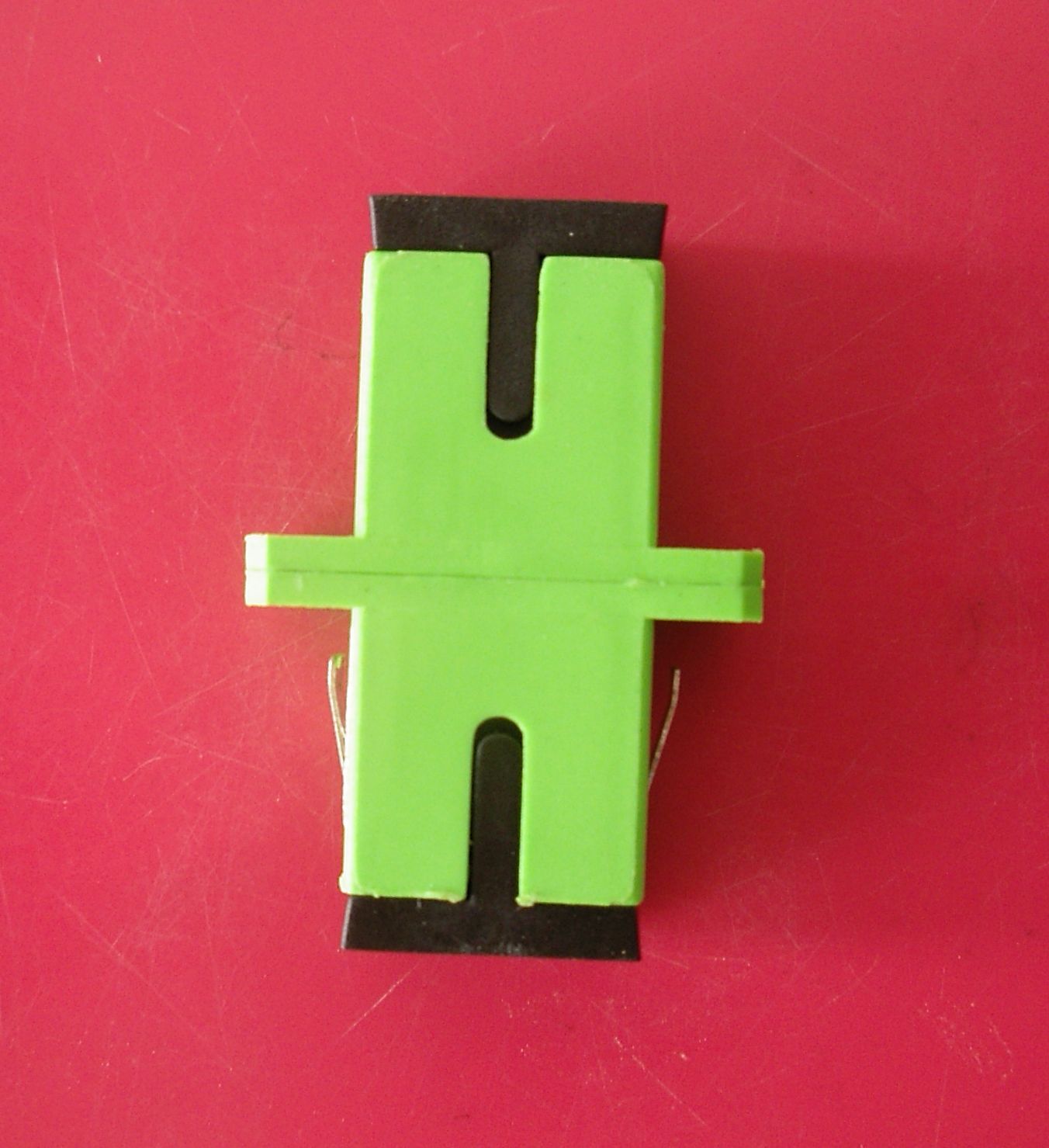

Fiber optic Adapters
Fiber optic adapters are used in connecting fiber optic connectors, it is called Hybrid fiber optic adapter when the opposite connectors are different.
Zirconia sleeve
Good compatibility,
High size precision,
Good duplication,
Good interchangeability, good temperature characteristic,
Good reliability and stability,
Easy to operate
Insertion Loss: ≤ 0.2dB(PC/SM), ≤ 0.3dB(PC/MM), ≤ 0.15dB(UPC), ≤ 0.2dB(APC)
Return Loss: ≥ 45dB(PC), ≥ 50dB(UPC), ≥ 65dB(APC)
Exchangeability: ≤ 0.1dB
Tensile strength: ≥ 100N
Durability: 1000times
Operating temperature: -40 ~ 80
Application
Widely used in the ODF, Telecommunication networks
Optical communication system
Optical instruments measuring appliance
Optical fiber sensor
Optical fiber CATV
Local area network
