Product Specifications
| Prod Model: |
FCFPMM13 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Probe |
| Connection Structure: |
FC-MTRJ |
| Certification: |
CCC |
| Brand: |
Fycoo |
Product Description

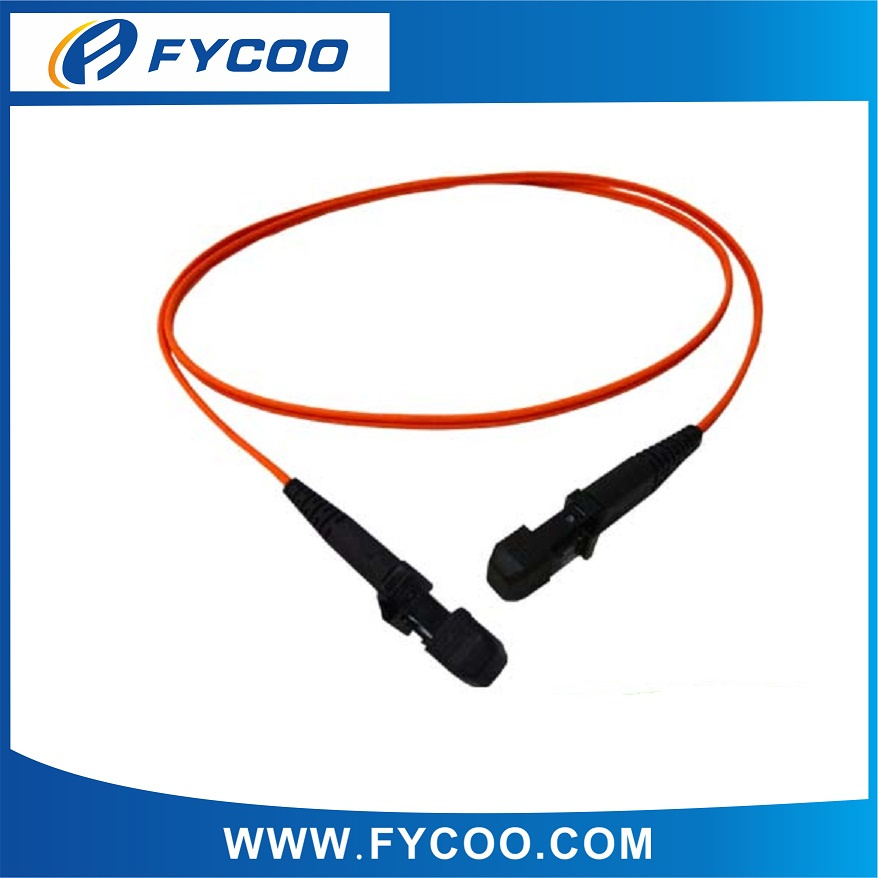

Fiber Optic Patch Cord, MTRJ-MTRJ, MM, SIMPLEX, 2.0/3.0MM
SPECIFICATION:
Fiber Optic Patch Cord, MTRJ-MTRJ, MM, SIMPLEX, 2.0/3.0MM
FEATURE: :
---Low insertion and back reflection loss
---Good exchangeability
---Good durability
---High temperature stability
---Standard: TIA/EIA 568-A compliant
APPLICATIONS:
CATV; Active device interface; Telecommunication networks; Gigabit Ethernet; Interconnection for O/E modules; Data processing networks; Industrial and medical; Premise installation; Optical switch inter-frame connection; Asynchronous Transmission Mode
PARAMETER TABLE:
Single modeMultimode
Insertion loss: <0.3dB<0.3dB
Return loss: ≥ 45dB
Repeatability: ≤ 0.1
Durability: ≤ 0.1dB typical change, 1000 mating
Interchangeability: ≤ 0.2dB
Operating Temperature: -40 to +80º C
ORDER CHOICE:
1. Fan-out patch cord
Simplex/Duplex patch cord
Pigtails
Male or female connector
Different boot size
2. LENGTH: 0.5m, 1m, 2m, 3m, 5m, 10m and others
3. Single mode or Multi-mode
4. Transmission medium: 1). Silicon fiber optic jumper 2). Plastic fiber optic jumper
5. Outer Sheath Material: Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.
Knowledge:
Definition:
1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.
2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.
3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.
Fiber optic patch cable brief introduction
Fiber patch cable is the fiber which connects the computer with equipment., it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.
Struture:
1. It's structure is similar with the structure of coaxial cable, both of them do not mesh shield.
2. The center is glass core of light transferring
3. Core diameter of Multimode fiber is 15μ M ~ 50μ M,
4. Core diameter of Single-mode fiber is 8μ M ~ 10μ M.
5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core
6. A thin plastic coat outside is used to protect the envelope.
