Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Diameter: |
0.9mm,2.0mm,3.0mm |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Single-Mode,Multi-Mode |
| Brand: |
Qianxin |
| Allowed Tensile Strength: |
15kg |
| Core: |
Simplex,Duplex |
| Sheath Material: |
PVC,Lszh |
| Connection Structure: |
PC,FC,LC,St,E2000,etc |
Product Description
Description:

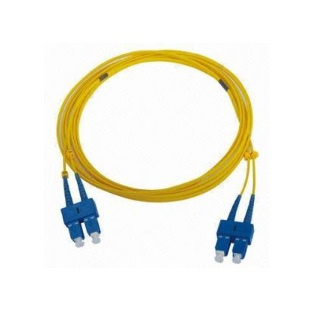

Fiber optic patch cord is widely used for telecommunication network,especially cabling indoor.Generally,Fiber optic patch cord have 4 types of connectors,PC,LC,FC,ST.
Advantage:
1.Compliant with ISO9001-2008,ROHS,meet Telcordia-GR326-Core,JIS C-5973,TIA/EIA 604
2.Advance imported machines and dust-free plants
3.Short lead-time and excellent sell services
4.Low insertion loss and high return loss
5.All specification can be customized
Application:
1.Telecommunication Network
2.CATV
3.Multimedia
4.LAN and WAN
5.Active device termination
6.Test equipment
7.Vedio
Specification:
Item Single-Mode Multi-Mode
Insertion Loss PC≤0.2dB,UPC≤0.2dB,APC≤0.2dB PC≤0.2dB
Return Loss PC≥45dB,UPC≥55dB,APC≥65dB PC≥35dB
Operating Temperature -40°C ~ +85°C -40°C ~ +85°C
Tensile Strength 15kg(except for 0.9mm) 15kg(except for 0.9mm)
Durability 1000 matings, ≤0.2dB 1000 matings, ≤0.2dB
Repeatability ≤0.1dB ≤0.1dB
Interchangeability ≤0.1dB ≤0.1dB
Humidity Cycling 75°C RH 95% ≤0.2dB 75°C RH 95% ≤0.2dB
Vibration 10-55 HZ (3 Axis) ≤0.2dB 10-55 HZ (3 Axis) ≤0.2dB
Impact 1.5m drop,8 cycles ≤0.2dB 1.5m drop,8 cycles ≤0.2dB
Impact
Qianxin High Technology Co., Ltd. Was founded in 1999. With the development, it has become one of the high-tech enterprises in Gui'an Guizhou. In addition, it has a number of research and development, production, technology, sales and service in one of the elite teams.
The company always adhere the environmental protection, science and technology innovation, industry leading idea, devotes to the data center products and solutions, FTTX products and solutions of manufacturing and research. And we have an area of 70000 square meters in the South Park of high-end equipment manufacturing industrial park at Gui'an Guizhou Province. The company will set up sheet metal division, cable division, ODF division, patchcord department, R&D, provides research experimental base for Guizhou scientific research institutions, and plans to establish a postdoctoral workstation.
