Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Feature

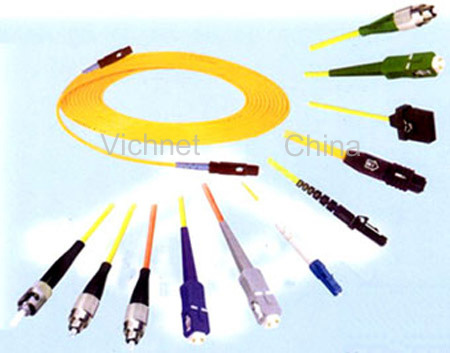

Fiber optic patch is one of the most commom components connecting from the equipment to the fiber optic lind. It is normally used between the Optical line terminal with thick protection layer.
1. Using high precision ceramic ferrule
2. Rubbing exactitude and testing completely
3. Low insertion loss and high return loss
4. High stability and repeat
5. Be according with the Telcordia GR-326-CORE standard
6. Ferrule: Excellent quality and high intensity zirconium dioxide ceramic ferrule
Fiber optic patch application
1. Local Area Network(LAN)
2. Data communication network
3. Telecommunication optical transmission network
4. Optical access network(OAN)
5. Active device termination
6. CATV
7. Fiber optics data transmission(FODT)
Ordering information
Face grinding: PC/UPC/APC
Fiber diameter: 0.9mm/2.0mm/3.0mm
Length/colour/fiber type: According to customer's requirment
|
Connector type |
FC,SC,ST,LC,MU ect |
|
Fiber type |
Single-Mode/Multi-Mode |
|
Operation wavelength |
1310nm or 1550nm |
|
Insertion loss |
<0.25db |
|
Return wave loss |
>50db |
|
Mechanical testing |
Vibration |
10-55hz, 0.75mm single amplitude,30min each direction |
|
Drop test |
Drop highth: 1m ,Fiber longth: 1m ,Drop time:5 times |
|
Durability |
1000 times |
|
Anti-pull power |
90N |
|
Storage temperature |
-40-+85 |
|
Operation temperature |
-40-+70 |
Vichnet Communication Science & Technology Ltd. Is mainly focusing on the Wire Mesh/Basket Cable Tray Systems, wire cable baskets, welded wire cable tray and cable tray installation.
Vichnet China is located in the seashore city Ningbo, benefiting from Ningbo port to export our products all over the world.
With abundant experience and many customers' supports, we are now a leading manufacturer, and supplier of wire mesh cable tray systems, cable basket tray in China.
The capacity of welded mesh cable tray / basket cable tray is 27% stronger than traditional cable trays and cable ladders. Our trays welding strength and loading capacity are higher than standard.
Our company has ISO9001: 2008, GMC, TLC certificates and cable trays have SGS test reports.
We are able to design styles wire mesh cable tray/ cable wire mesh basket in various specifications according to the drawings and/or samples by the clients.
