Ningbo Pulian Communication Technology Co., Ltd. >> Fiber Optic Pigtail

Fiber Optic Pigtail

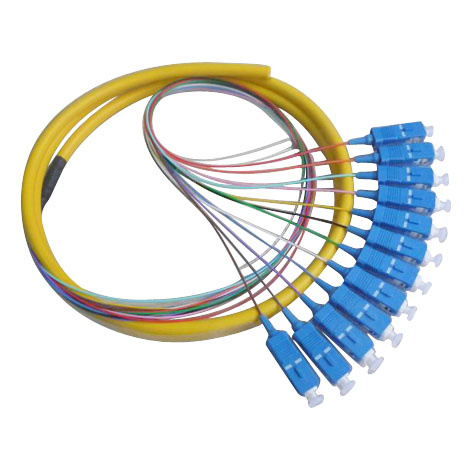

Name: Fiber Optic Pigtail
Brand: China-Manufacturer-Directory.com
SKU: 670501702
Availability: InStock
Rating: 4.7 (40 reviews)

Supplier:	Ningbo Pulian Communication Technology Co., Ltd.
Price:	Negotiable
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	sc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

China Manufacture of Fiber optic pigtail
Low Insertion Loss & High Return Loss
Optional Connector & Length

Feature:
Telcordia's GR-326-Core, IEC Standard
Green Production
Excellent Polished and 100% tested before delivery
High stability various environments
Customize order available
3D fiber interferometer is available

Applications:

1. Telecommunications or Data communications.
2. Computer networks.
3. CATV networks.
4. Offshore, Power Generation, Oil & Gas.
5. Railways.
6. Active device termination.
7. Instrumentation.
Pulian supply your best price and high quality

Fiber optic pigtail Technical Standard:

Insertion Loss: PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; Typical0.1dB;

Return Loss: SM PC≥ 50dB, UPC≥ 55dB, APC≥ 65dB;
MM PC≥ 35dB, UPC≥ 35dB

Interchangeability: ≤ 0.2dB

Salt Spray: ≤ 0.2dB

Repeatability: (1000 times) ≤ 0.1dB

Vibration: (550Hz 1.5mm) ≤ 0.1dB

High Temperature: ( +85 sustain 100 hours) ≤ 0.2dB

Low Temperature: (-40 sustain 100 hours) ≤ 0.2dB

Temperature Circularly: (-40+85 sustain 100 hours) ≤ 0.2dB

Humidity: (+25+65 93 R. H. 100 hours) ≤ 0.2db

Apex Offset: 0μ m≤ ≤ 50μ m

Radius of Curvature: 7mm≤ ≤ 25mm

Cable TypeSimplex, Duplex, Fan-Out;

Connector Type: LC, SC, FC, ST, E2000, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc.

Fiber Mode: SM (single mode) G652D, G655, G657,
MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125)

Ningbo Pulian Communication Technology Co.Ltd is a high-tech enterprise under Huier Group which specializing in producing Optical Communication Products for many years.
Our products include as follows.
Fiber optic patch cords
Specialty patch cords
Fiber optic pigtails
Fiber optic connector
Adapters
Attenuators
Splitter/coupler and WDM
Fiber optic patch Panel
Optical Distribution Frames&enclosures
Fiber Optic Closures
Accessories
Equipment and tools
Other than the products listed above, we also manufacture to customers' specifications and requests even with customer supplied raw materials and parts.We supply ODM and OEM services.

Huier Group do foreign trade business for many years in different area, we have own professionally sales team and services teams, our goal is give the best price, high quality products and good services to clients and also solve the all different problem for the clients.

Welcome to contact us for more information and let 's make business easy.
