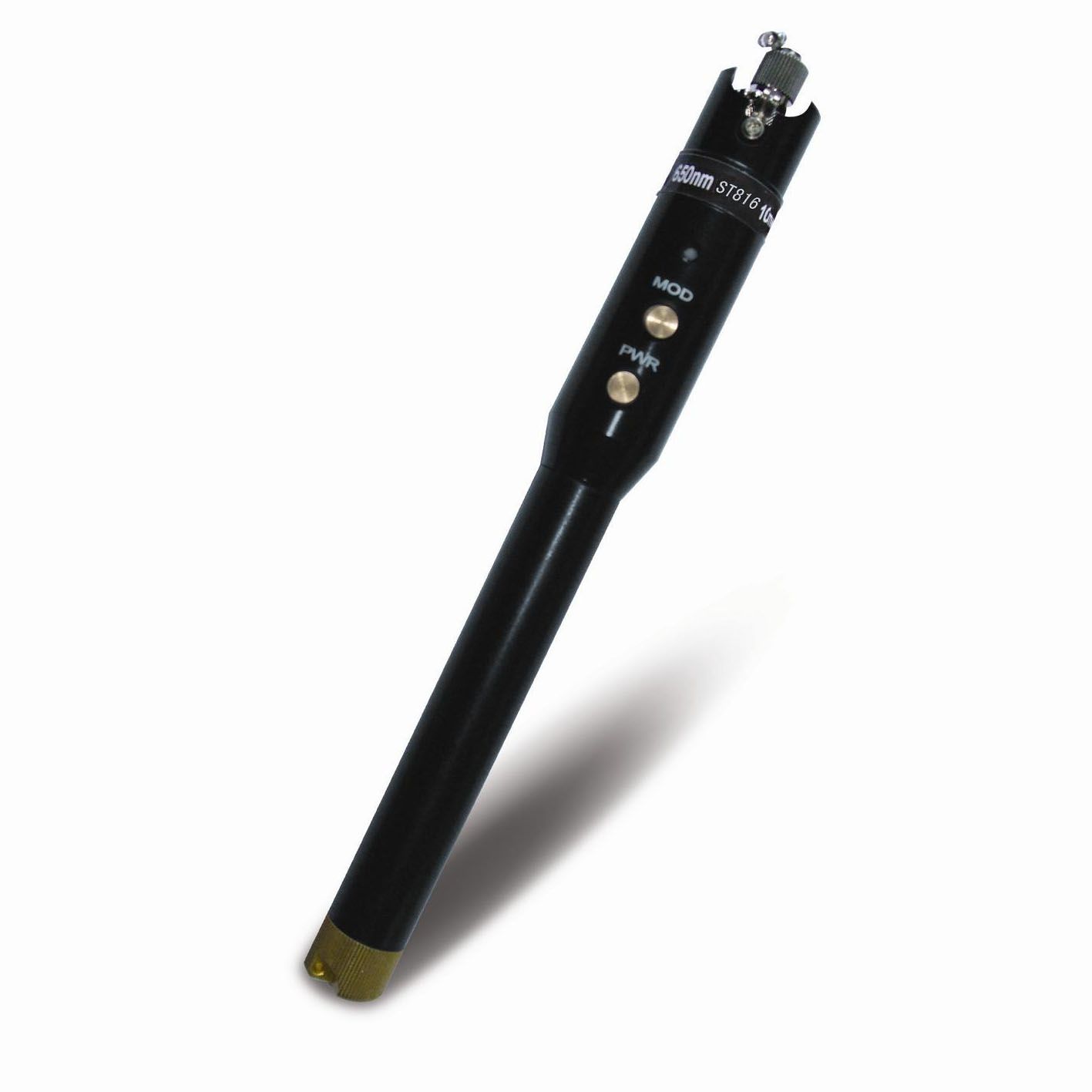

Fiber Optic Visual Fault Locator (VFL) is specially designed for field
personnel who need an efficient and
economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after
installation. Its red laser shines through most yellow-jacketed fibers to help you pinpoint breaks, bends,
faulty connectors, splices and other causes of signal loss. The convenient VFL-25 locates faults visually
by creating a bright red glow at the exact location of the fault on single mode or multimode fibers.Complied with or exceeds Standard:
. RoHS:Free of hazardous substances according to RoHS 2002/95/EG
. IEC 60825-1-2011:Safety of laser products - Part 1: Equipment classification and requirements
Features:
. MQW LD optical source; . Operating mode: CW and MOD;
. FC,SC,ST general interface; . Long inspection distance;
. Steady power output; . Nano technology, multi-ply ESD protection;
. Sturdy and durable shell;
. Pen pattern design, convenient for use and carry.
Function:
Specifications| Parameters | Value |
| Working Wavelength | 650 ± 10 nm |
| Emitter type | Laser |
Output power(mW),
Inspection distance(km) | 10mW/15mW/20mW/25mW/30mW |
| 10KM/15KM/20KM/25KM/30KM |
| Measuring Wavelength | 850~1625nm |
| Connector Working mode | 2.5 mm universal(SC/FC/ST) |
| Operation mode | Pulsed and CW |
General Specifications| Parameters | Value |
| Power supply | 2*1.5V AAA alkaline batteries |
| Working time of batteries | > 15 hours |
| Material of Shell | Al alloy/ stainless steel |
| Weight | About 180g (without batteries) |
| Dimension | 24*170mm(without interface) |
| Operating temperature | -10 to +60 °C |
| Storage temperature | -40 to + 85 °C |
| Relative humidity | 95% |
Ordering Information| Part Number | Description |
| VFL-25-XX | VFL Pocket 650 nm, 2.5 mm, Pulsed & CW, XX- Inspection distance |
