Product Description
PecificationsPLC devices;
Arrayed Waveguide Grating;
Active/Passive array fiber-optic devices;
Micro-electromechanical systems.

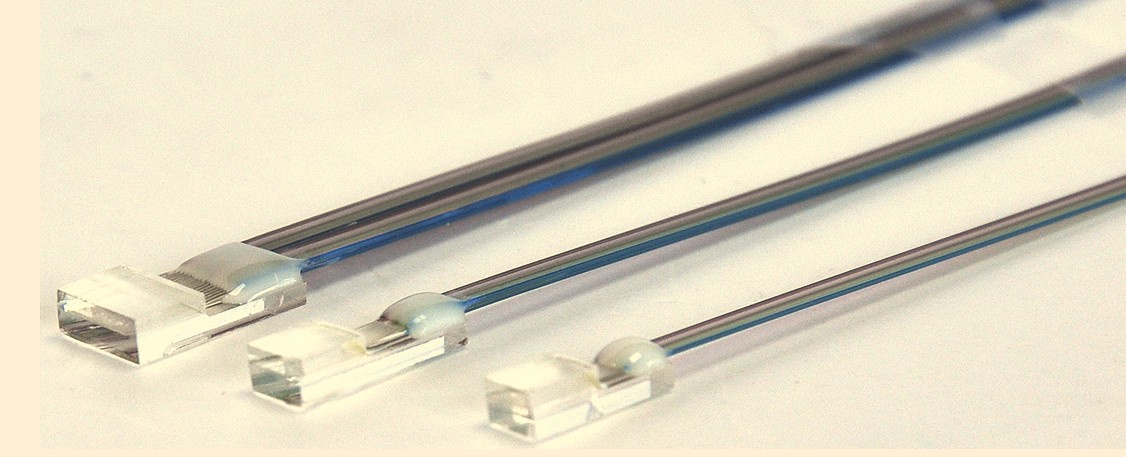

PLC Fiber Array
Description:
Connecting optical waveguide and control direction of light;
Control the couple between the optical waveguides and devices.
Features:
High-precision core pitch, multi-channel, low insertion loss and high reliability;
High-precision polishing angle.
Applications:
PLC devices;
Arrayed Waveguide Grating;
Active/Passive array fiber-optic devices;
Micro-electromechanical systems;
Multi-channel micro-optical modules.
Advantages:
Precise optical positioning the meeting to different demands;
The fiber array plate without stress, high reliability and the fiber without displacement under high temperature;
Angle of end face can be grinded accurately according to different demands;
In line with TelcordiaGR-1209-CORE and GR-1221-CORE.
Performance Specifications:
Parameter
Specification
Material
Quartz glass/heat resistant glass/Si
Number of grooves
Less than or equal to 64
Core Pitch(µ M)
250/127
Pitch Accuracy(µ M)
Less than 0.7
V-Groove Angle
60
End Face
0/98/82 degrees
Specifications may change without notice
