Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Fiber Optical Telecommunication |
Product Description
Product Description

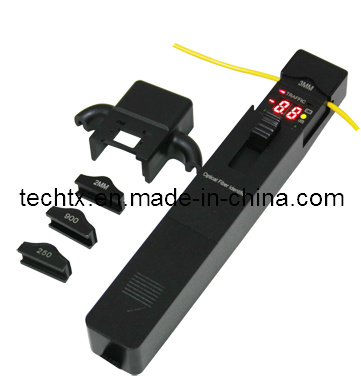

TC-306 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffice is present, the intermittently audible tone is activated.
The TC-306 optical fiber identifier alsor recogize the modnulation like, 270Hz, 1kHz and 2kHz. When they are used to detect the frequency, the continuously audible tone is activated.
There are four adapter heads available: Ø 0.25, Ø 0.9, Ø 2.0 and Ø 3.0. The TC-306 optical fiber identifier is powered by a 9V alkaline battery.
Features
Easy-to-use with "ONE KEY" operation.
Efficiently identifies the traffic direction and frequency tone (270Hz, 1kHz, 2kHz) with audible warning.
Displays the relative core power
More accurate test with Sunshade
Easy-to-replace adaptors
Durable metal housing and quality construction
Lower power indication
Specifications
Type TC-306
Identified Wavelength Range800-1700 nm
Identified Signal TypeCW, 270Hz± 5%, 1kHz± 5%, 2kHz± 5%
Detector TypeØ 1mm InGaAs 2PCS
Adapter TypeØ 0.25 (Applicable for Bare Fiber)
Ø 0.9 (Applicable for Ø 0.9 Cable )
Ø 2.0 (Applicable for Ø 2.0 Cable )
Ø 3.0 (Applicable for Ø 3.0 Cable )
Signal DirectionLeft & Right LED
Singe Direction Test Range (dBm, CW/0.9mm bare fiber)-46~10(1310nm) -50~10(1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber)-50~+10
Signal Frequency Display (Hz)270, 1k, 2k
Frequency Test Range (dBm, Average Value)Ø 0.9, Ø 2.0, Ø 3.0 -30~0 (270Hz, 1kHz) -25~0 (2kHz)
Ø 0.25-25~0 (1kHz, 2kHz) -20~0 (2kHz)
Insertion Loss(dB, Typical Value)0.8 (1310nm) 2.5 (1550nm)
Alkaline Battry(V)9
Operating Temperature()-10-+60
Storage Temperature()-25-+70
Dimension (mm)196X30.5X27
Weight (g)200
Standard Packages
MODELINCLUDES
TC-306 Optical Fiber Identifier, 4PCS adapter heads, Sunshade, Alkaline battery, User Manual, Cotton Stick and Soft Carrying case.
