Huzhou Machine Tool Works Co., Ltd. >> Fiber Reinforced Plastics (SMC) Press Machine (HJ078)

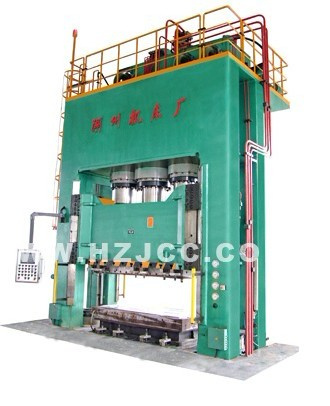

Fiber Reinforced Plastics (SMC) Press Machine (HJ078)

Fiber Reinforced Plastics (SMC) Press Machine (HJ078)
Supplier: Huzhou Machine Tool Works Co., Ltd.
Price: US $ 20000/Set
Min Order: 1/Set
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: HJ078
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

 The product of the Buyer
The HJ078 series is mainly available for pressing glass fiber reinforced plastics such as SMC, BMC, DMC, GMT, LET-D etc. Providing four-column and framed body style with high strength, equipped with stand-alone hydraulic station and electrical cabinet, focused button panel to execute three operating modes of adjust, manual and semi-automatic, two controls of preset stroke and preset pressure with hold-pressure and delay action. Working pressure and stroke can be regulated in the specified range.

 The product of the Buyer
Actions execute quick RAM descent, controllable multistage pre-pressing, pressurizing and micro-mould-open.

It's the ideal solutions for applications of aerospace, ship, automobile, architecture, petrochemical, energy, electronics, culture & spots industries.
Specifications mentioned abo
ve are subject to any change without notice. The products can be tailored as customers' desire or provide a complete set of FRP fabrication technology.

Item
Unit		 YF71-63 YF71-100 YF71-200 YF71-315 YF71-400 YF71-500 YF71-630 YF71-800 YF71-1000 YF71-1250 YF71-1600 YF71-2000 YF71-2500 YF71-3000
Nominal Force kN 630 1000 2000 3150 4000 5000 6300 8000 10000 1250 16000 20000 25000 30000
Prepressing Force kN 250 315 630 1000 1250 2000 2500 2500 3150 3150 5000 6300 800 10000
Mould-open Force kN 125 250 400 630 800 1000 1250 1250 1600 1600 2500 3150 4000 5000
Knock-off Force kN 125 250 400 630 630 1000 1000 1000 1000 1000 1600 2000 2000 2000
Opening Table Size Left-to-right mm 570 720 930 1260 1300 1400 1600/2000 2000 2000 2200 2500/3000 3000 3200 3600
Front-to-back 500 630 900 1200 1300 1400 1600/1800 1600 1600 1600 1600/1600 2000 2500 2500
T-slot   22 22 28 28 36 36 36 36 36 36 42 42 42 42
Daylight mm 800 900 1120 1250 1250 1500 1500/2000 1600 2000 2000 2000/1700 2500 2500 2500
Ram Stroke mm 500 630 710 800 800 900 1100/1400 1200 1400 1400 1500/1200 1500 1500 1500
Knock-off Stroke mm 200 200 200 300 300 300 300 300 300 300 300 300 300 300
Max. system pressure Mpa 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Quick descent speed mm/s 120 120 120 150 180 180 200 200 250 250 250 300 300 300
Pre-pressing Speed mm/s 5~25 5~25 5~20 5~20 5~20 5~20 5~25 5~25 5~25 5~25 5~25 5~25 5~25 5~25
Pressing Speed mm/s 2~10 2~10 2~7 2~7 2~7 2~7 1~5 1~5 1~5 1~5 1~5 1~5 1~5 1~5
Mould-open Speed mm/s 5~30 5~30 5~30 5~30 5~30 5~30 5~30 5~30 5~30 5~30 2~25 2~25 2~25 2~25
Ram Return Speed mm/s 100 100 100 120 140 170 180 180 180 180 180 180 180 180
Slow Knock-off Speed mm/s 5~30 5~30 5~30 5~30 5~30 5~30 5~30 5~30 5~30 5~30 2~30 2~30 2~30 2~30
Quick Ejecting Speed mm/s 80 80 80 80 80 80 60 60 80 80 80 80 100 100
Press-body Type   Four-
column		 Four-
column		 Four-
column		 Four-
column		 Four-
column		 Four-
column		 framed framed framed framed framed framed framed framed

Huzhou Machine Tool Works Co. Ltd. (HMTW) is one of leading hydraulic press manufacturer, established in 1954, specialized in manufacturing a wide variety of hydraulic presses with four-column, frame-welded, C-frame, horizontal-type, a full production line in application to different kind of industries such as aviation and spaceflight, defense, ship build, rail transit, architecture materials, petrochemical, pipes, home appliances, electric motors, plastic and rubber wares etc. Or tailored as customers' desire, supplying tonnage from 1ton to 8000ton.

Loaded with advanced equipments and inspecting instruments, qualified and experienced workers and technicians, HMTW products go through stringent quality control process right from design to the finishing stage certified by ISO9001. Our hydraulic presses deliver the industry-leading performance, accuracy and reliability that have defined HMTW products, and well sold to 30 provinces and autonomous regions all over countries and overseas like Japan, Southeast Asia, West Asia, Middle East, South America and Australia etc.

HMTW, a member of China metalforming machinery standardization committee, has set up a R & D center to offer innovative and most cost-efficient hydraulic presses on the market, obtaining tens of national invention patents.

We at HMTW believe quality, innovation, reliability and price advantage are the key to success in a competitive market. With almost 50 years of experience, we provide our customers an affordable quality product.
