Product Specifications
| Prod Model: |
ONT50D/ONT60D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution (Db): |
0.01 |
| Insertion Loss (Db): |
<2 |
| Attenuation Repetition (Db): |
0.05 |
| Optical Adapter: |
FC(Standard), St,Sc,(Choice) |
| Weight (G): |
450 |
Product Description

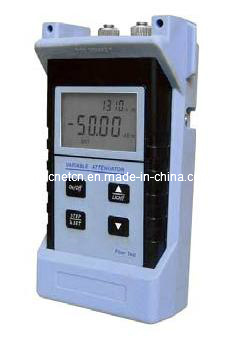

The ONT-FVA serial digital optical attenuator is designed according to the developing optical communications. This handheld fibervariable attenuator enables consistent operation in various manual testing situations, such as BER testing, system testing and acceptance, power meter calibration and verification, optical margin analysis, system loss simulation, as well as field, manufacturing and R&D applications.The ONT-FVA performs just as well in a laboratory environment as it does in the field. Superior specifications make it a good choice for various applications.
Features and Benefits
1) Large screen LCD digital demonstration
2) 0.1dB attenuation resolution
3) Three kind of attenuation step elected 10dB, 1.0dB, 0.1dB
4) Small size, light weight, high reliability
5) Rechargeable battery-powered, night lighting, backlighting for field work
Applications
1) Communication engineering and maintenance
2) CATV engineering and maintenance small size, light weight, high reliability
3) Manufacturing and research of optical components
4) Teaching and experiment in optical communication
| Type | ONT 50D | ONT 60D |
| Wavelengt (nm) | 1310 / 1550 | 1310 / 1550 |
| Attenuation Range(dB) | 0~-50 (without insert loss) | 0~-60 (without insert loss) |
| Accuracy (dB) | ≤±0.1(0~20)
≤±0.2dB (20dB~50dB) | ≤±0.1(0~20)
≤±0.2dB (20dB~60dB) |
| Resolution (dB) | 0.01 |
| Insertion Loss (dB) | <2 |
| Attenuation Repetition (dB) | 0.05 |
| Return loss (dB) | >60(APC) >50(PC) |
| Batteries life(hours) | Working time>10 | (8.4V/Ni-cd battery) |
| Fiber Type | SMF | 9/125um |
| Optical Adapter | FC(standard), ST,SC,(choice) |
| Dimension (mm) | 140x78x38 (without wrap) | 173x90x42 (wrap) |
| Weight (g) | 450 |
Optic Network Technology Co. Ltd. Is one of the high-tech companies, who is specialized in developing, manufacturing, selling and serving telecommunication-level products.
We have several branches, offering a wide range of the products, such as Fiber Optic Splice Closure, Fiber Optic Termination Box, rack mounting ODF, wall mounting ODF, optical cross cabinet as well as passive components, such as patchcord, pigtail, optical splitter, attenuator, DWDM/CWDM/WDM, etc. One of the divisions also covers fiber optic testing equipment such as Optical Power Meter, Optical Light Source, Fiber Identifier, OTDR, Visual Fault Locator, etc.
With the continuing rapid development of Internet, new Internet service which continuously increase needs of bandwidth of Internet access, our company FTTX solutions adopt independent R&D Optical Link Service products. We have taken full consideration of requirement in different operating environment by offering a range so f OLT, ONU, etc. GEPON products for customers various needs. Our FTTX products also include FTTX FOSC with splitter mounted, FTTX box,
MDU splitter terminal, EPON/GEPON broadband data integration cabinet.
Our company have consistent quality, and our QC team monitor the manufacturing process and inspect all the products before shipment. Our products have been exported to North America, South America, East Europe and West Europe, Middle East, Africa and Asia.
"High quality, good service, competitive price, mutual benefit and innovative technology' is our eternal goal. We are confident that we will be your reliable partner in China and Look forward to establishing fruitful business relationship with the customers domestic and overseas
