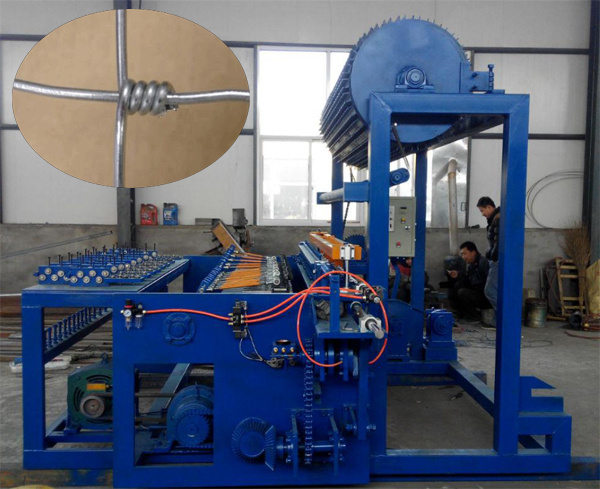

Field Fence/Livestock Fence/ Stock Fence/ Hinge Joint Fence Weaving Machine
Product Specifications
| Prod Model: |
HP-Hinge joint fence machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Name: |
Hinge Joint Fence Weaving Machine |
| Motor: |
5.5kw-11kw |
| Efficiency: |
<45row/Min |
| Twine Diamete: |
1.9-2.5mm |
| Side Wire Diameter: |
2.0-3.5mm |
| Voltage: |
380V |
| Material: |
Steel Wire |
| Application: |
Fence Mesh |
| Hole Shape: |
Square |
Product Description
Field Fence machine's full name is wrap-around grassland fence weaving machine. The field fence has become the top priority fence for sand plain treatment, pasture grass protection, ecological environment treatment, and farming and livestock husbandry.
The field fence machine uses sophisticated computer control, advanced production technology. It has feather novelty, high degree or automation, operation safety and reliability, easy operation, long life and competitive prices etc. Products are neat and beautiful, diverse specification.
Netting width |
1422mm |
1880mm |
2000mm |
2400mm |
motor |
5.5kw |
7.5kw |
7.5kw |
11kw |
Dimension |
2.8*3.2*2.4(m) |
3.3*3.2*2.4(m) |
3.4*3.2*2.4(m) |
3.9*3.4*2.4(m) |
Efficiency |
≤45row/min |
≤45row/min |
≤45row/min |
≤45row/min |
Twine diameter |
1.9-2.5(mm) |
1.9-2.5(mm) |
1.9-2.5(mm) |
1.9-2.5(mm) |
Side wire diameter |
2.0-3.5(mm) |
2.0-3.5(mm) |
2.0-3.5(mm) |
2.0-3.5(mm) |
Voltage |
380v |
380v |
380v |
380v |
Weight |
3.5T |
3.8T |
4.0T |
4.5T |
Wrap number |
11 |
13 |
18 |
23 |
Minimum weft opening number |
2 |
4 |
4 |
6 |
Weft number |
10 |
12 |
17 |
22 |
Productivity |
21600row/day (150m/h) |
TYPE |
1400MM |
Mainframe Dimension |
2.0m×1.8m×2.0m |
Power |
4KM |
Production time |
35/min Example |
stay space is 6in |
|
8 hours output |
2500m |
Weight |
4T |
Wire Diameter Scope |
Top/bottom wire gauge 2.0mm -3.4mm
Line and stay wire gauge 1.8mm-2.5mm |
Can weaving material |
hinge tensile wire,mild wire,black wire.The specification will be highly |
TYPE |
2000MM |
Mainframe Dimension |
2.6m×2.4m×2.0m |
Power |
4KM |
Production time |
35/min (Example stay space is 6in) |
8 hours output |
2500m |
Weight |
5T |
Wire Diameter Scope |
Top/bottom wire gauge 2.0mm -3.4mm
Line and stay wire gauge 1.8mm-2.5mm |
Can weaving material |
hinge tensile wire,mild wire,black wire.The specification will be highly
|
